Clear-Com CS-100 User Manual

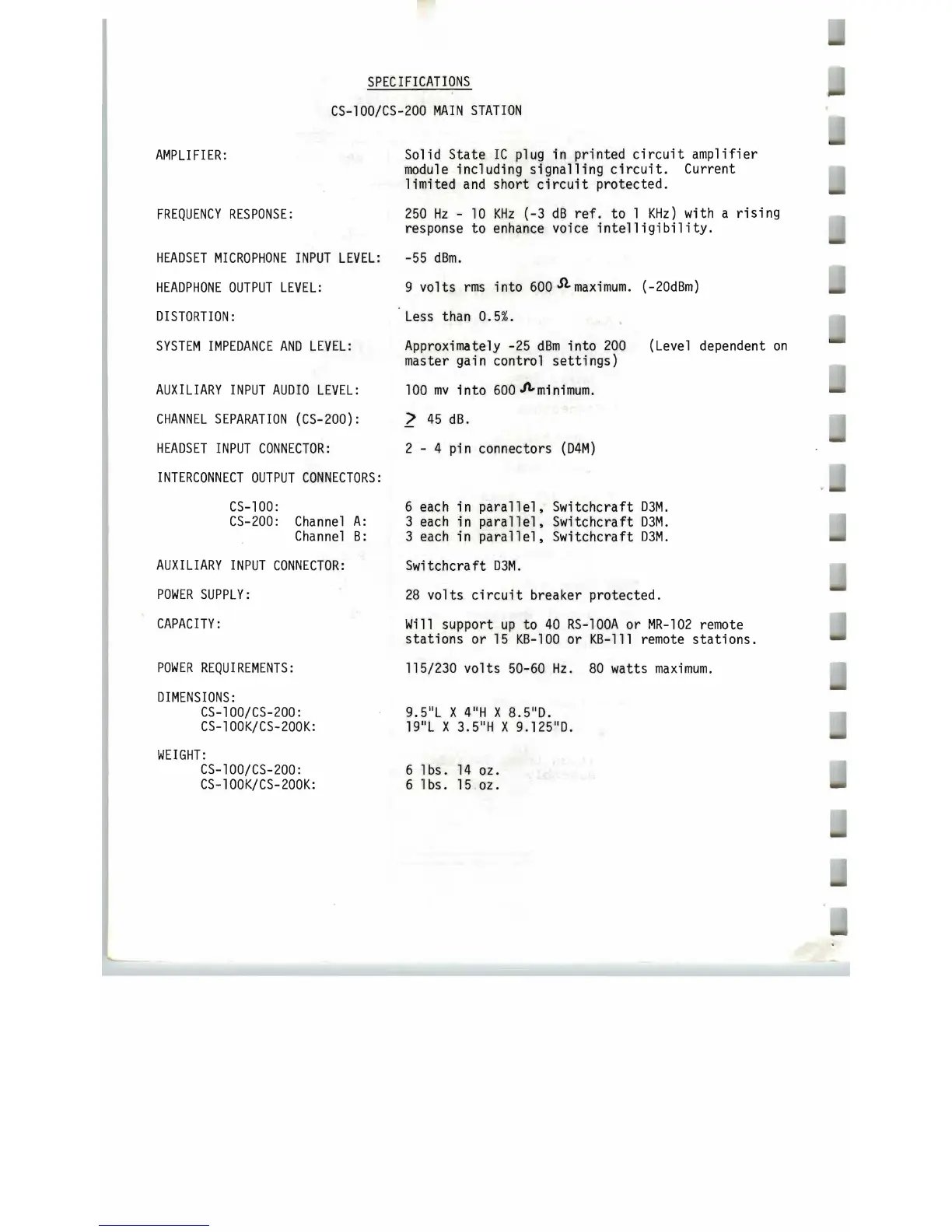

SPECIFICATIONS
CS-100/CS-200 MAIN STATION
AMPLIFIER: Solid State IC plug in printed circuit amplifier
module including signalling circuit. Current
limited
and short circuit protected.
FREQUENCY RESPONSE: 250 Hz - 10 KHz (-3 dB ref. to 1 KHz) with a rising
response to enhance voice intelligibility.
HEADSET MICROPHONE INPUT LEVEL: -55 dBm.
HEADPHONE OUTPUT LEVEL: 9 volts rms into 600 Jl.maximum. (-20dBm)
DISTORTION: Less than 0.5%.
SYSTEM IMPEDANCE AND LEVEL:
Approximately -25 dBm into 200 (Level dependent on
master gain control settings)
AUXILIARY INPUT AUDIO LEVEL: 100 mv into 600 Jl. mi nimum.
CHANNEL SEPARATION (CS-200):
"> 45 dB.
HEADSET INPUT CONNECTOR: 2 - 4 pin connectors (D4M)
INTERCONNECT OUTPUT CONNECTORS:
CS-100: 6 each in parallel, Switchcraft D3M.
CS-200:
Channel A:
3 each in parallel, Switchcraft D3M.
Channel B:
3 each in parallel, Switchcraft D3M.
AUXILIARY INPUT CONNECTOR:
Switchcraft D3M.
POWER SUPPLY:
28 volts circuit breaker protected.
CAPACITY:
Will support up to 40 RS-100A or MR-102 remote
stations or 15 KB-100 or KB-lll remote stations.
POWER REQUIREMENTS:
115/230 volts 50-60 Hz. 80 watts maximum.
DIMENSIONS:
CS-100/CS-200: 9.5"L X 4"H X 8.5"D.
CS-100K/CS-200K: 19"L X 3.5"H X 9.125"D.
WEIGHT:
CS-100/CS-200:
6 1 bs. 14 oz.
CS-100K/CS-200K:
6 1 bs.
15 oz.

Clear-Com CS-100 Specifications

General

frequency response	250 Hz - 10 KHz (-3 dB ref. to 1 KHz)
headset microphone input level	-55 dBm
headphone output level	9 volts rms into 600 Jl
distortion	Less than 0.5%
system impedance and level	Approximately -25 dBm into 200
auxiliary input audio level	100 mv into 600 Jl
channel separation (CS-200)	> 45 dB
headset input connector	2 - 4 pin connectors (D4M)
interconnect output connectors CS-100	6 each in parallel, Switchcraft D3M
interconnect output connectors CS-200 Channel A	3 each in parallel, Switchcraft D3M
interconnect output connectors CS-200 Channel B	3 each in parallel, Switchcraft D3M
auxiliary input connector	Switchcraft D3M
power supply	28 volts circuit breaker protected
power requirements	115/230 volts 50-60 Hz. 80 watts maximum
capacity	Will support up to 40 RS-100A or MR-102 remote stations or 15 KB-100 or KB-lll remote stations

Weight and Dimensions

dimensions CS-100/CS-200	9.5"L X 4"H X 8.5"D
dimensions CS-100K/CS-200K	19"L X 3.5"H X 9.125"D
weight CS-100/CS-200	6 lbs. 14 oz.
weight CS-100K/CS-200K	6 lbs. 15 oz.
