2.1.5. CLEAR-COM HEADSETS AND HANDSETS
Clear-Com has three standard headsets available, all with boom-
mounted, noise-cancelling microphones. The CC-240 is a double-muff
headset, ,
and the CC-75 is a single-muff headset, both with boom-activated
mics.
The PH-7 is a double muff headset which has wider frequency response,
greater isolation from ambient noise, and sturdier physical construction
than the
CC-240, and no mic switch in the boom. All units have fie1d-
replaceable cords.
The HS-6 telephone-style handset is interchangeable
with the
above headsets.
All remote
stations can drive 2 headsets with only a slight reduction
in

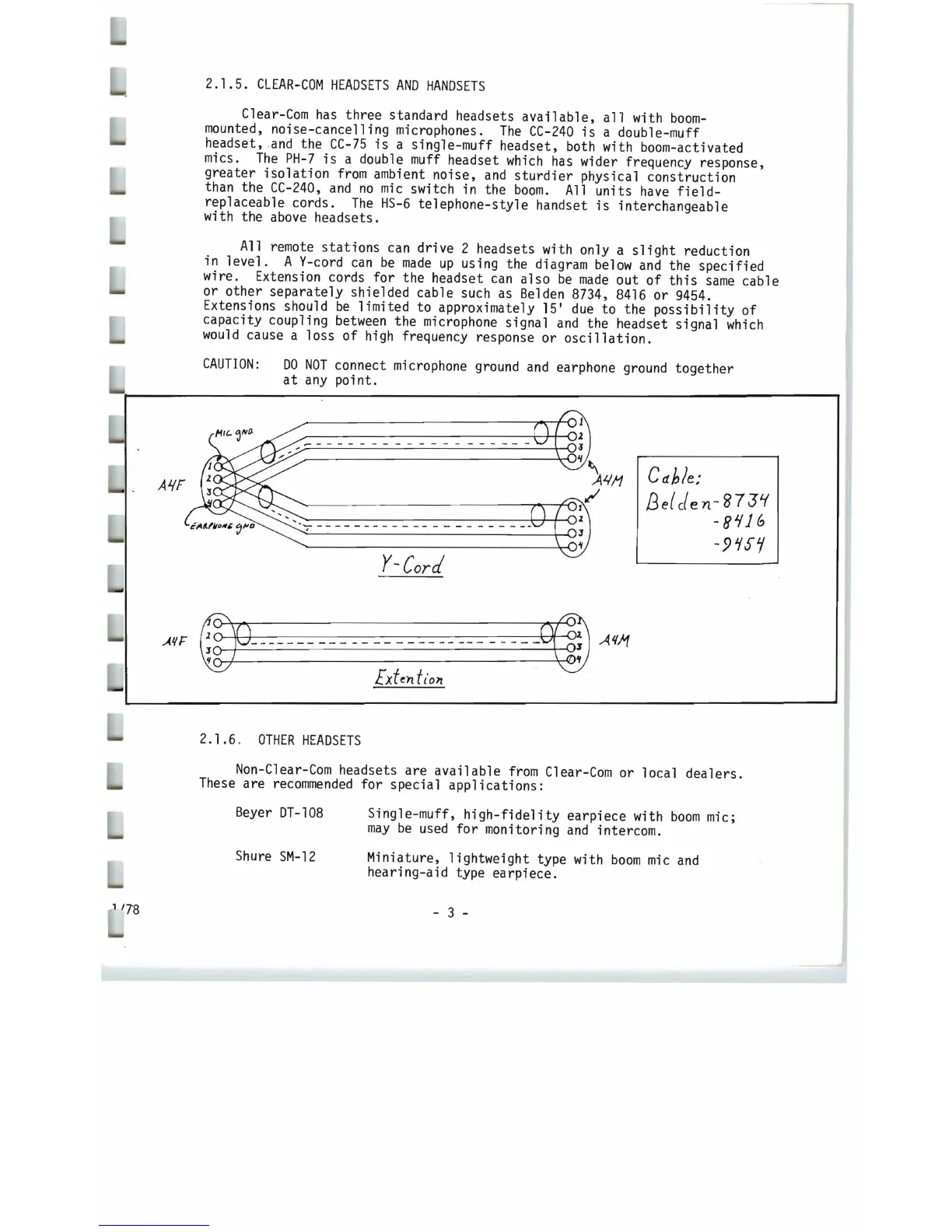

level. A V-cord can be made up using the diagram below and the specified
wire. Extension cords for the headset
can also be made out of this same cable
or other separately shielded cable such as Belden 8734,
8416 or 9454.
Extensions should
be limited to approximately 15' due to the possibility of
capacity coupling
between the microphone signal and the headset signal which
would cause a loss of high frequency response or oscillation.
CAUTION: DO NOT connect microphone ground and earphone ground together
at any poi nt.
A/.{F
I
.. -
C dble:
B e{ c{ en - g7 31.(
-8Jflb
-9~S1
Y-Cord
2.1.6 . OTHER HEADSETS
Non-C1ear-Com headsets are available from Clear-Com or local dealers.
These are recommended for special applications:
Beyer DT-108
Single-muff, high-fidelity earpiece with boom mic;
may be used for monitoring and intercom.
Shure
SM-12
Miniature, lightweight type with
boom mic and
hearing-aid type earpiece.
, '78
- 3 -

Clear-Com CS-100 Specifications

General

frequency response	250 Hz - 10 KHz (-3 dB ref. to 1 KHz)
headset microphone input level	-55 dBm
headphone output level	9 volts rms into 600 Jl
distortion	Less than 0.5%
system impedance and level	Approximately -25 dBm into 200
auxiliary input audio level	100 mv into 600 Jl
channel separation (CS-200)	> 45 dB
headset input connector	2 - 4 pin connectors (D4M)
interconnect output connectors CS-100	6 each in parallel, Switchcraft D3M
interconnect output connectors CS-200 Channel A	3 each in parallel, Switchcraft D3M
interconnect output connectors CS-200 Channel B	3 each in parallel, Switchcraft D3M
auxiliary input connector	Switchcraft D3M
power supply	28 volts circuit breaker protected
power requirements	115/230 volts 50-60 Hz. 80 watts maximum
capacity	Will support up to 40 RS-100A or MR-102 remote stations or 15 KB-100 or KB-lll remote stations

Weight and Dimensions

dimensions CS-100/CS-200	9.5"L X 4"H X 8.5"D
dimensions CS-100K/CS-200K	19"L X 3.5"H X 9.125"D
weight CS-100/CS-200	6 lbs. 14 oz.
weight CS-100K/CS-200K	6 lbs. 15 oz.
