SB-704 MAIN STATION
2-6

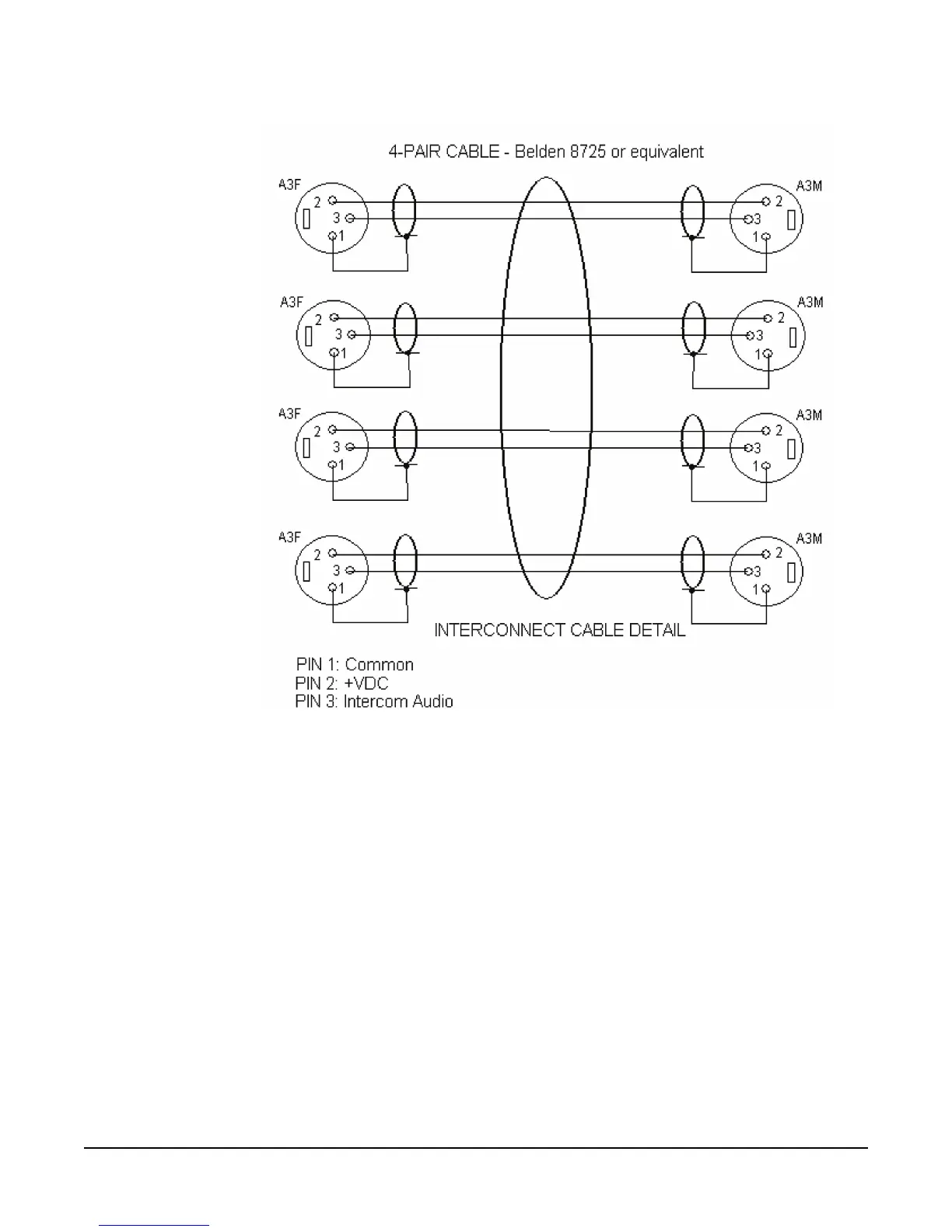

Figure 2-4: Interconnect Cable Detail
Note: The remote stations connected to each channel are powered from
the intercom cable for that channel. In the case above, a short on
any one line will only take that channel down.
