BOILER BOOK CFC-E ENGINEERING DATA
19

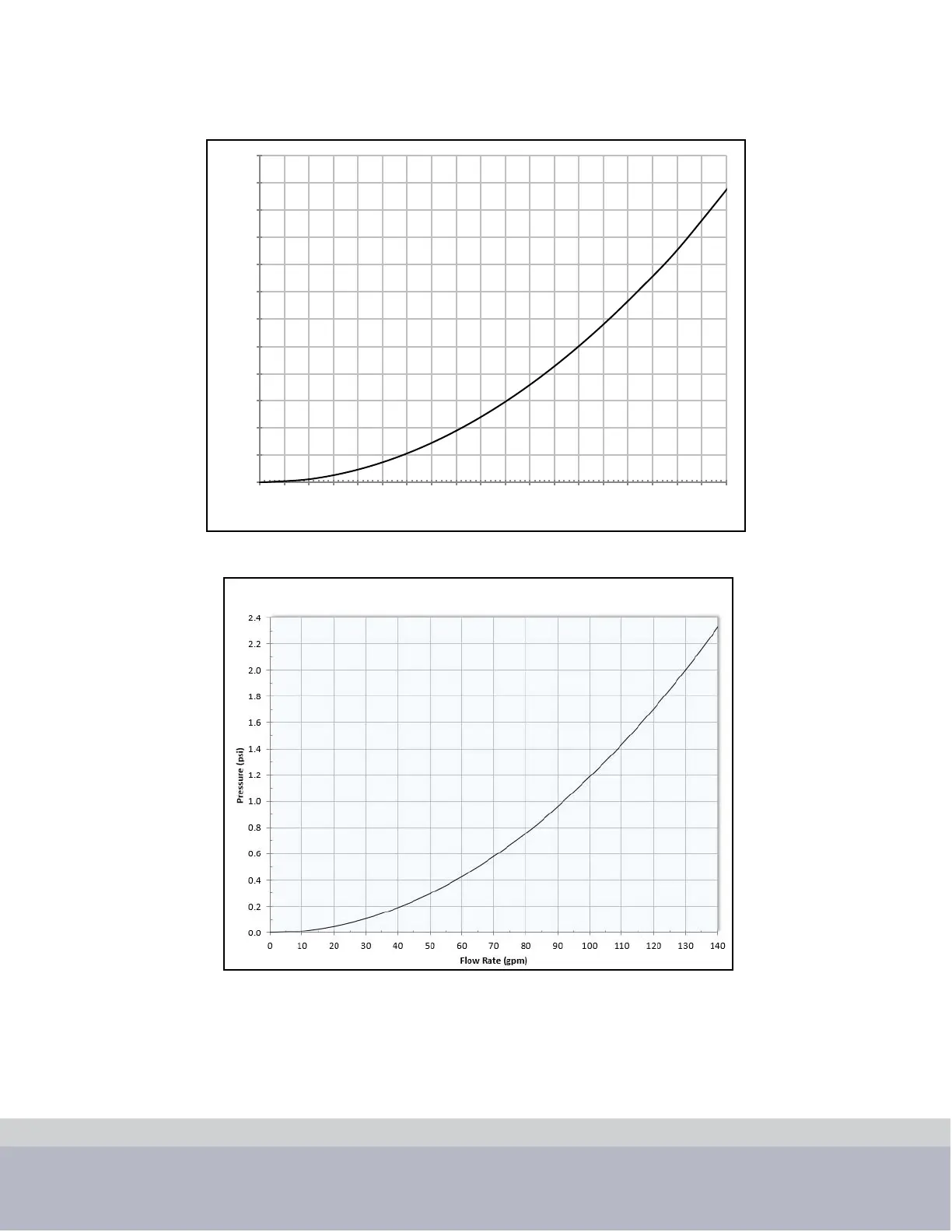

Figure 10. Waterside Pressure Drop CFC-E 500
Figure 11. Waterside Pressure Drop CFC-E 750
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95
Pressure (psi)
Flow Rate (gpm)
