BOILER BOOK CFC-E ENGINEERING DATA
33

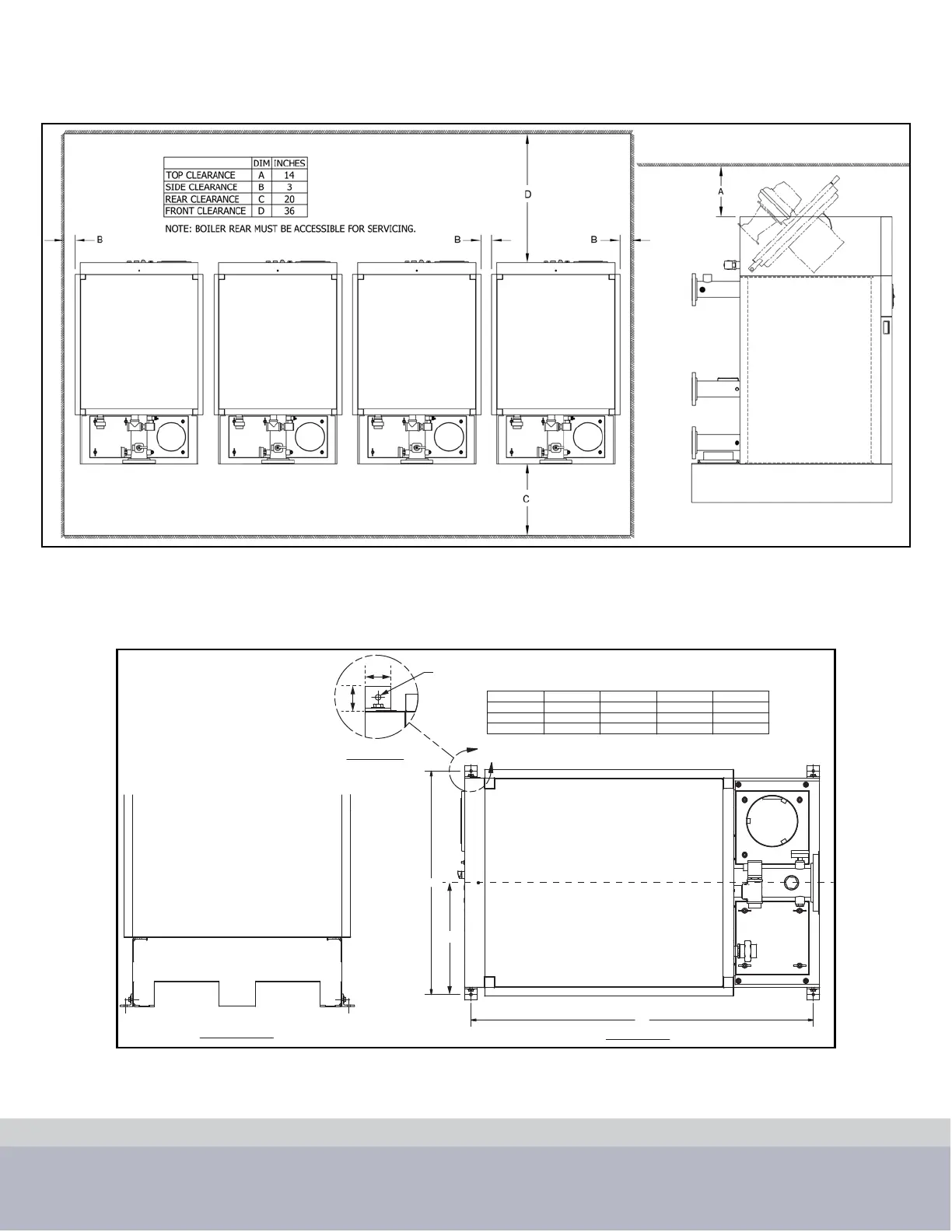

Figure 25. Model CFC-E Minimum Room Clearance Dimensions
Seismic Legs
Seismic mounting details shown below.
Figure 26. CFC-E Seismic Mounting
FRONT VIEW
PLAN VIEW
DETAIL A
A
"B"
"A"
"C"
"C"
Q
7/16" HOLE
DIM.
750 1000 1500
2000
"A"
34.35" 34.35" 35.25" 35.25"
17.625"17.625"17.175”17.175”
"B" 47.4" 47.4"
54" 54"
2”
2”
