CleaverBrooks FLX Series - Page 42

.25" FROM
NOZZLE TIP
TO REAR FACE
OF DIFFUSER
1.89" REAR FACE
OF DIFFUSER TO
FRONT FACE OF
AIR BAFFLE
.25" NOZZLE TIP
TO OUTER EDGE OF
ELECTRODE WIRES
7/16" FROM CENTER
OF OIL NOZZLE TIP
TO BOTTOM EDGE
OF ELECTRODE WIRES
5/32" BETWEEN
INNER EDGES OF
ELECTRODE WIRES
656-10215-000
Chapter 2 Profire V Burner
2-30 750-177

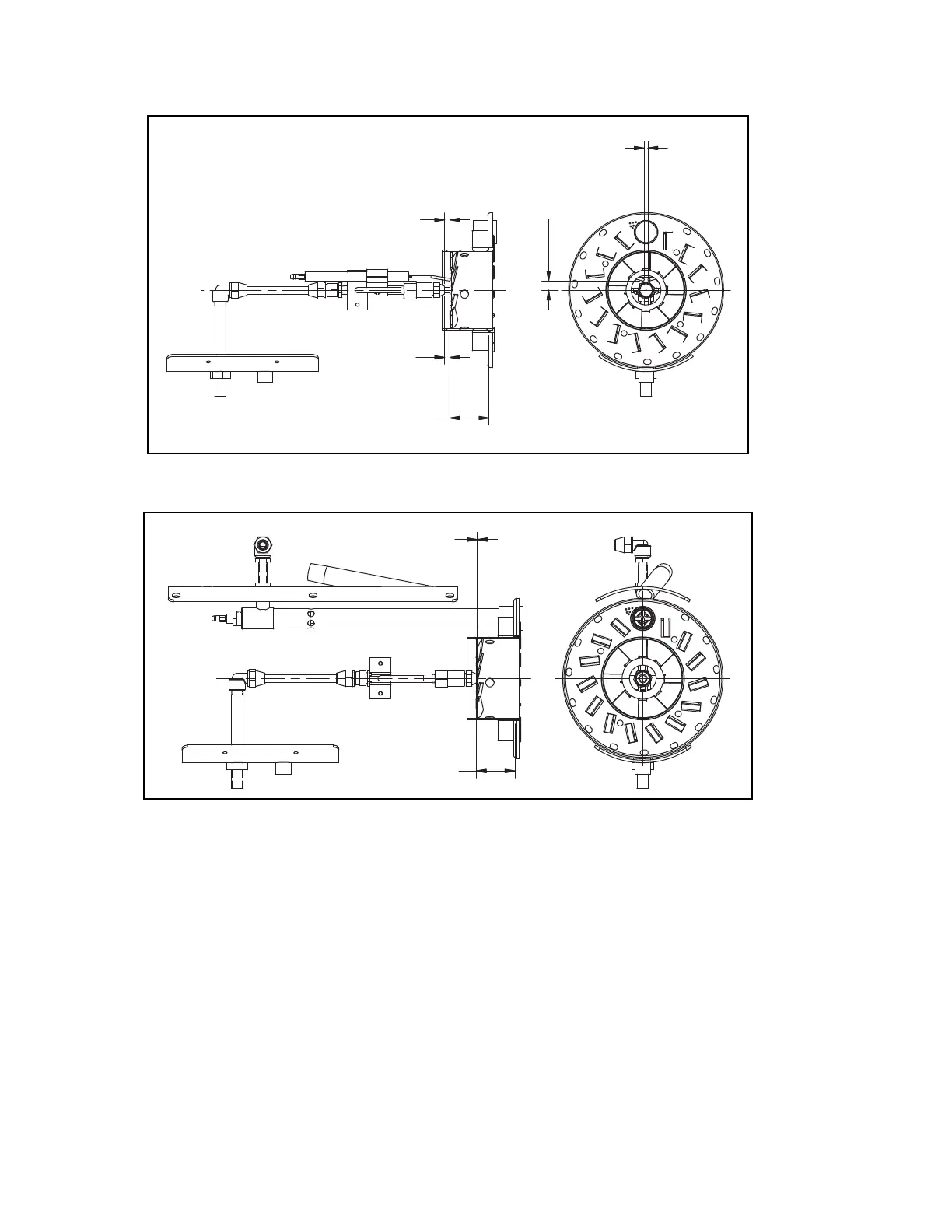

Figure 2-16: Drawer Assembly for (VL) Oil Only (V13-34) - Watertube
1.83" REAR FACE
OF DIFFUSER TO
FRONT FACE OF
AIR BAFFLE
.00" FROM
NOZZLE TIP
TO FRONT FACE
OF DIFFUSER
656-10215-000
Figure 2-17: Drawer Assembly for (VLG) Gas/Oil (V13-34) - Watertube
