Clemens Technologies CL861.000000 right User Manual

RADIUS SL PLUS 03.2019 en 36
10.4 Control valve

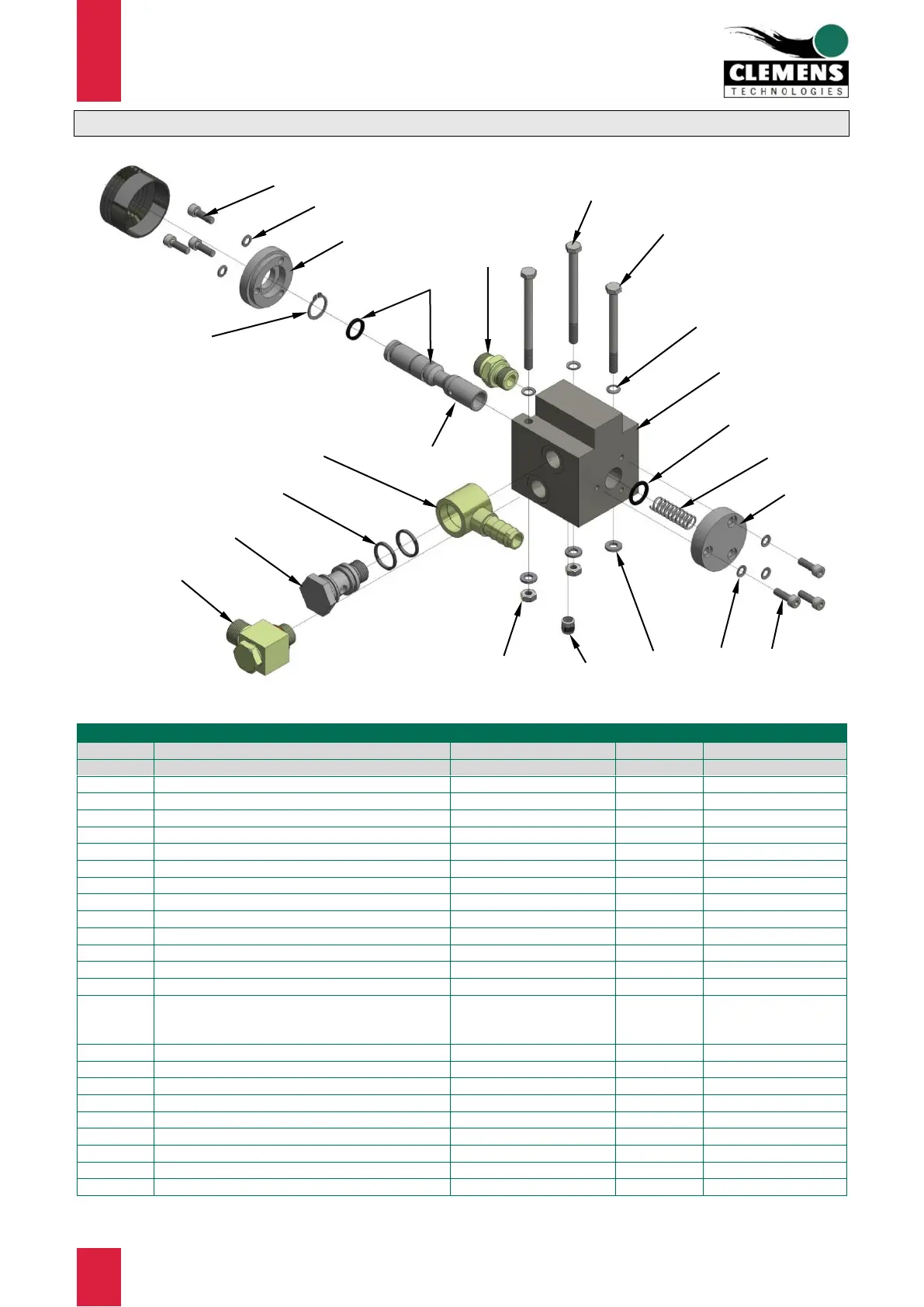

Figure 41 Spare parts Control valve
Item no.
Specification
Remark
Quantity
Order no.
Control valve rhs complete
1
CL856.030000
Control valve lhs complete
1
CL856.130000
1
Housing rhs
1
CL856.030001
1
Housing lhs
1
CL856.130001
2
Control piston
1
CL856.030002
3
Flange
1
CL856.030003
4
Cover
1
CL856.030004
5
Pressure spring
1
CW009.005300
6
Hollow screw
1
CW011.500600
7
Hose stem, return oil
1
CW011.600800
8
Lock washer
6
CW520.002500
9
Lock washer
3
CW520.002600
10
Angular connection
1
CW730.015800
11
Straight screwed socket
1
CW730.018100
12
Bellow
1
CW780.007000
13
Bore seal with O-ring
Replacing this seal requires mandatory
compliance with section 7.5.1 !
1
CW780.012600
14
Expander
1
CW780.050100
15
Circlip ring
1
047116s
16
Socket head cap screw
6
091205016
17
Hexagon screw
1
093106070
18
Hexagon screw
2
093106080
19
Hexagon nut
2
093406
20
Washer
3
144006
21
O-Ring
1
OR01620
22
O-Ring
2
OR01820
1,1
13
3
4
11
10
5
18
17
16
19
20
9
8
15
21
14
7
22
6
16
8
2
