10.26 Hydraulic installation for Lateral angle adjustment

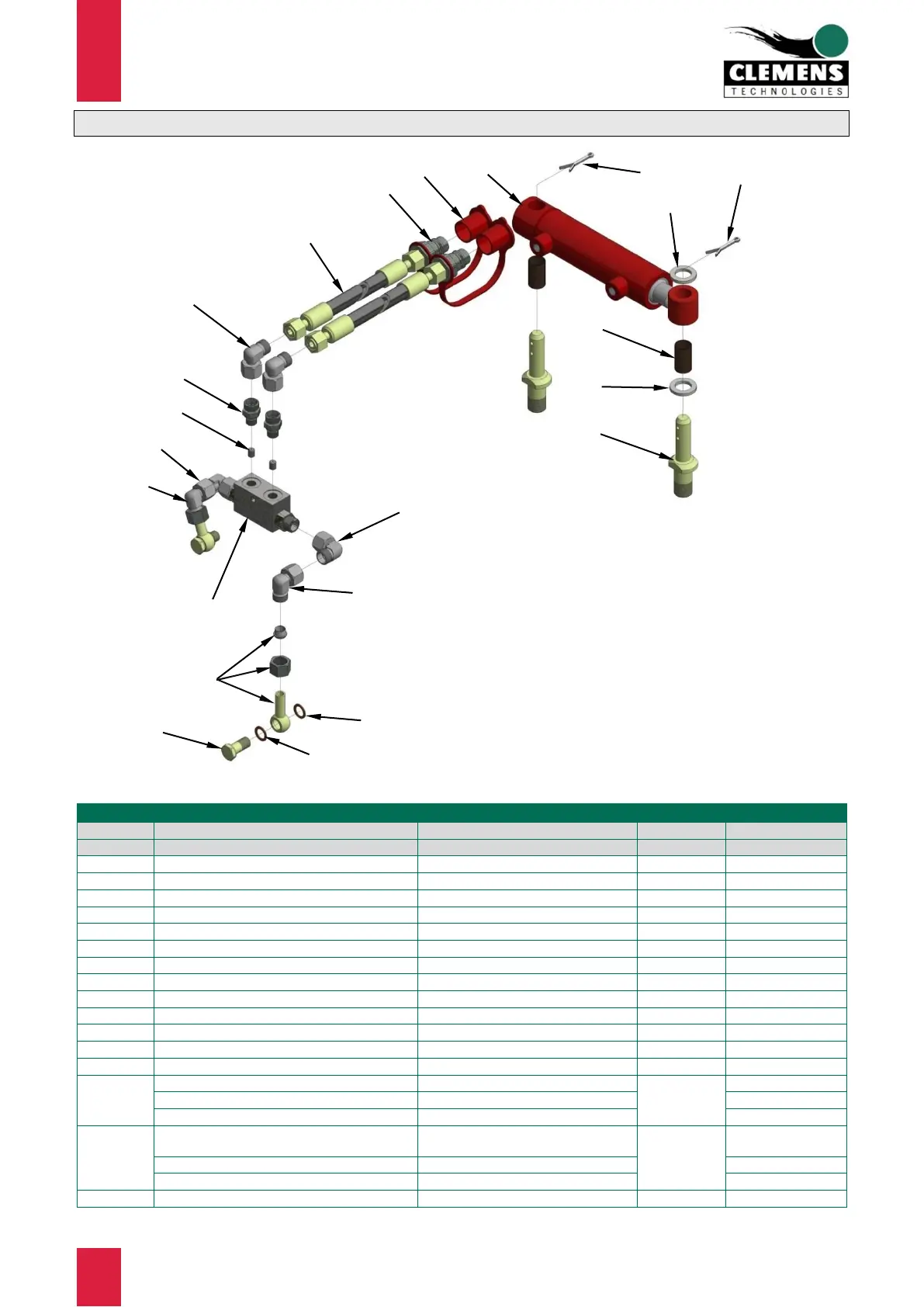

Figure 64 Spare parts Hydraulic installation for Lateral angle adjustment
Item no.
Specification
Remark
Quantity
Order no.
Hydraulic installation rhs
complete
CF866.361000
Hydraulic installation lhs
complete
CF866.371000
1
Straight fitting
2
CF866.361101
2
Restricting orifice
2
CF866.361102
3
Hydraulic cylinder (stroke 64 mm (2.5”))
incl. item no. 3.1
1
CA895.610000
3.1
Slide bushing
available separately
2
CA895.610003
4
Bolt
2
CW003.014301
5
Hydraulic hose with pressed fittings
overall length 2500 mm (98.4”)
2
CW700.023000
6
Angular fitting, adjustable
6
CW730.010400
7
Check valve double
Complete incl. items 7.1,7.2,7.3
1
CW760.056300
7.1
Banjo fitting w. union nut + cutting ring
Included in item no. 7
2
CW770.001301
7.2
Copper washer
Included in item no. 7
4
CW780.000400
7.3
Hollow screw
Included in item no. 7
2
CW730.030500
8
Split pin
2
009440036
9
Washer
2
144020
10
Coupling plug SVK
standard
2
CW720.000200
Coupling sleeve SVK
e.g. for Fendt
CW720.003600
Coupling plug flat
e.g. for Holder
CW720.000700
11
Dust cover for plug SVK
standard
2
CW720.005900
(CW720.006000)
Dust cover for sleeve SVK
e.g. for Fendt
CW720.007900
Dust cover for plug flat
e.g. for Holder
CW720.005200
12
Cable tie green
not shown
3
CW830.061200
5
4
3.1
8
6
9
1
3
7
6
2
6
8
9
11
10
6
6
7.2
7.1
7.2
7.3
