Clemens Technologies CL861.000000 right User Manual

RADIUS SL PLUS 03.2019 en 82

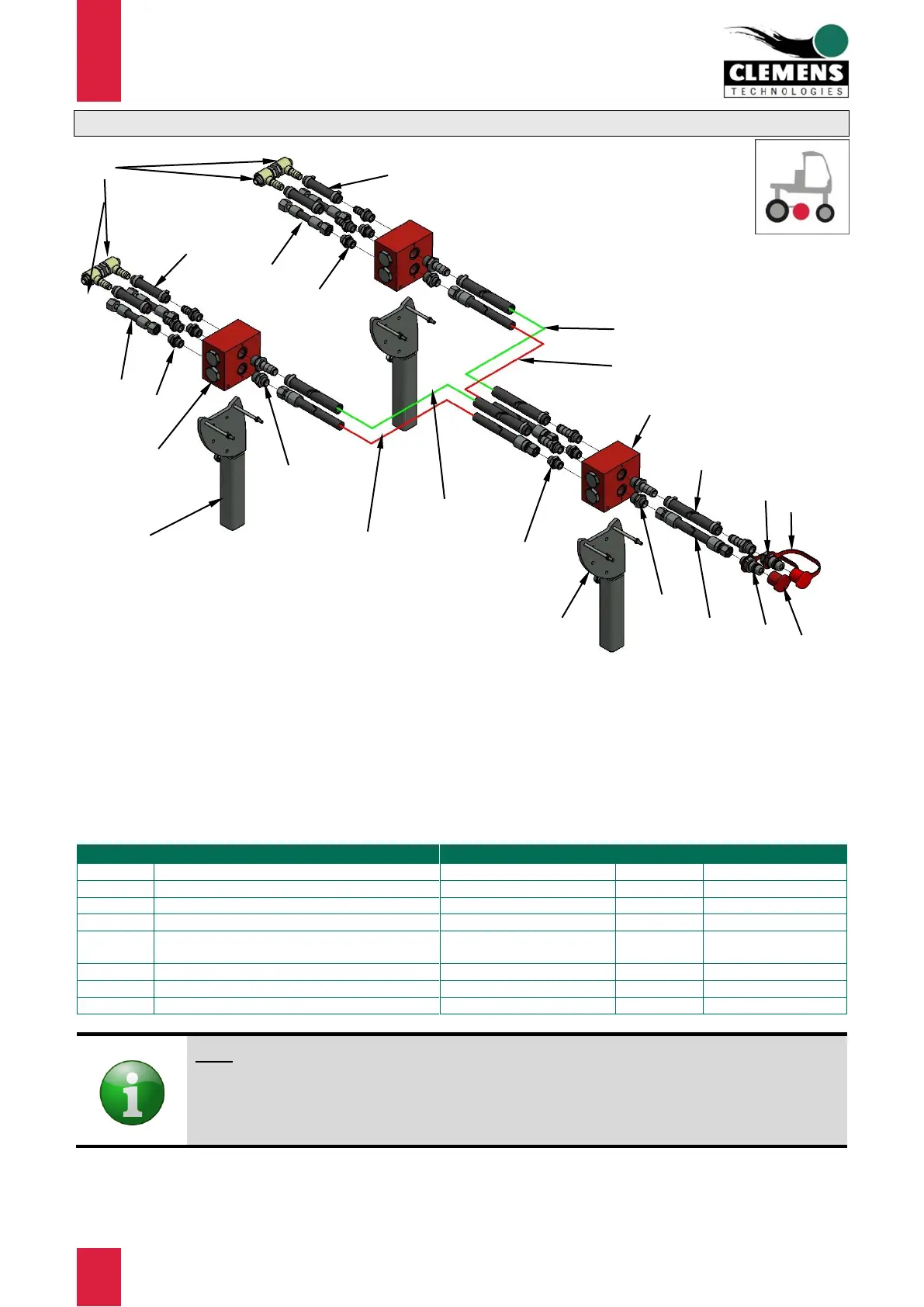

10.37 Hosing variant 2 pairs of RADIUS on high clearance tractor
A = Pressure hose
B = Pressure hose RADIUS
C = Return oil hose RADIUS
D = Return oil hose
E = Connecting return oil hose
Figure 75 Hosing variant 2 pairs of RADIUS on high clearance tractor
Item no.
Specification
Remark
Quantity
Order no.
1
Mounting bar for flow divider
3
CB856.085000
2
Flow divider / Return oil manifold
for details see 10.28
3
CA895.381000
3
Coupling plug SVK
1
CW720.000200
4
Coupling plug SVK
1
CW720.001000
5
Dust cover for coupling plug SVK
1
CW720.005900
(CW720.006000)
6
Dust cover
1
CW720.006000
7
Straight screw socket
3
CW730.008600
8
Straight screw socket
6
CW730.008800
Note:
The connection marked * is located on the RADIUS itself. The hose must be pressed at this
connection. (see 10.4, items 6, 7 and 22)
The hydraulic hose B is also connected to the RADIUS itself. (see 10.4, item 10)
B
C
2
*
5
4
8
2
1
7
8
6
3
1
7
8
A
B
C
D
A
E
A
E
