Clemens Technologies CL861.000000 right User Manual

RADIUS SL PLUS 03.2019 en 37
10.5 Control unit

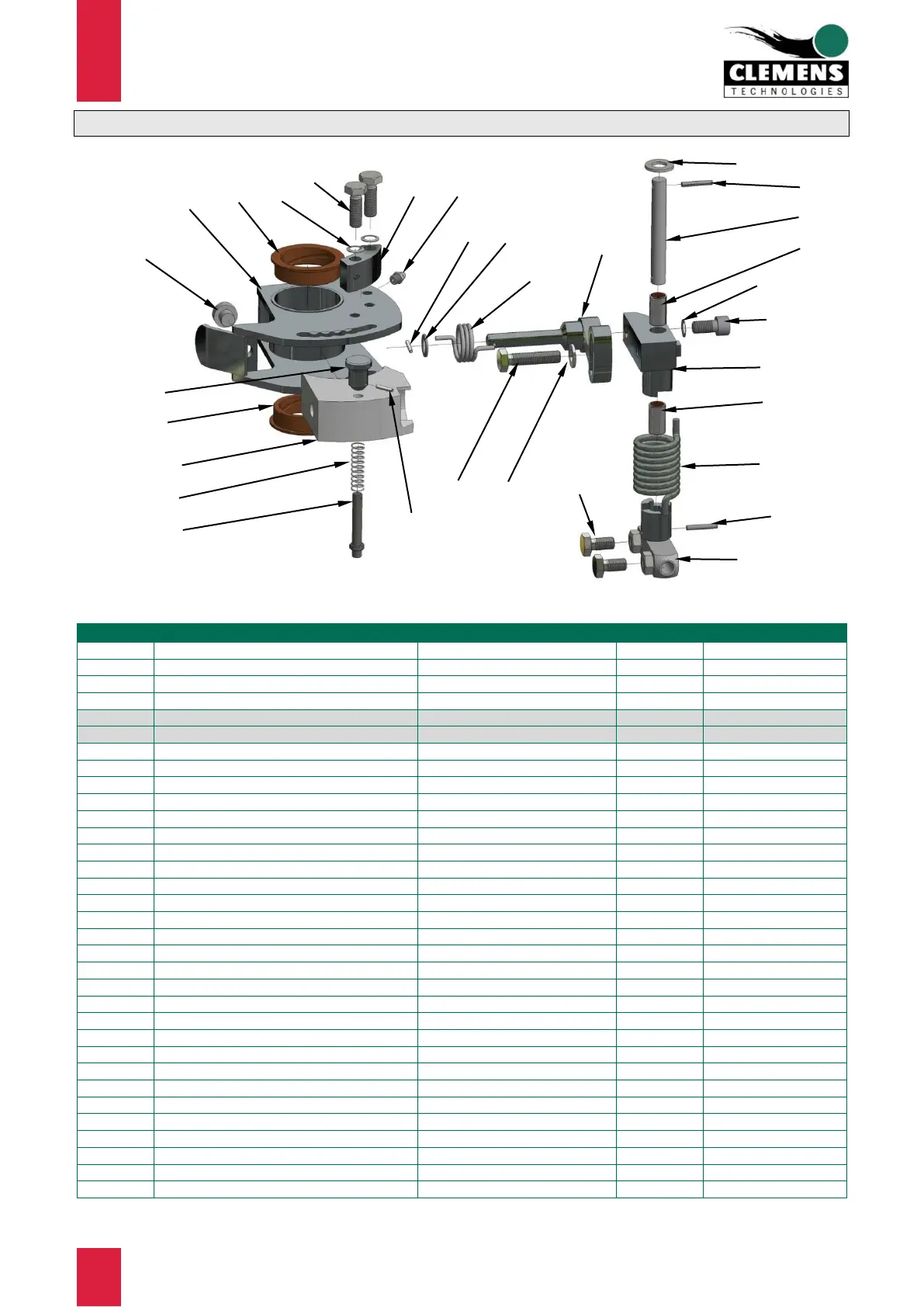

Figure 42 Spare parts Control unit
Item no.
Specification
Remark
Quantity
Order no.
1
Sensor housing rhs
1
CL860.041000
1
Sensor housing lhs
1
CL860.141000
2
Mounting pin rhs
1
CL861.042000
2
Mounting pin lhs
1
CL861.142000
3
Sensor rod-mounting pin rhs
complete incl. items 3.2 – 3.8
1
CL861.043000
3
Sensor rod-mounting pin lhs
complete incl. items 3.2 – 3.8
1
CL861.143000
3.2
Spring bolt
1
CL862.010009
3.3
Washer
1
012513
3.4
Clamping sleeve
2
148104026
3.5
Leg spring rhs
1
CW009.043000
3.5
Leg spring lhs
1
CW009.043100
3.6
Hexagon head screw
2
093310020
3.7
Slide bushing
2
CW550.010900
3.8
Sensor rod holder rhs
1
CL861.043200
3.8
Sensor rod holder lhs
1
CL861.143200
4
Sensor rod seat aluminum rhs
1
CG856.040001
4
Sensor rod seat aluminum lhs
CG856.140001
5
Stop block
1
CL860.040001
6
Centering bolt
1
CA856.040002
7
Lock bolt
1
CL856.040003
8
Pressure section
1
CL856.040005
9
Collar bushing
2
CW004.051300
10
Pressure spring
1
CW009.004000
11
Leg spring rhs
1
CW009.040100
11
Leg spring lhs
1
CW009.040200
12
Lock washer
3
CW520.002800
13
Conical lubricating nipple
1
CW570.000100
14
Washer
1
012510
15
Socket head cap screw
1
091210020
16
Hexagon head screw
2
093310030
17
Hexagon head screw
1
093310045
18
Adjusting washer
1
0988131915
19
Clamping sleeve
2
1481030162A
3.2
8
6
9
4,4
10
7
3.7
12
15
3
3.7
3.5,3.5
3.4
3.8,3.8
19
17
14
3.6
1,1
9
12
16
5
13
19
18
11,11
2,2
3.3
3.4
