1.Introduction
Mainboard Overview - Top (Connectors)

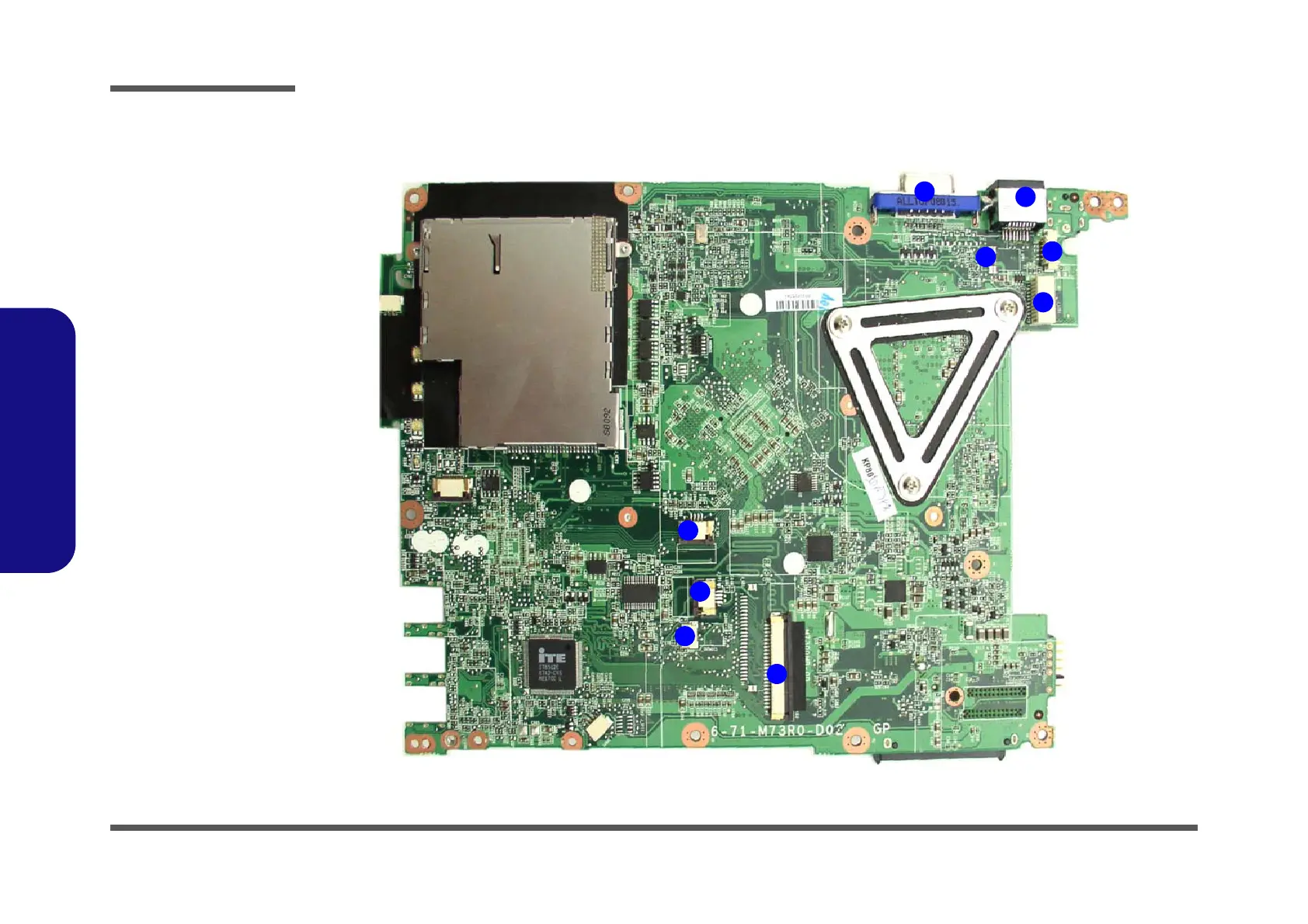

Figure 9
Mainboard Top
Connectors
1. External Monitor
Port
2. RJ-45 LAN Jack
3. CCD Cable
Connector
4. LCD Cable
Connector
5. Speaker Cable
Connector
6. Touch Pad Cable
Connector
7. Fingerprint Cable
Connector
8. Internal
Microphone Cable
Connector
9. Keyboard Cable
Connector
8
9
3
1
2
4
5
6
7
