Clevo M730SR - Removing the Wireless LAN Module

Disassembly
2 - 12 Removing the Wireless LAN Module
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5) and the CPU/RAM bay cover (page 2 - 8).
2. The Wireless LAN module will be visible at point on the mainboard.
3. Carefully disconnect cable , then remove the screw from the module socket.
4. The Wireless LAN module will pop-up.
5. Lift the Wireless LAN module
(Figure d) up and off the computer.

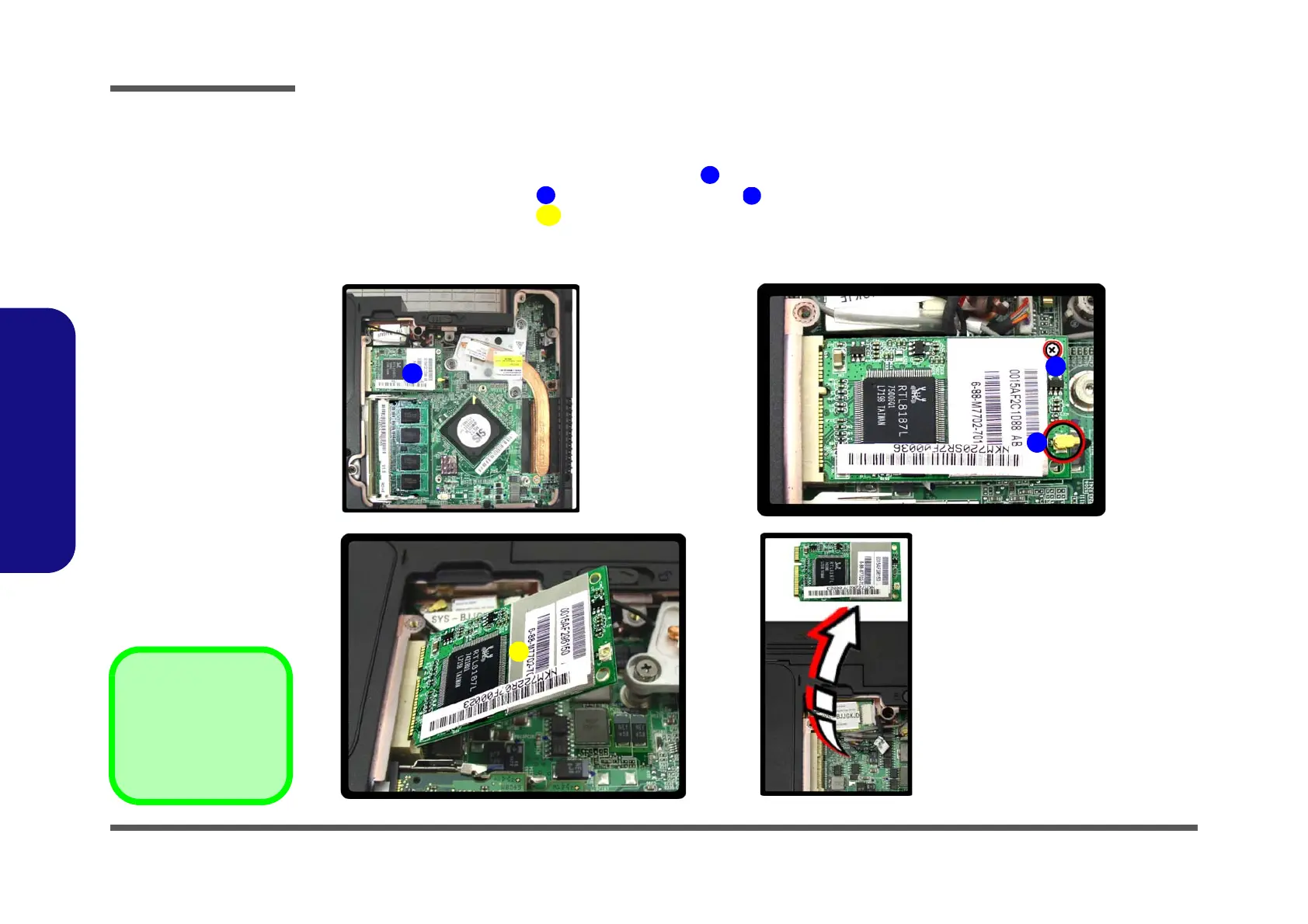

Figure 8
Wireless LAN
Module Removal
a. Remove the cover and
Iocate the heat sink.
b. Disconnect the cable
and remove the screw.
c. The WLAN module will
pop up.
d. Remove the WLAN
module.
Note: Make sure you
reconnect the antenna
cable to the “Main”
socket (Figure b).
1
2
3
4
1
2
c.
a.
4
3
b.
d.

4. WLAN Module
•1 Screw
