Clevo M730SR - Removing the Modem Module

Disassembly
2 - 16 Removing the Modem Module
2.Disassembly
Removing the Modem Module
1. Turn off the computer, remove the battery (page 2 - 5) and the CPU/RAM bay cover (page 2 - 8) and the CPU heat
sink (page 2 - 10) and the Wireless LAN (page 2 - 12) and the optical device (page 2 - 14) and the keyboard (page
2 - 15).
2. Disconnect the connectors
- from under the keyboard and turn it over.
3. Remove screws
- from the rear of the computer.
4. Remove the screws
- from the bottom case and disconnect the connectors - on the mainboard.
5. Carefully lift up the top case
off the computer.

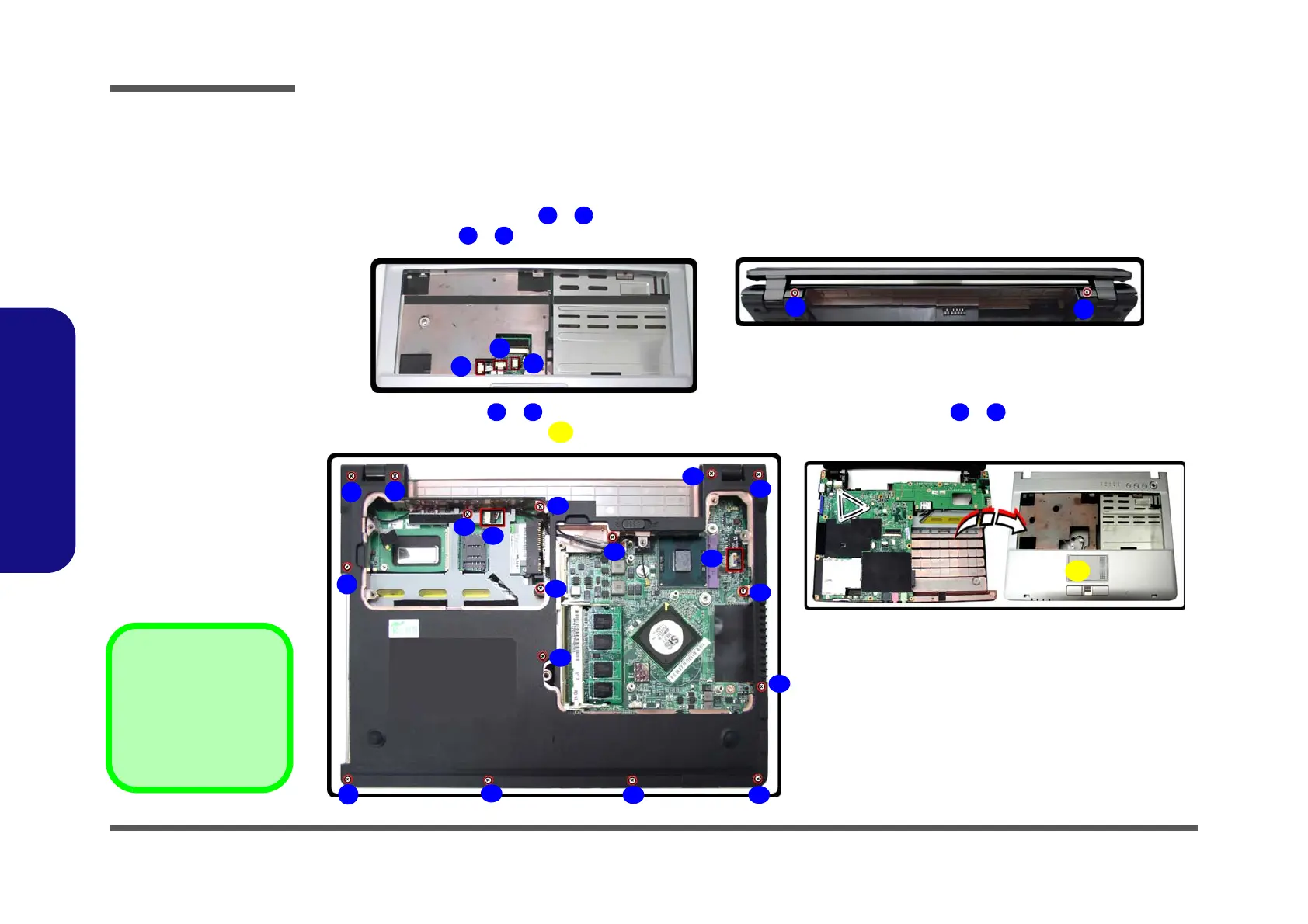

Figure 12
Modem Removal
a. Disconnect the connec-
tors from under the key-
board.
b. Remove the screws.
c. Remove the screws and
disconnect the connec-
tors from the main-
board.
d. Remove the top case.

24. Top Case
• 18 Screws
1
3
4
5
a.
b.
1
3
2
5
4
6
21
22
23
24
c.
9
7
6
8
10
11
13
12
14
15
16
23
17
20
18
19
21
22
d.
24
