Clevo M730SR - Removing the Processor

Disassembly
2 - 10 Removing the Processor
2.Disassembly
Removing the Processor
1. Turn off the computer, and remove the battery (page 2 - 5) and the CPU/RAM bay cover (page 2 - 8).
2. The CPU heat sink will be visible at point on the mainboard.
3. Remove screws
- from the heat sink in the order indicated.
4. Carefully lift up the heat sink (Figure c) off the computer.
1
2
4
5
Figure 6
Processor Removal

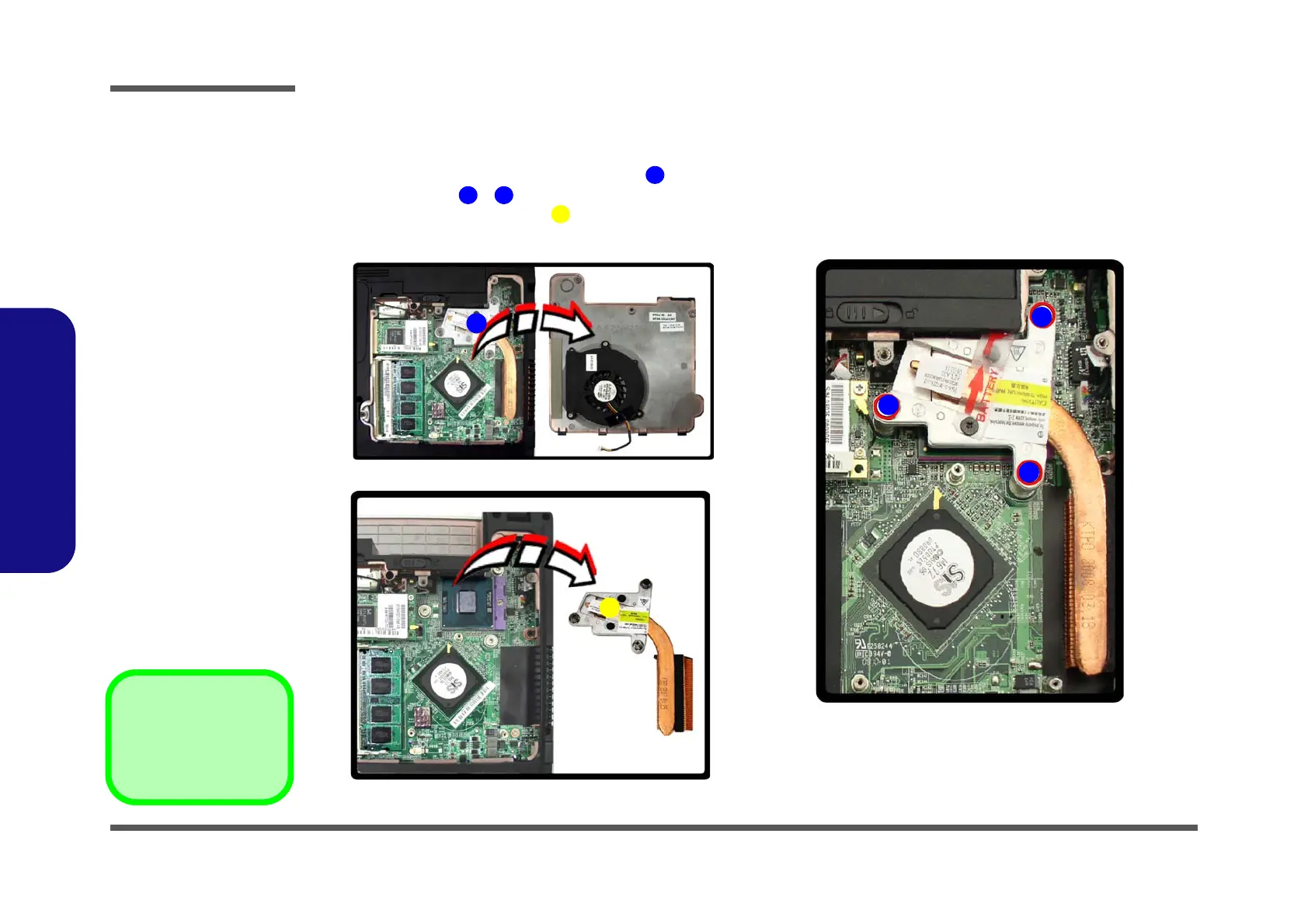

a. Remove the cover and
Iocate the heat sink.
b. Remove the 3 screws in
the order indicated.
c. Remove the heat sink.

5. Heat Sink
•3 Screws
b.
5
1
4
a.
c.
3
2
