Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly
4. Carefully grip the mylar cover tab and slide the hard disk in the direction of arrow.
5. Lift the hard disk up
(Figure d) in the direction of arrow.
6. Remove the screws
- and separate the mylar cover from the hard disk .
7. Reverse the process to install any new hard disk.
4

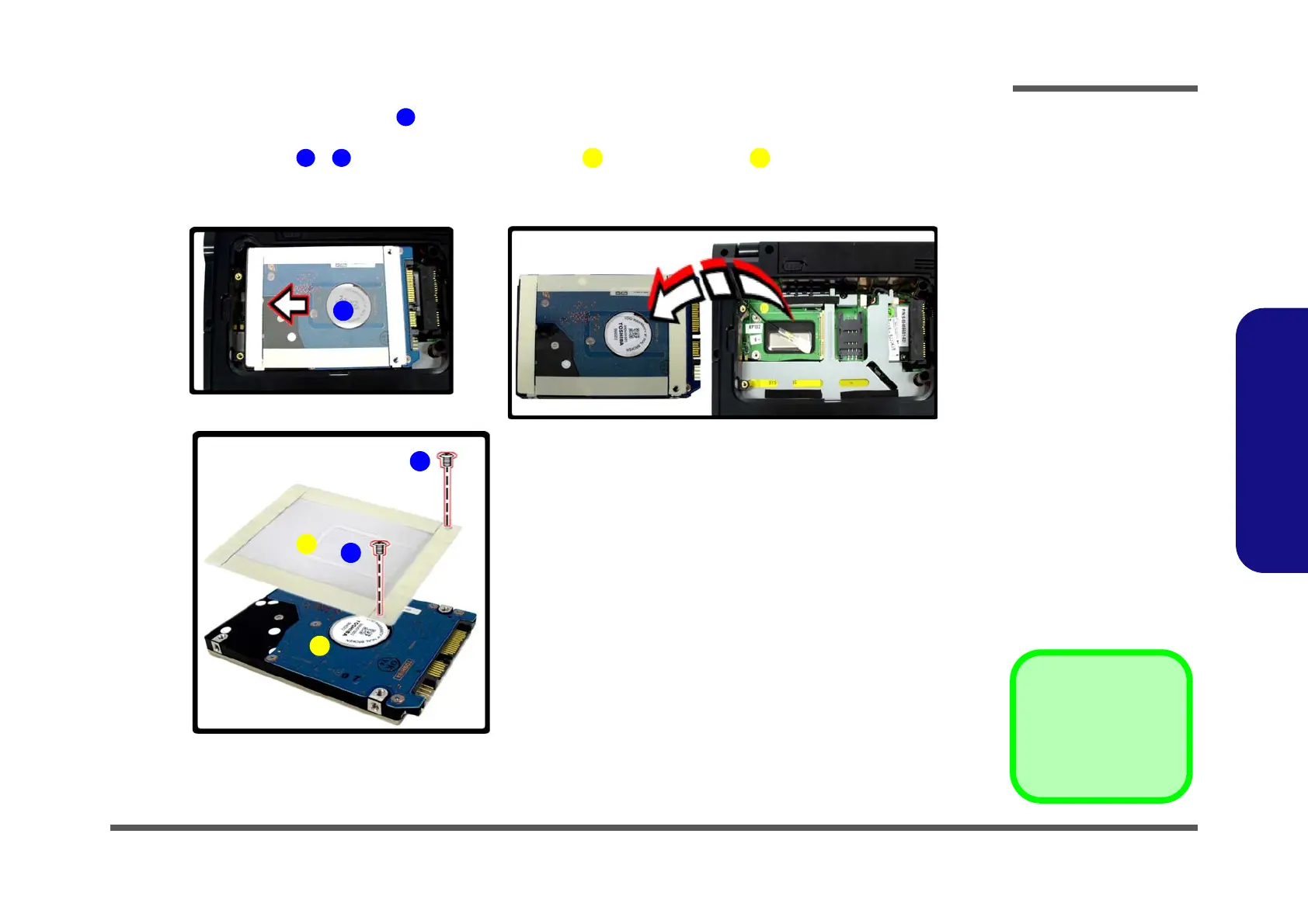

Figure 3
HDD Assembly
Removal Sequence
c. Slide the HDD in the di-
rection of the arrow.
d. Lift the HDD out of the
bay.
e. Remove the screws and
separate the mylar cover
from the HDD.
5
6
6
7
6
8

7. Mylar Cover
8. HDD
•2 Screws
c.
d.
4
e.
6
5
8
7
