Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction

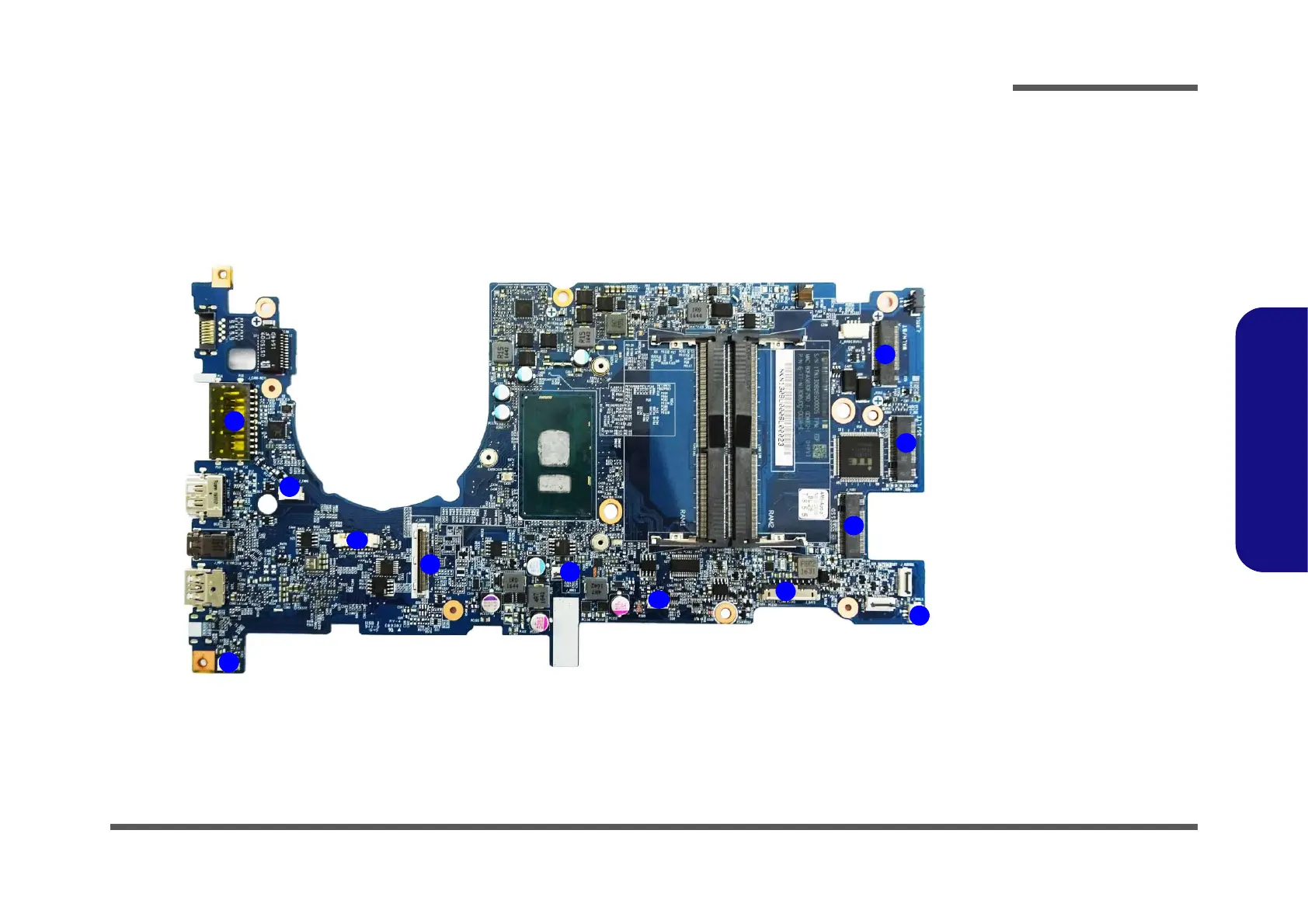

Mainboard Overview - Bottom (Connectors)
Figure 10
Mainboard Bottom
Connectors
1. Multi-in-1 Card
Reader
2. Fan Connector
3. LCD Cable
Connector
4. Speaker Connector
5. HDD Connector
6. Battery Connector
7. M.2 Card
Connector (SSD)
8. 3G/4G Connector
9. WLAN Connector
10.CCD Connector
11. Touchpad
Connector
10
9
1
2
4
6
7
3
5
8
4
11
