TBT USB TYPE C
NOTE:
DPSRC NOT IS USE:STUFF
DPSRC IS USE:NO STUFF.
XTAL
+/-0.5%
AR/PPS COMMON FLASH
CPU PCIE RX
CPU PCIE TX
DDI1(MUX)
IF SOME OF GPIOs ARE NOT IN USE FOLLOW TABLE BELOW:
GPIO | TERMINATION | Power Rail
----------------------------------------------------
GPIO_0 | 10K PU | VCC3V3_LC
GPIO_1 | 10K PU | VCC3V3_LC
GPIO_2 | 100K PD |
GPIO_3 | 100k PD |
GPIO_4 | 10K PU | VCC3V3_LC
GPIO_5 | 10K PU | VCC3V3_LC
GPIO_6 | 100K PD |
GPIO_7 | 100K PD |
GPIO_8 | 100K PD |
POC_GPIO_0 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_1 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_2 | 100K PD |
POC_GPIO_3 | 100K PD |
POC_GPIO_4 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_5 | 10K PU | VCC3V3_TBT_SX
POC_GPIO_6 | 100K PD |
DEBUG PINs:
PIN | TERMINATION
-------------------------------
MONDC_SVR | GND
MONDC_DPSNK_0 | GND
MONDC_DPSNK_1 | GND
MONDC_DPSRC | GND
MONDC_CIO_0 | GND
MONDC_CIO_1 | GND
TEST_EDM | GND
FUSE_VQPS_64 | GND
FUSE_VQPS_128 | GND
ATEST_P/N | FLOATING
USB2_ATEST | FLOATING
PCIE_ATEST | FLOATING
NOTE:
SNK0_DDC_data/clk ?connect to 2k PU only if SRC0 is connected and support HDMI (a.i HDMI or DP++ connector). Otherwise can be 100k PD.
SNK1_DDC_data ?connect to 100k PD. If SRC0 support HDMI, connect as SNK0_CFG1 to GPU and/or appropriate AUX/DDC demux control
SNK1_DDC_clk ?connect to 100k PD.
Add
ሶ
ሶሶ
ሶዥ
ዥዥ
ዥሽ
ሽሽ
ሽ
,6/11 Tim
Add
ሶ
ሶሶ
ሶዥ
ዥዥ
ዥሽ
ሽሽ
ሽ
,6/11 Tim
6-03-06340-061
C1 Stepping
0815 del U13
D02A
PDA Bug
D02A
PDA Bug
D02A BCN 20161221
OUT2_HPD
DPSNK1_HPD
TBT_FORCE_PWR
TBT_TMU_CLK_OUT
TBTA_I2C_INT
DPSNK0_ML0_N
DPSNK0_ML0_P
DPSNK0_ML1_N
DPSNK0_ML1_P
DPSNK0_ML2_N
DPSNK0_ML2_P
DPSNK0_ML3_P
DPSNK0_ML3_N
DPSNK0_AUX_N
DPSNK0_AUX_P
TBT_EE_W P_N
TBT_I2C_SDA
TBT_SRC_HPD
TBT_I2C_SCL
TBT_EE_W P_N
TBT_TMU_CLK_OUT
TBT_CIO_PLUG_EVENT_N
TBT_CLKREQ_N
BUF_PLT_RST#_AR
TBT_CLKREQ_N
TBT_SRC_CFG1
TBT_RSENSE
TBT_RBIAS
TBTA_LSTX
PB_USB2_RBIAS
TBTA_LSRX
TBT_XTAL_25_OUT
TBT_XTAL_25_IN
TBT_TDI
TBT_TDO
TBT_TMS
TBT_TEST_PW G
TBT_TEST_EN
TBT_XTAL_25_OUT
TBT_XTAL_25_IN
TBTA_HPD
TBT_I2C_SCL
TBT_I2C_SDA
PCIe_RBIAS
PET0_P
PET0_N
TBT_BATLOW _N
TBT_FORCE_PWR
RTD3_USB_PW R_EN
RTD3_CIO_PWR_EN
TBT_SLP_S3_N
TBTA_I2C_INT
PET1_N
PET1_P
PET2_P
PET2_N
PET3_N
PET3_P
DPSRC_RBIASTBT_SNK0_DDC_CLK
TBT_SNK0_DDC_DATA
TBT_SNK1_DDC_CLK
SINK0_CFG1
TBT_SNK1_DDC_CLK
DPSNK_RBIAS
TBTA_AUX_N
TBTA_AUX_P
PA_USB2_RBIAS
TBTA_TX1_P
TBTA_TX1_N
TBTA_TX0_P
TBTA_TX0_N
TBT_BATLOW _N
TBT_SLP_S3_N
TBT_CIO_PLUG_EVENT_N
TBTB_I2C_INT
TBTB_LSTX
TBTB_LSRX
TBTB_HPD
TBT_HDMI_DDC_DATA
TBT_HDMI_DDC_CLK
TBT_SRC_CFG1
SINK0_CFG1
TBT_EE_CS_N
TBT_EE_DO
TBT_EE_DI
TBT_EE_CLK
TBT_HOLD_N
TBT_TCK
TBTB_I2C_INT
TBTB_LSTX
TBTB_LSRX
TBTB_HPD
TBT_SRC_HPD
TBT_SNK0_DDC_DATA
TBT_SNK0_DDC_CLK
TBT_HDMI_DDC_CLK
TBT_HDMI_DDC_DATA
DPSNK1_HPD
BUF_PLT_RST#_AR
RTD3_CIO_PWR_EN
RTD3_USB_PW R_EN
TBT_SLP_S3_N
TBT_PCIe_WAKE_N
VCC3V3_FLASH
VCC3V3_SX_SYS
VCC3V3_LC
VCC3V3_SX_SYS
VCC3V3_SX_SYS
VCC3V3_SX_SYS
VCC3V3_SX_SYS20,21
VCC3V3_FLASH21
VCC3V3_LC20
PCIE_WAKE# 6,24
TBT_FRC_PWR 7
TBT_RESET_N 21
TBT_EE_DO 21
BUF_PLT_RST# 6,24,26,27,28,30
SUSB# 6,15,26,30,32,35,37
PCIE_RXP1_TBT 4
PCIE_RXN1_TBT 4
PCIE_RXP2_TBT 4
PCIE_RXN2_TBT 4
PCIE_RXP3_TBT 4
PCIE_RXN3_TBT 4
PCIE_RXP4_TBT 4
PCIE_RXN4_TBT 4
TBTA_HD2CA_1_P23
TBTA_HD2CA_1_N23
TBTA_HD2CA_0_P23
TBTA_HD2CA_0_N23
TBTA_LSTX21
TBT_EE_DI 21
TBT_EE_CS_N 21
TBT_EE_CLK 21
OUT2_HPD17
TBTA_I2C_INT 21
TBCIO_PLUG_EVENT 7
TBTA_USB2_D_P21
TBTA_USB2_D_N21
TBTA_DPSRC_AUX_P21
TBTA_DPSRC_AUX_N21
OUT2_AUXp_SCL17
OUT2_AUXn_SDA17
TBT_I2C_SDA 21
TBT_I2C_SCL 21
PCIE_TXP1_TBT4
PCIE_TXN1_TBT4
PCIE_TXP2_TBT4
PCIE_TXN2_TBT4
PCIE_TXP3_TBT4
PCIE_TXN3_TBT4
PCIE_TXP4_TBT4
PCIE_TXN4_TBT4
CLK_PCIE_TBT5
CLK_PCIE_TBT#5
TBTA_CA2HD_1_P23
TBTA_CA2HD_1_N23
TBTA_CA2HD_0_P23
TBTA_CA2HD_0_N23
TBTA_LSRX21
TBTA_HPD21
OUT2_D0p17
OUT2_D0n17
OUT2_D1p17
OUT2_D1n17
OUT2_D2p17
OUT2_D2n17
OUT2_D3p17
OUT2_D3n17
TBT_CLKREQ#5
Title
Size Document Number Rev
Date: Sheet
of
6-71-N1300-D02A
2.0A

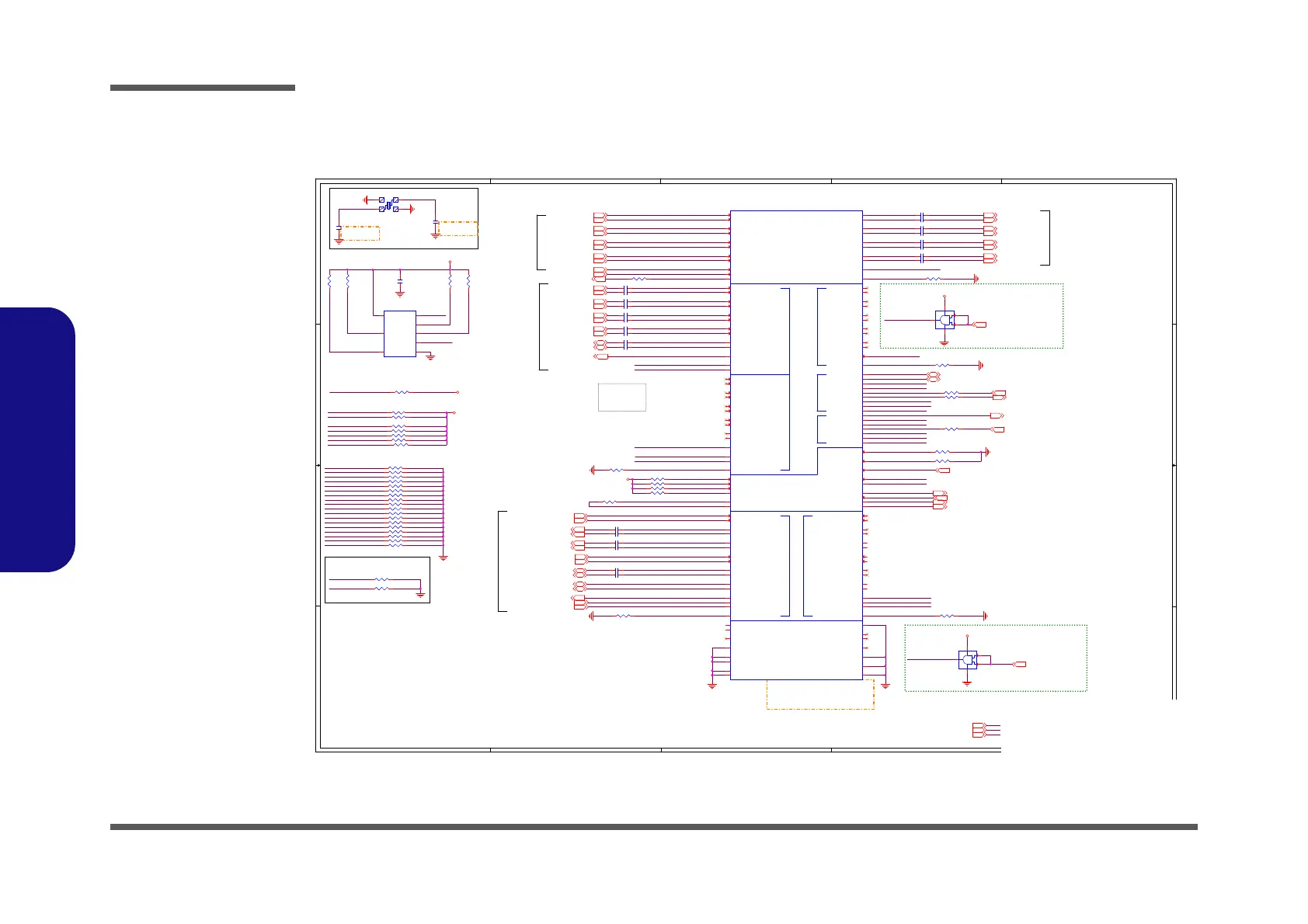

[19] AR_TBT
Custom
19 44Wednesday, December 21, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
N130BU
Title
Size Document Number Rev
Date: Sheet
of
6-71-N1300-D02A
2.0A
[19] AR_TBT
Custom
19 44Wednesday, December 21, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
N130BU
Title
Size Document Number Rev
Date: Sheet
of
6-71-N1300-D02A
2.0A
[19] AR_TBT
Custom
19 44Wednesday, December 21, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
N130BU
C589 0.1u_10V_X7R_04 W/TBT
C351 0.1u_6.3V_X5R_02 W/TBT
R267 1M_04 W/TBT
R510
3.3K_1%_04
W/TBT
C339 0.1u_6.3V_X5R_02 W/TBT
R265 1M_04 W/TBT
R231 10K_04 W/TBT
R507 100K_04 W/TBT
C372 0.22u_10V_X5R_02 W/TBT
R529 100K_04 W/TBT
R230 100K_04 W/TBT
C323 0.1u_6.3V_X5R_02 W/TBT
R523 10K_04 W/TBT
R513 100K_04 W/TBT
R256 0_04 W/TBT
C378 0.22u_10V_X5R_02 W/TBT
X1
FSX3L 25MHZ
W/TBT
12
3 4
C590 0.1u_10V_X7R_04 W/TBT
R239 100K_04 W/TBT
R244 1M_04 W/TBT
C349 0.22u_10V_X5R_02 W/TBT
C563 0.1u_10V_X7R_04 W/TBT
R517 100K_04 W/TBT
R556 499_1%_04 W/TBT
R500 10K_04 W/TBT
R524 100K_04 W/TBT
R506 100K_04 W/TBT
R561 499_1%_04
W/TBT
C380 0.22u_10V_X5R_02 W/TBT
R525 4.75K_0.5%_04 W/TBT
R253 10K_04 W/TBT
R503 0_04 W/TBT
R247 100K_04 W/TBT
R234 100K_04 W/TBT
R233 10K_04 W/TBT
R236 2.2K_1%_04 W/TBT
C370 0.22u_10V_X5R_02 W/TBT
R511
3.3K_1%_04
W/TBT
U23
TC7SZ08FU
W/TBT
1
2
5
4
3
R505 100K_04 W/TBT
C348 0.1u_6.3V_X5R_02 W/TBT
R504 100K_04 W/TBT
R272 1M_04 W/TBT
R489 *10K_04 W/TBT
R238 1M_04 W/TBT
C373
5p_50V_NPO_04
W/TBT
C359 0.22u_10V_X5R_02 W/TBT
C533
0.1u_10V_X7R_04
W/TBT
R508 14K_1%_04
W/TBT
C383 0.22u_10V_X5R_02 W/TBT
C334 0.1u_6.3V_X5R_02 W/TBT
C381 0.22u_10V_X5R_02 W/TBT
C549 0.1u_10V_X7R_04 W/TBT
R220 100K_04 W/TBT
C345 0.1u_6.3V_X5R_02 W/TBT
PCIe GEN3
Port A
PORT B
SINK PORT 0
Misc
TBT PORTS
SOURCE PORT 0
SINK PORT 1
LC GPIOPOC GPIO
DEBUG
MISC
POC
POC
U9A JHL6340
W/TBT
PA_TX0_P
A19
PA_TX0_N
B19
PA_TX1_P
A17
PA_TX1_N
B17
PCIE_RX1_P
T23
PCIE_RX1_N
T22
PCIE_RX0_P
Y23
PCIE_RX0_N
Y22
PCIE_TX1_P
P23
PCIE_TX1_N
P22
PCIE_TX0_P
V23
PCIE_TX0_N
V22
PCIE_REFCLK_100_IN_P
V19
PCIE_REFCLK_100_IN_N
T19
PA_RX1_N
B15
PA_RX1_P
A15
PA_RX0_P
B21
PA_RX0_N
A21
PCIE_CLKREQ_N
AC5
DPSNK0_ML0_P
AB7
DPSNK0_ML0_N
AC7
DPSNK0_ML1_P
AB9
DPSNK0_ML1_N
AC9
DPSNK0_ML2_P
AB11
DPSNK0_ML2_N
AC11
DPSNK0_ML3_P
AB13
DPSNK0_ML3_N
AC13
DPSNK0_AUX_P
Y11
DPSNK0_AUX_N
W11
DPSNK0_HPD
AA2
PERST_N
L4
DPSNK1_ML0_P
AB15
DPSNK1_ML0_N
AC15
DPSNK1_ML1_P
AB17
DPSNK1_ML1_N
AC17
DPSNK1_ML2_P
AB19
DPSNK1_ML2_N
AC19
DPSNK1_ML3_P
AB21
DPSNK1_ML3_N
AC21
DPSNK1_AUX_P
Y12
DPSNK1_AUX_N
W12
DPSNK1_HPD
Y6
DPSNK0_DDC_CLK
Y5
DPSNK0_DDC_DATA
R4
DPSNK1_DDC_CLK
Y8
DPSNK1_DDC_DATA
N4
PCIE_TX2_P
K23
PCIE_TX2_N
K22
PCIE_TX3_P
F23
PCIE_TX3_N
F22
PCIE_RX2_P
M23
PCIE_RX2_N
M22
PCIE_RX3_P
H23
PCIE_RX3_N
H22
DPSRC_ML0_P
R2
DPSRC_ML0_N
R1
DPSRC_ML1_P
N2
DPSRC_ML1_N
N1
DPSRC_ML2_P
L2
DPSRC_ML2_N
L1
DPSRC_ML3_P
J2
DPSRC_ML3_N
J1
DPSRC_AUX_P
W19
DPSRC_AUX_N
Y19
DPSRC_HPD
G1
PB_TX1_P
A9
PB_TX1_N
B9
PB_RX1_P
B7
PB_RX1_N
A7
PB_TX0_P
A11
PB_TX0_N
B11
PB_RX0_P
A13
PB_RX0_N
B13
POC_GPIO_1
E2
POC_GPIO_0
J4
PA_LSTX
A5
PA_DPSRC_HPD
M4
PA_USB2_D_P
E20
PA_USB2_D_N
D20
PB_LSRX
B5
PB_LSTX
B4
PB_DPSRC_HPD
G2
GPIO_0
U1
GPIO_1
U2
GPIO_2
V1
GPIO_3
V2
GPIO_4
W1
GPIO_5
W2
GPIO_6
Y1
GPIO_7
Y2
GPIO_8
AA1
XTAL_25_IN
D22
XTAL_25_OUT
D23
PCIE_RBIAS
N16
EE_DI
AB3
EE_DO
AC4
EE_CS_N
AC3
EE_CLK
AB4
TDI
Y4
TMS
V4
TCK
T4
TDO
W4
TEST_EN
E1
TEST_PW R_GOOD
AB5
RESET_N
F4
PA_LSRX
A4
RBIAS
H6
RSENSE
J6
DPSRC_RBIAS
N6
POC_GPIO_2
D4
POC_GPIO_3
H4
POC_GPIO_4
F2
POC_GPIO_5
D2
POC_GPIO_6
F1
PB_USB2_D_P
E19
PB_USB2_D_N
D19
PB_USB2_RBIAS
F19
PA_USB2_RBIAS
H19
DPSNK_RBIAS
Y18
PA_DPSRC_AUX_P
Y15
PA_DPSRC_AUX_N
W15
PB_DPSRC_AUX_P
Y16
PB_DPSRC_AUX_N
W16
THERMDA
AC23
THERMDA
AB23
PCIE_ATEST
V18
TEST_EDM
AC1
FUSE_VQPS_64
L15
FUSE_VQPS_128
N15
MONDC_CIO_0
C23
MONDC_CIO_1
C22
MONDC_SVR
D6
ATEST_P
A23
ATEST_N
B23
USB2_ATEST
E18
MONDC_DPSNK_0
W13
MONDC_DPSNK_1
W18
MONDC_DPSRC
AB2
R218 0_04 W/TBT
R547 14K_1%_04
W/TBT
C379 0.22u_10V_X5R_02 W/TBT
C374
5p_50V_NPO_04
W/TBT
R557 3.01K_1%_04
W/TBT
R235 0_04 W/TBT
R512
3.3K_1%_04
W/TBT
C342 0.1u_6.3V_X5R_02 W/TBT
R225 100K_04 W/TBT
R232 100_04 W/TBT
C354 0.22u_10V_X5R_02 W/TBT
U34
W25Q80DV
W/TBT
CE#
1
SO
2
WP#
3
VSS
4
SI
5
SCK
6
HOLD#
7
VDD
8
C356 0.22u_10V_X5R_02 W/TBT
R260 1M_04 W/TBT
R502 *10K_04 W/TBT
R237 2.2K_1%_04 W/TBT
C331 0.1u_6.3V_X5R_02 W/TBT
R261 100_04 W/TBT
R488 *10K_04 W/TBT
R509
3.3K_1%_04
W/TBT
R501 *10K_04 W/TBT
C382 0.22u_10V_X5R_02 W/TBT
R219 10K_04 W/TBT
U30
TC7SZ08FU
W/TBT
1
2
5
4
3
