Clevo N131BU User Manual

Disassembly
2 - 6 Removing the Battery
2.Disassembly
Removing the Battery
1. Turn off the computer, turn it over to remove the keyboard (page 2 - 5).
2. Remove screws - (Figure 2a).
3. Remove screws - on the bottom case (Figure 2b).
4. Remove the bottom case up. The battery will be visible at point on the computer (Figure 2b).
5. Carefully disconnect the cable , then remove screws
- (Figure 2c).
6. Lift the battery off the computer (Figure 2d
).
7. Reverse the process to install a new battery (do not forget to replace all the screws and bottom cover).
1
3
4
13
14
15
16
17
21
22

14. Bottom Case
22. Battery
•18 Screws
Figure 2
Battery Removal

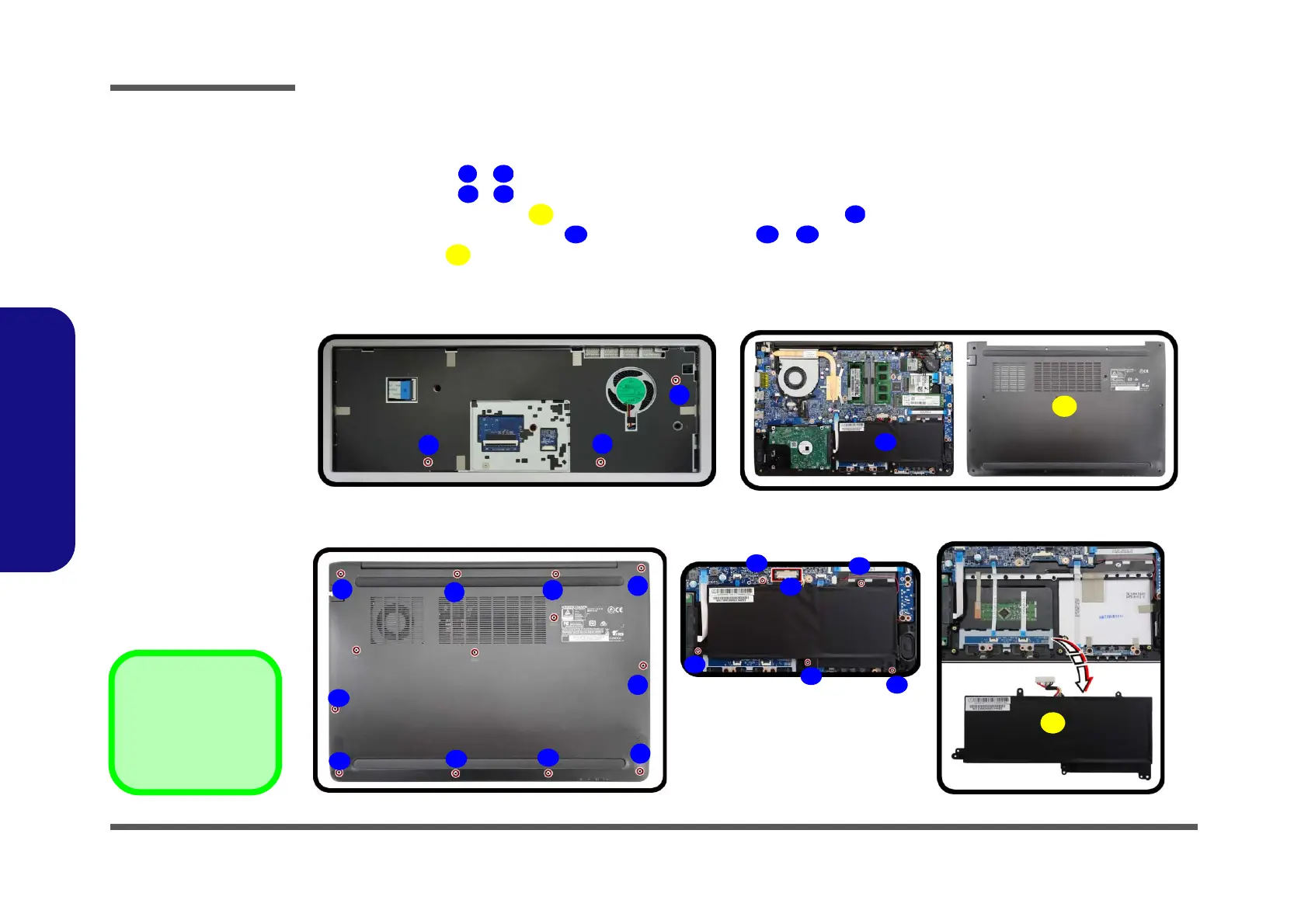

a. Remove the screws.
b. Remove the screws.
c. Remove the bottom case
and locate the battery.
d. Disconnect the cable and
remove the screws.
e. Lift the battery off the
computer.
a.
b.
1
2
4
c.
8
5
6
d.
7
3
9
10
11
12
13
14
22
17
20
16
18
21
e.
15
19
