Disassembly
Removing the CCD 2 - 17
2.Disassembly
Removing the CCD
1. Turn off the computer, turn it over to remove the keyboard (page 2 - 5) and battery (page 2 - 6).

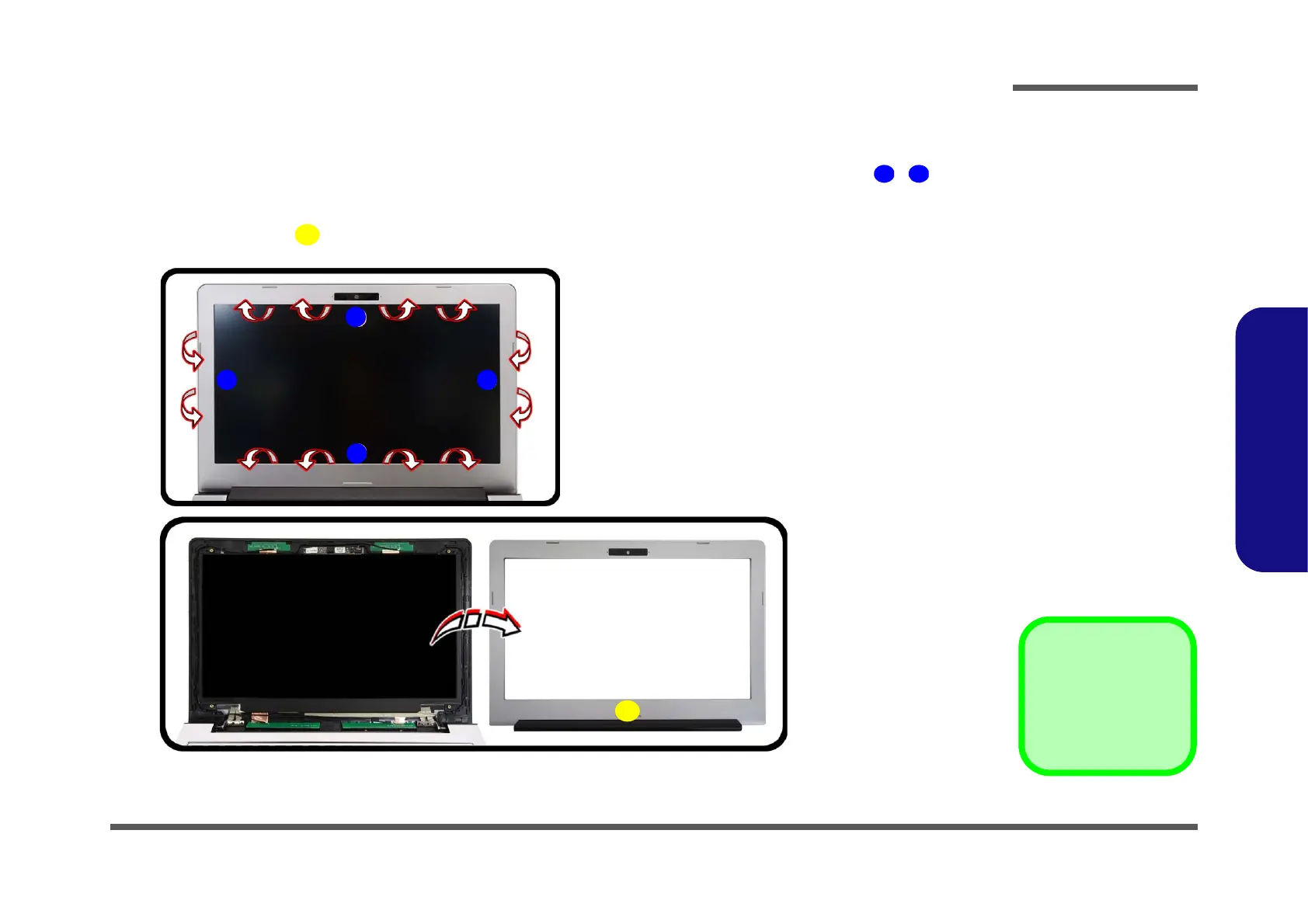

2. Run your fingers around the inner frame of the LCD panel at the points as indicated by the arrows - (Figure
11a).
3. Lay the computer down on a flat surface with the top case up forming a 90 degree angle. Carefully lift and remove
the LCD front cover upwards (Figure 11b).
1
3
4
b.
a.
3
2
4
1
2
4. LCD Front Cover
•6 Screws
Figure 11
CCD Removal
a. Run your fingers around
the inner frame of the
LCD panel at the points
indicated by the arrows.
b. Lay the computer down
on a flat surface with the
top case up forming a 90
degree angle. Lift the
LCD front panel up-
wards.
