Disassembly
2 - 14 Removing and Installing the M.2 SSD Module
2.Disassembly
Removing and Installing the M.2 SSD Module
M.2 SSD-1 Removal Procedure
1. Turn off the computer, turn it over to remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 8a).
3. Remove the screw
(Figure 8b)
4. The M.2 SSD module (Figure 8c) will pop-up, and you can remove it from the computer.
3.M2 SATA Module
•1 Screw

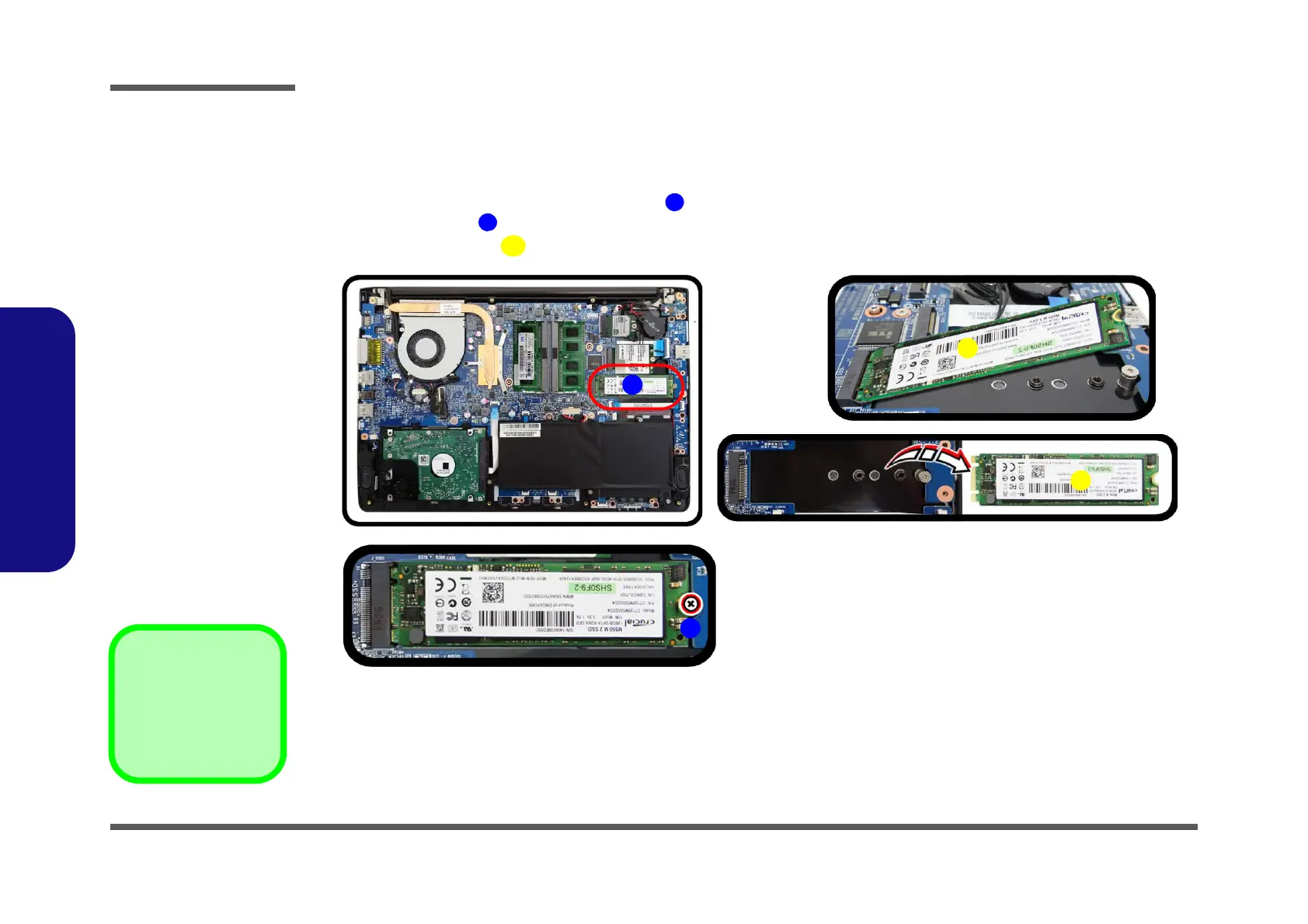

Figure 8
M.2 SSD-1 Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
To Next Page
