Disassembly
Removing and Installing the M.2 SSD Module 2 - 15
2.Disassembly
M.2 SSD-2 Removal Procedure
1. Turn off the computer, turn it over to remove the keyboard (page 2 - 5) and battery (page 2 - 6).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 9a).
3. Remove the screw
(Figure 9b)
4. The M.2 SSD module (Figure 9c) will pop-up, and you can remove it from the computer.
3.M2 SATA Module
4.Module Bracket
•1 Screw
Figure 9
M.2 SSD-2 Module
Removal

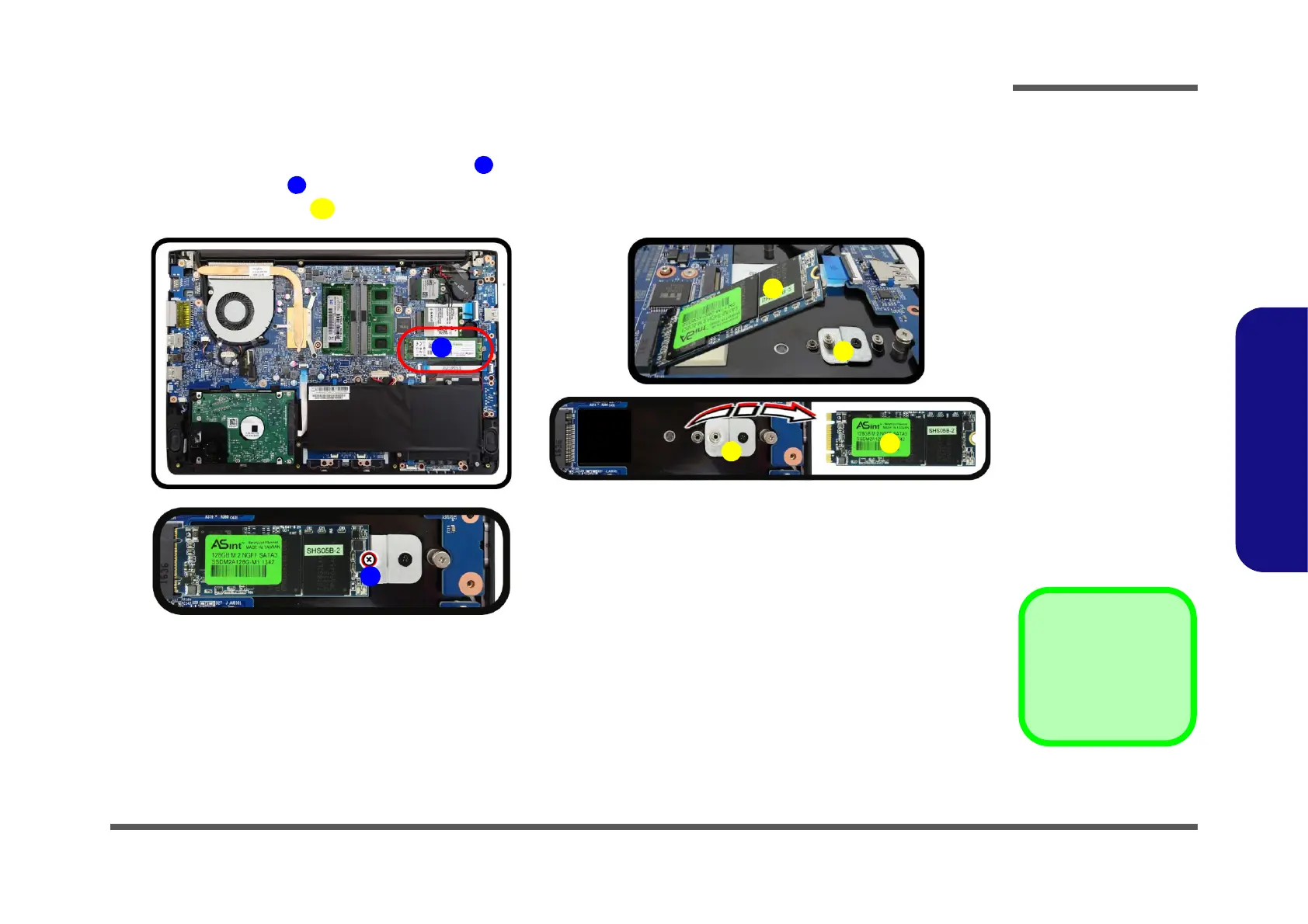

a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
