Disassembly
2 - 8 Removing the Hard Disk Drive
2.Disassembly

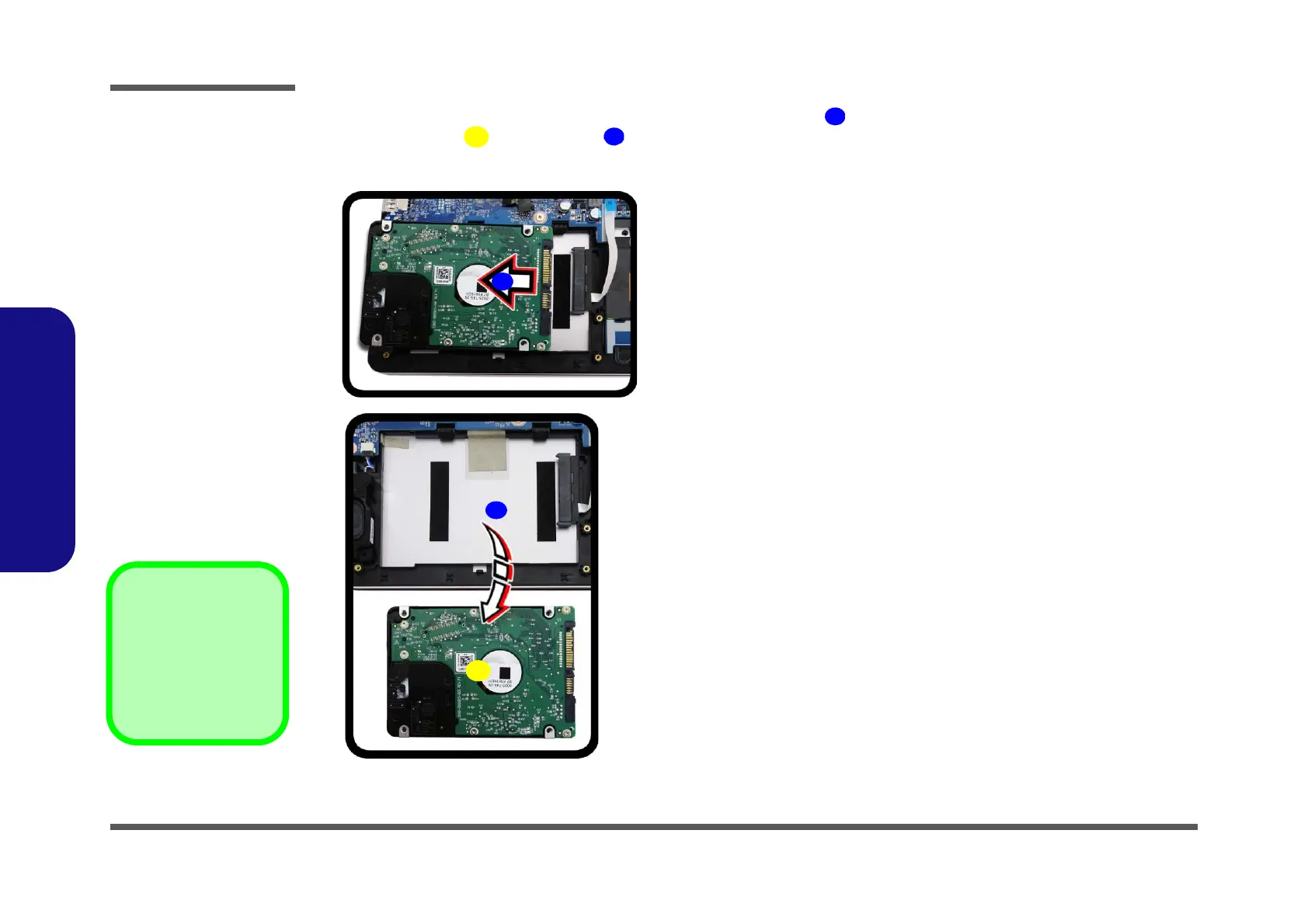

4. Slightly lift to pull the hard disk assembly in the direction of arrow (Figure 4c).
5. Lift the hard disk out of the bay (Figure 4d).
6. Reverse the process to install a new hard disk (do not forget to replace all the screws and bottom cover).
3
4
5
c.
d.
3
4
5

4. HDD
Figure 4
HDD Assembly
Removal (cont’d.)
c. Slightly lift to pull the
HDD assembly in the di-
rection of the arrow.
d. Lift the HDD assembly
out of the bay.
