Disassembly
Removing the Wireless LAN Module 2 - 21
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (
page 2 - 5) and the keyboard (page 2 - 16).
2. The Wireless LAN module will be visible at point under the keyboard (
Figure 17a).
3. Carefully disconnect cables - , then remove screw from the module socket (
Figure 17b).
4. The Wireless LAN module will pop-up (
Figure 17c).
5. Lift the Wireless LAN module (
Figure 17d) up and off the computer.

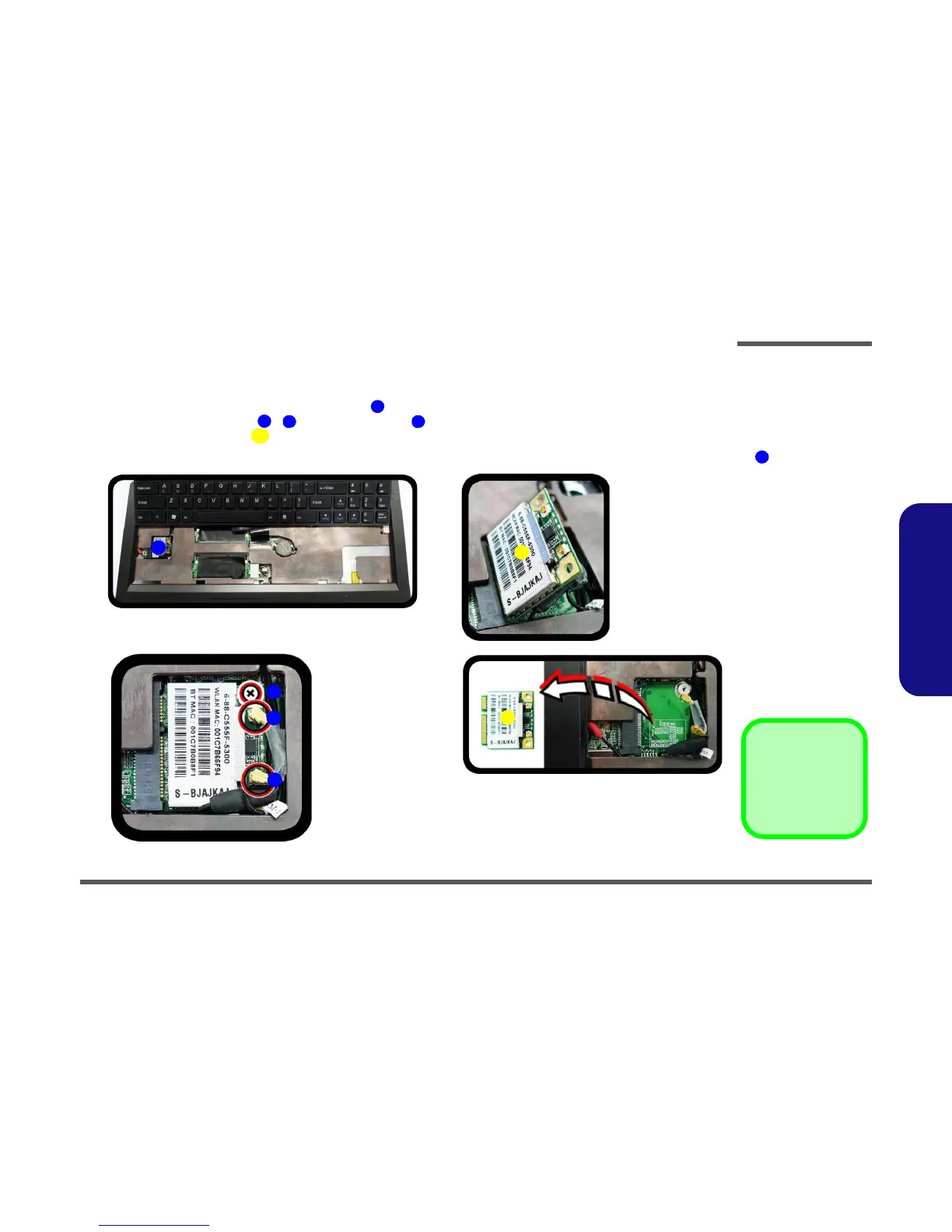

Figure 17
Wireless LAN
Module Removal
a. The Wireless LAN mod-
ule will be visible at point
under the keyboard
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
d. Lift the WLAN module
out.
1
1
2
3
4
5
5
b.
a.
d.
2
3
5
c.
4
1
5. WLAN Module
•1 Screw
