Clifford Concept 650 - Type F: One-Wire System

www.directed.com
18
type F: one-wire system

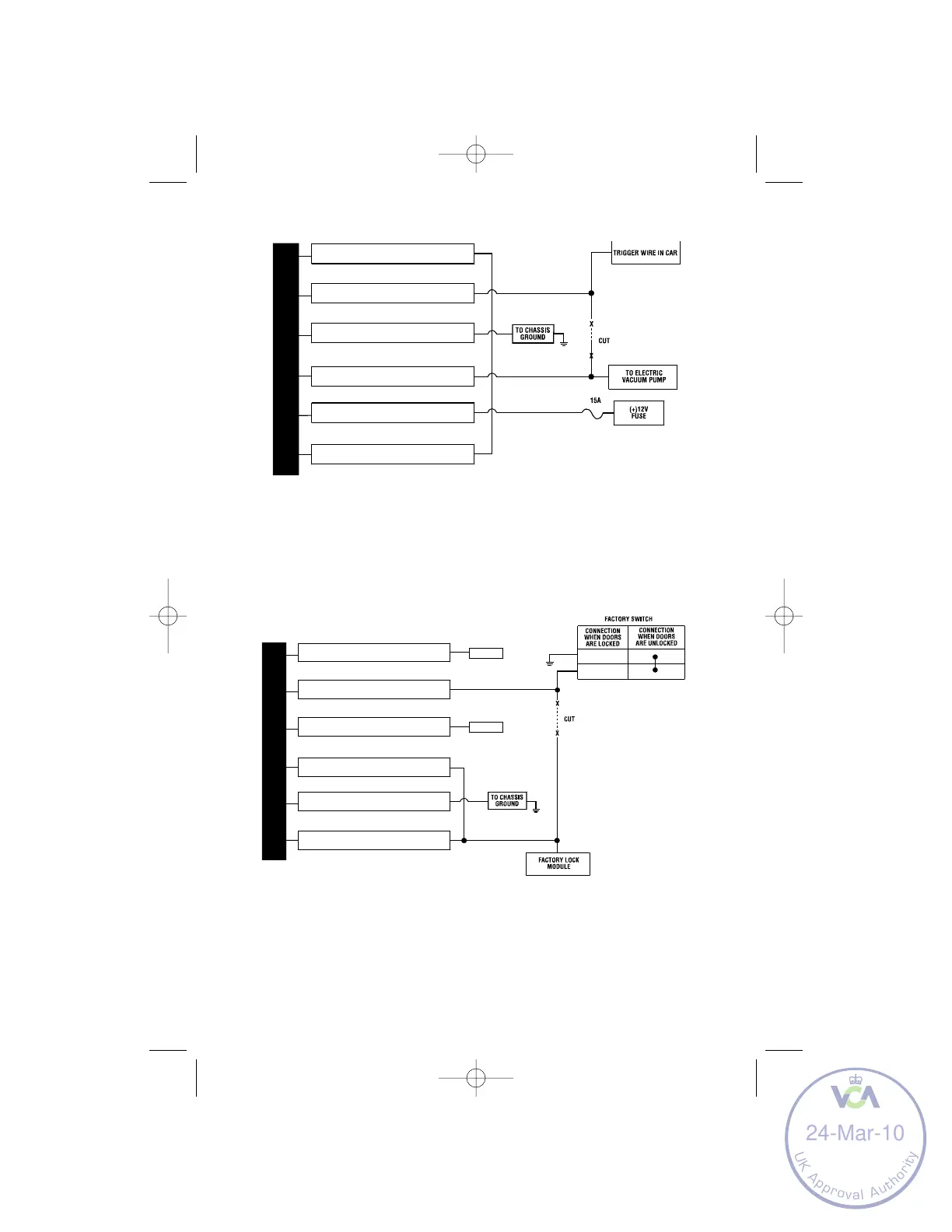

Type F door locks usually require a negative pulse to unlock and cutting the wire to
lock the door. In some vehicles, these functions are reversed. These door locks are
found most commonly in Mitsubishis, Proton and Lotus.
H2/1
H2/2
H2/3
H2/5
H2/6
H2/7
GREEN/BLACK
LOCK #30 COMMON (OUTPUT)
WHITE/BLACK
LOCK #87A NORMALLY CLOSED
VIOLET/BLACK
LOCK #87 NORMALLY OPEN (INPUT)
VIOLET
UNLOCK #87 NORMALLY OPEN (INPUT)
BLUE/BLACK
UNLOCK #30 COMMON (OUTPUT)
BROWN/BLACK
UNLOCK #87A NORMALLY CLOSED
NOT USED
NOT USED
H2/1
H2/2
H2/3
H2/5
H2/6
H2/7
GREEN/BLACK
LOCK #30 COMMON (OUTPUT)
WHITE/BLACK
LOCK #87A NORMALLY CLOSED
VIOLET/BLACK
LOCK #87 NORMALLY OPEN (INPUT)
VIOLET
UNLOCK #87 NORMALLY OPEN (INPUT)
BLUE/BLACK
UNLOCK #30 COMMON (OUTPUT)
BROWN/BLACK
UNLOCK #87A NORMALLY CLOSED
