The BRA2 and BRN2 appliances are air-water units operat-
ing on R-410A and refrigerant are suitable for outdoor instal-
lation. The units are CE marked, as established by the EU
directives, including the latest amendments, and the corre-
sponding approximated national legislation.
They are factory tested and on site installation is limited to
water and electrical connections.
10
9
5
6
4
3
2
1
9
11
7
13
14
8
12
15

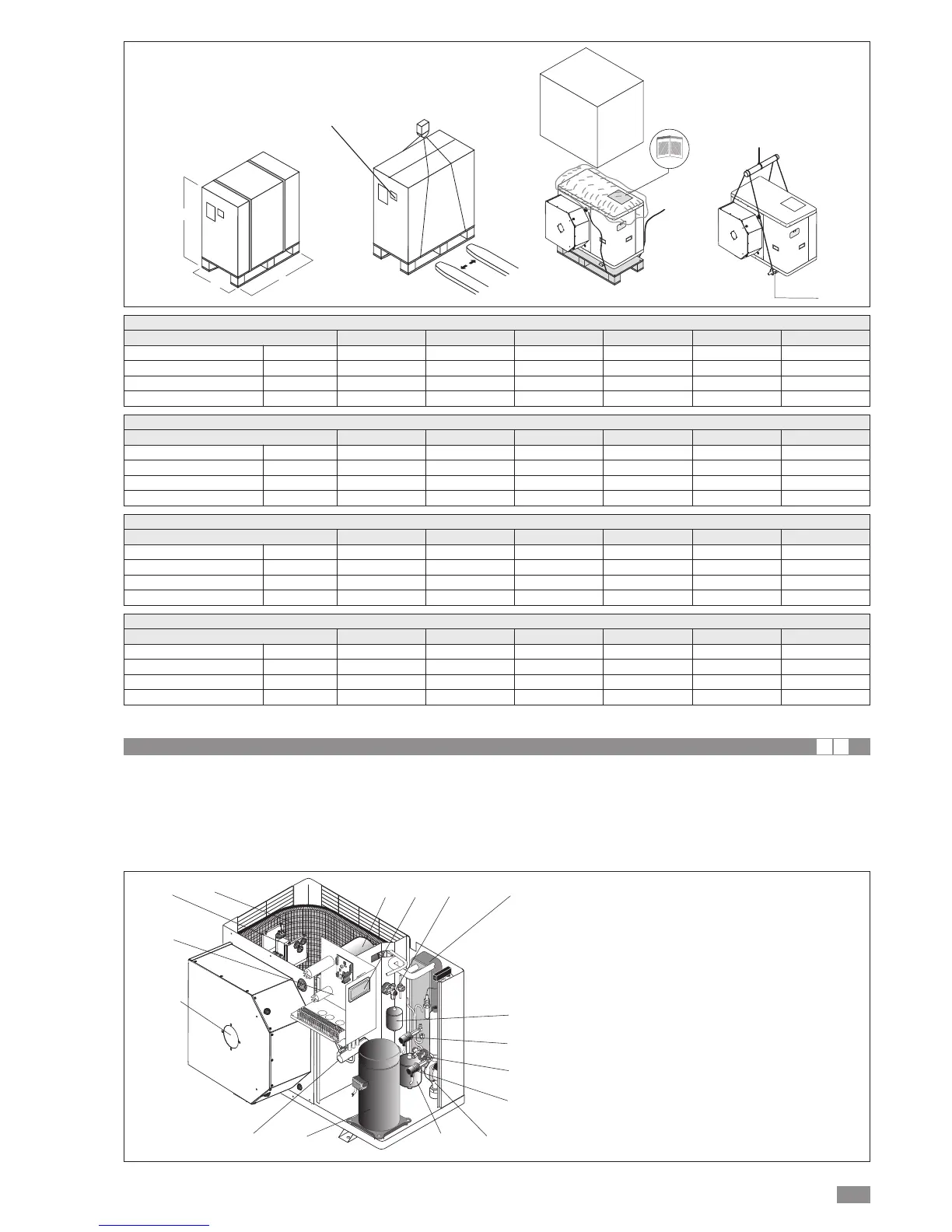

1 Electrical panel
2 Control panel
3 Heat exchanger installation side
4 Low pressure switch
5 High pressure switch
6 Scroll compressor
7 Filter
8 Thermostatic valve
9 Centrifugal fan
10 Heat exchanger external side
11 Pump (accessory)
12 Liquid receiver (BRN2 only)
13 Expansion tank
(models WITH HYDRONIC UNIT only)
14 Reversing valve (BRN2 only)
15 Fan board
BRA2 Dimensions and weight with standard packaging
Size
0021M-T 0025M-T 0031M-T 0041M-T 0051T 0061T
Dimension L mm 970 970 970 970 970 970
Dimension P mm 660 660 660 660 660 710
Dimension H mm 840 1140 1140 1440 1440 1590
Weight
Kg 125 140 145 190 210 220
BRN2 Dimensions and weight with standard packaging
Size
0021M-T 0025M-T 0031M-T 0041M-T 0051T 0061T
Dimension L mm 970 970 970 970 970 970
Dimension P mm 660 660 660 660 660 710
Dimension H mm 840 1140 1140 1440 1440 1590
Weight
Kg 135 150 155 205 225 235
BRA2 Dimensions and weight with wooden crate
Size
0021M-T 0025M-T 0031M-T 0041M-T 0051T 0061T
Dimension L mm 1070 1070 1070 1070 1070 1070
Dimension P mm 760 760 760 760 760 810
Dimension H mm 890 1190 1190 1490 1490 1640
Weight difference
Kg 150 170 175 225 245 265
BRA2 Dimensions and weight with wooden crate
Size
0021M-T 0025M-T 0031M-T 0041M-T 0051T 0061T
Dimension L mm 1070 1070 1070 1070 1070 1070
Dimension P mm 760 760 760 760 760 810
Dimension H mm 890 1190 1190 1490 1490 1640
Weight difference
Kg 160 180 185 240 260 280
