Clinton HF-15BX - Metal Contact Limit (MCL); Multi Pinhole Limit (MPL); Gross Barewire Limit (GBL); Fault Combination Limit (FCL) - Must be Configured Via USB Computer Interface

Model HF-15B High Frequency Spark Tester

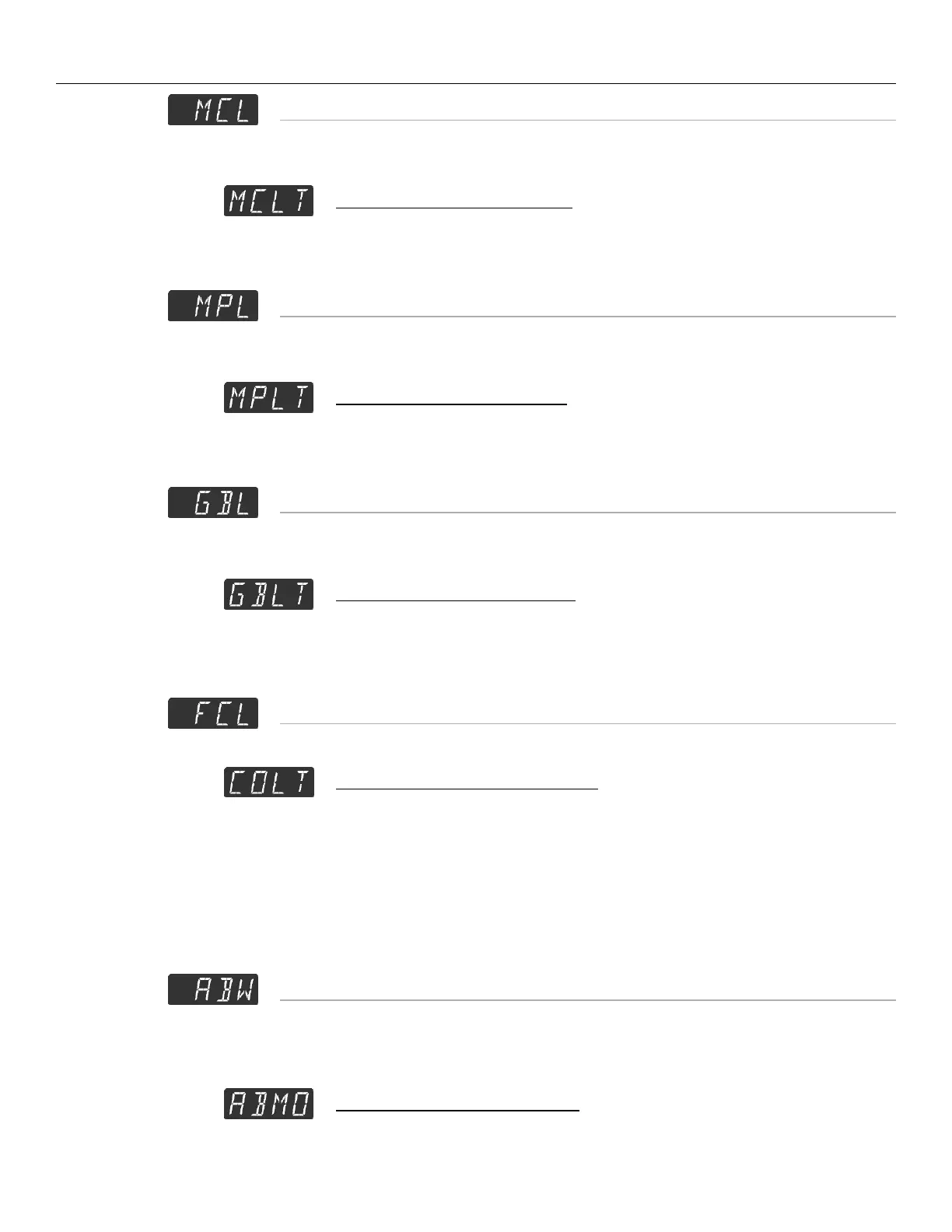

HF-15B Instruction Manual – Page 34
Metal Contact Limit (MCL)
This output will change state when the “Metal Contact” count is equal to or
greater than the configured “MCLT”.
Metal Contact Count Limit (MCLT)
Amount of counts allowed before the output responds.
Multi Pinhole Limit (MPL)
This output will change state when the “Multi Pinhole” count is equal to or
greater than the configured “MPLT”.
Multi Pinhole Count Limit (MPLT)
Amount of counts allowed before the output responds.
Gross Barewire Limit (GBL)
This output will change state when the “Gross Barewire” count is equal to or
greater than the configured “GBLT”.
Gross Barewire Count Limit (GBLT)
Amount of counts allowed before the output responds.
Fault Combination Limit (FCL) – Must be configured via USB computer interface
This output will change state when the conditions of the ‘COLT’ are met.
Fault Combination Limit Mode (COLT)
“0”: The output will change state when either the Pinhole Count, or the
Multi Pinhole Count are equal to or greater than the ‘’MPLT” or “PHLT”.
“1”: The output will change state when either the Metal Contact count,
or the Gross Bare Wire Count are equal to or greater than ‘GBLT’ or
‘MCLT’
Any Barewire Alarm (ABW)
This output will operate in 2 different modes, “NLC”,”LCH”. The Any Barewire
alarm will respond only to a Metal Contact or Gross Barewire fault type. See the
“Fault Typing” section of the manual for more information.
Any Barewire Alarm Mode (ABMO)
