Specifications
 Page 62 

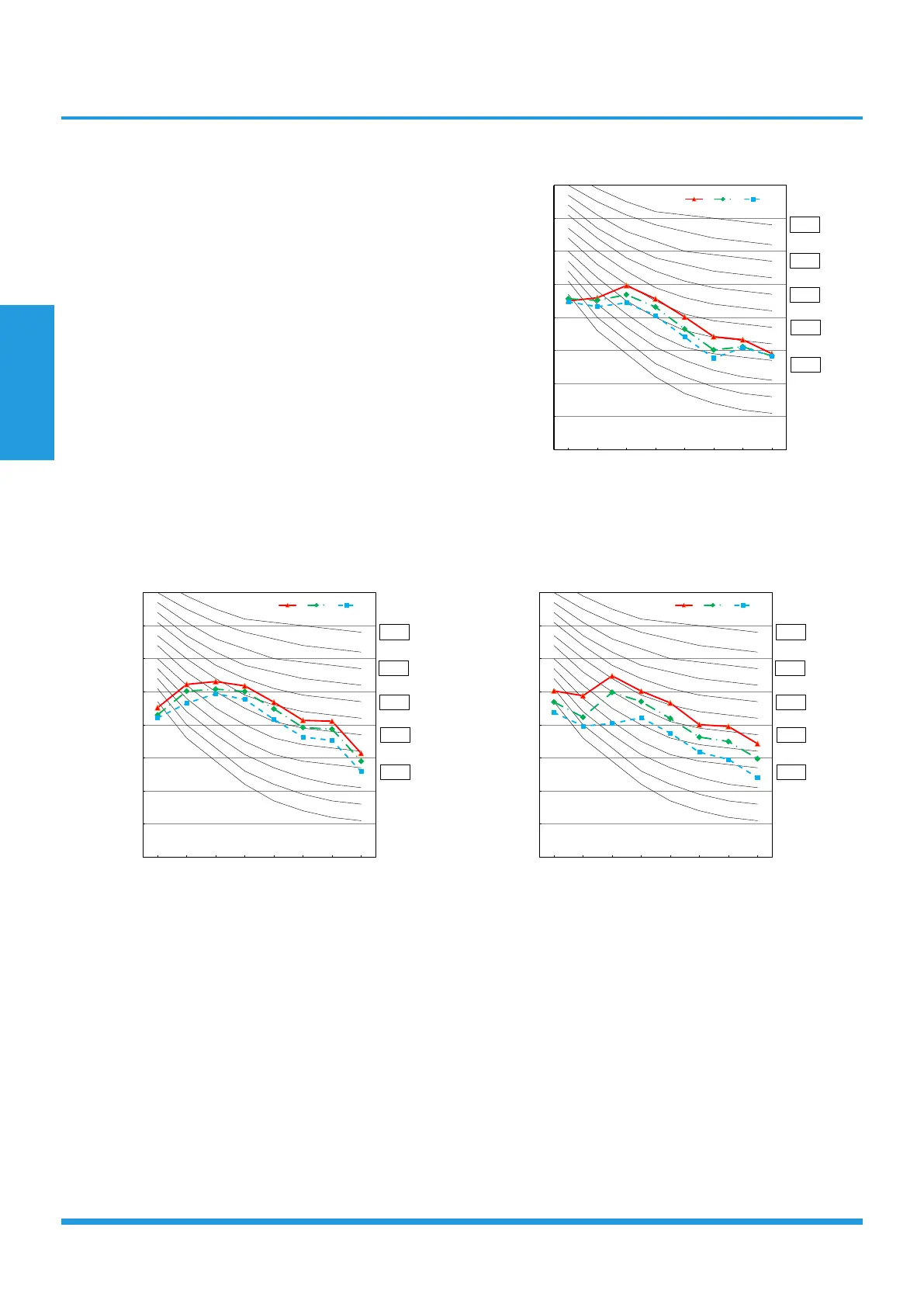

IA2-XY 70M
0
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Octave Band Sound Pressure Level /dB (0dB = 0.0002
μbar)
Band Center Frequency /Hz
H M L
NC-70
NC-60
NC-50
NC-40
NC-30
IA2-XY 105M(1ph)
(match with MC2-Y 105M)
IA2-XY 105M(3ph)
(match with MC2-Y 105T)
0
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Octave Band Sound Pressure Level /dB (0dB = 0.0002
μbar)
Band Center Frequency /Hz
H M L
NC-70
NC-60
NC-50
NC-40
NC-30
0
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Octave Band Sound Pressure Level /dB (0dB = 0.0002
μbar)
Band Center Frequency /Hz
H M L
NC-70
NC-60
NC-50
NC-40
NC-30
