Page 91
3. Connect the two louver motor connectors to the
corresponding wires in the control box.
4. Remove foam stops from inside the fan.
5. Attach the side of the front grille to the panel.
6. Connect the display panel cable to the corresponding
wire on the main body.
7. Close the front grille.
8. Fasten the installation covers at all four corners by
11. Panel Installation

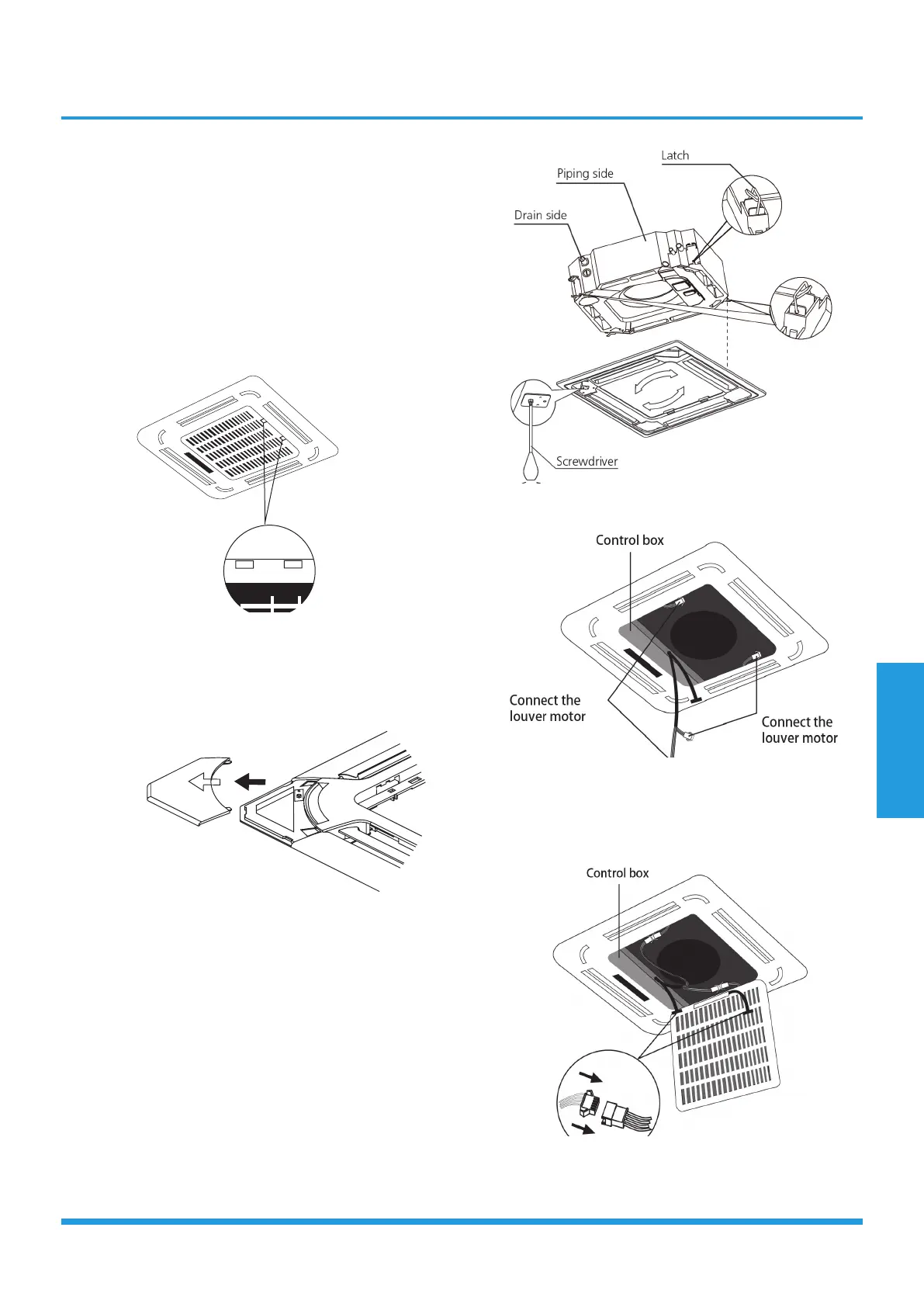

11.1 Panel Installation of Cassette
950X950 BOX-SL 2
11.1.1
Remove the front grille
1. Push both of the tabs towards the middle
simultaneously to unlock the hook on the grille.
2. Hold the grille at a 45° angle, lift it up slightly and
detach it from the main body
11.1.2 Remove the installation covers at the
four corners by sliding them outwards.
11.1.3 Install the panel
1. Align the front panel to the main body, taking into
account the position of the piping and drain sides. Hang
the four latches of the decorative panel to the hooks of
the indoor unit. Tighten the panel hook screws evenly at
the four corners.
Note: Tighten the screws until the thickness of the sponge
between the main body and the panel reduces to 4-6mm
(0.2-0.3”). The edge of the panel should be in contact
with the ceiling well.
2. Adjust the panel by turning it to the arrowed direction
shown in figure below so that the ceiling opening is
completely covered.
Installation
To Next Page
