pushing them inwards.
NOTE: If the height of the indoor unit needs to be
adjusted, you can do so through the openings at the
panel’s four corners. Make sure that the internal wiring
and drainpipe are not affected by this adjustment.
CAUTION: Failure to tighten screws can cause water
leakage.
Water condensation
CAUTION: If the unit is not hung correctly and a gap
exists, the unit’s height must be adjusted to ensure proper
function. The unit’s height can be adjusted by loosening
the upper nut, and adjusting the lower nut.

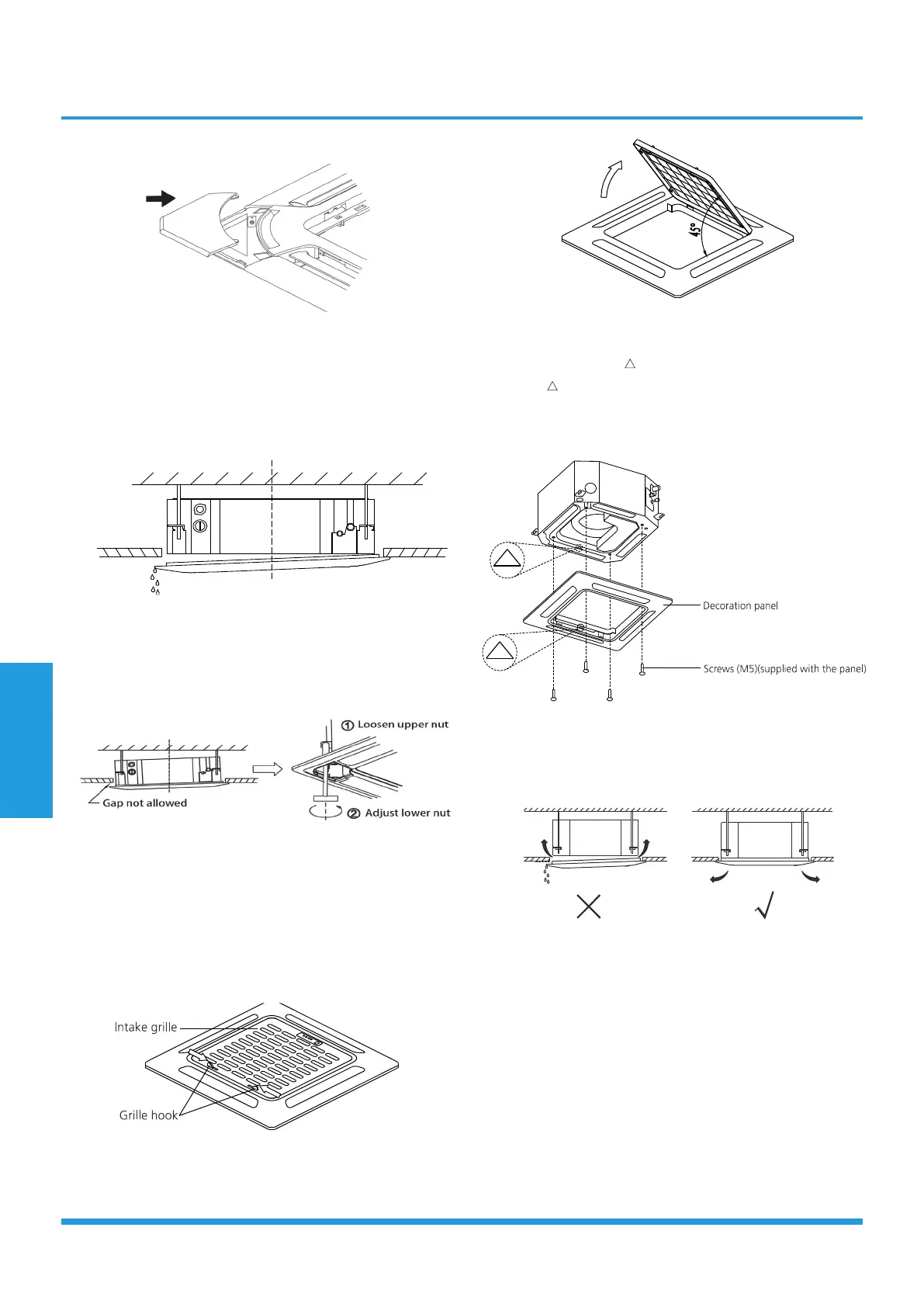

11.2 Cassette 650x650 BOX-SL 2
Panel Installation
11.2.1
Remove the front grille
1. Slide the 2 grille hooks toward the middle of the
decoration panel.
2. Hold the grille at a 45° angle, lift it up slightly and
detach it from the main body.
11.2.2 Install the panel
1.Align the indicate “ ” on the decoration panel to the
indicate “ ” on the unit .
2. Attach the decoration panel to the unit with the
supplied screws as shown in figure below.
3.After installing the panel, ensure that there is no space
between the unit body and decoration panel. Otherwise
air may leak through the gap and cause dewdrop.
11.2.3 Mount the grille
Ensure that the buckles at the back of the grille be properly
seated in the groove of the panel.
Installation
