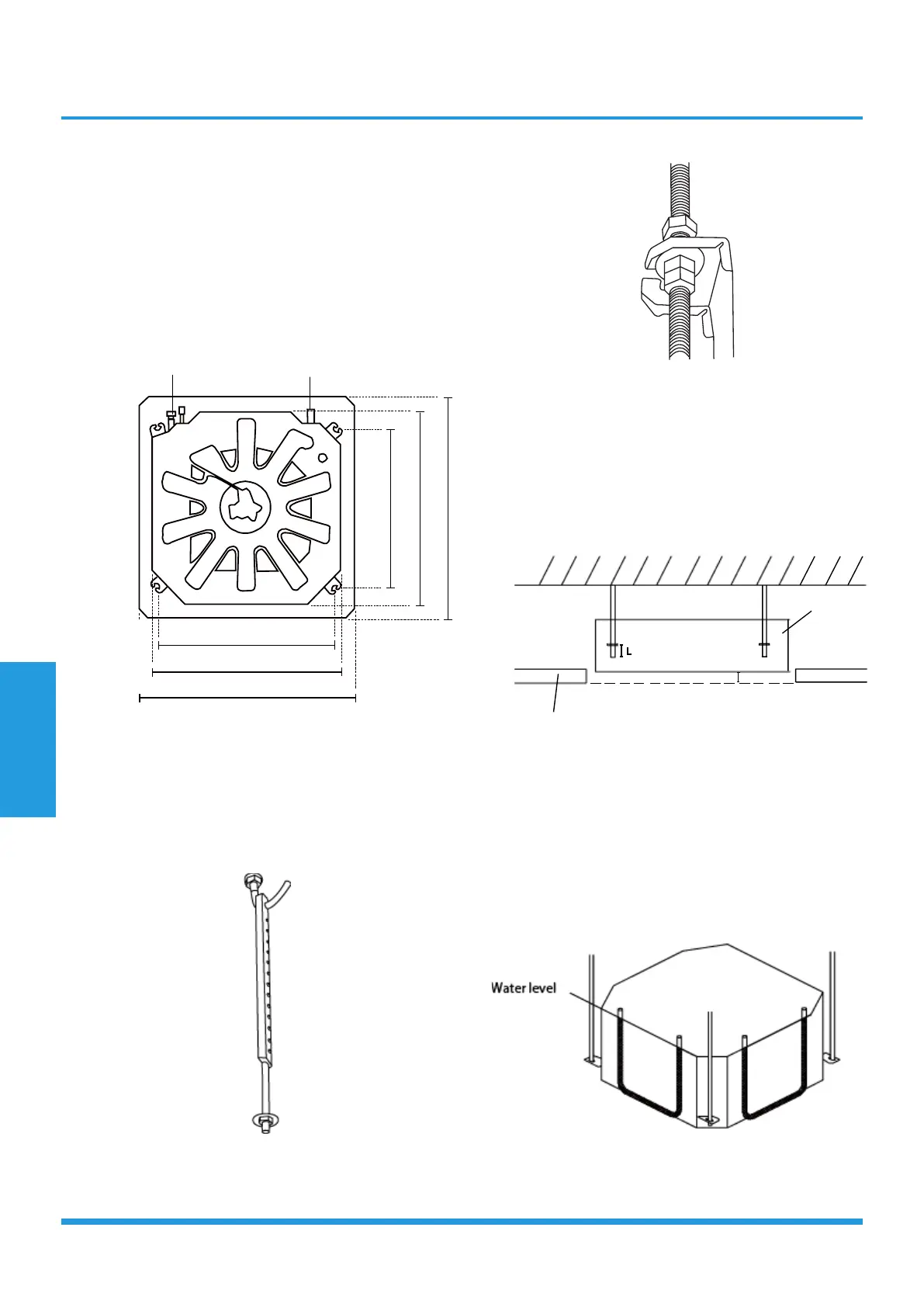

Suspension bolt pitch dimensions
Body dimensions
Decoration panel dimensions
Refrigerant piping
Suspension bolt (×4)
Ceiling opening dimensions
Hanger bracket
Ceiling board
70M - 160M ceiling hole size
For Cassette 950x950 BOX-SL2,
Refrigerant piping side
Drain hose side
78cm / 30”(Suspension bolt)
84cm / 33”(Body)
95cm / 37.4”(Ceiling opening)
68cm/26”
(Suspensionbolt)
84cm/33” (Body)
95cm/37.4” (Ceiling opening)
2.. Drill 4 holes 5cm (2”) deep at the ceiling hook positio
in the internal ceiling. Be sure to hold the drill at a 90°
angle to the ceiling.
3.. Using a hamm , insert the ceiling hooks into the pre-
drilled holes. Secure the bolt using the included washers
and nuts.
4.. Install the four suspension bol
5.Mount the indoor unit. You will need two people to lift
and secure it. Insert suspension bolts into the unit’s hang-
ing holes. Fasten them using the included washers and
nuts
Adjust the position to ensure the gaps between the indoor
unit and the four sides of false ceiling are even. The
bottom of the unit should be 24mm / 0.9in(compact
cassette) /10 - 18mm (0.4-0.7”)(super-slim cassette) higher
than ceiling board.
Generally, L should be half the length of the suspension
bolt or long enough to prevent the nuts from coming off
Wall
Ceiling board
Main body
Compact cassette:24mm(0.9in)
Super-slim cassette:10 - 18mm (0.4-0.7in)
L
CAUTION:
Ensure that the unit is completely level.
The unit is equipped with a built-in drain pump and
float switch. If the unit is tilted against the direction of
condensate flows (the drainpipe side is raised), the float
switch may malfunction and cause water to leak.
Installation
