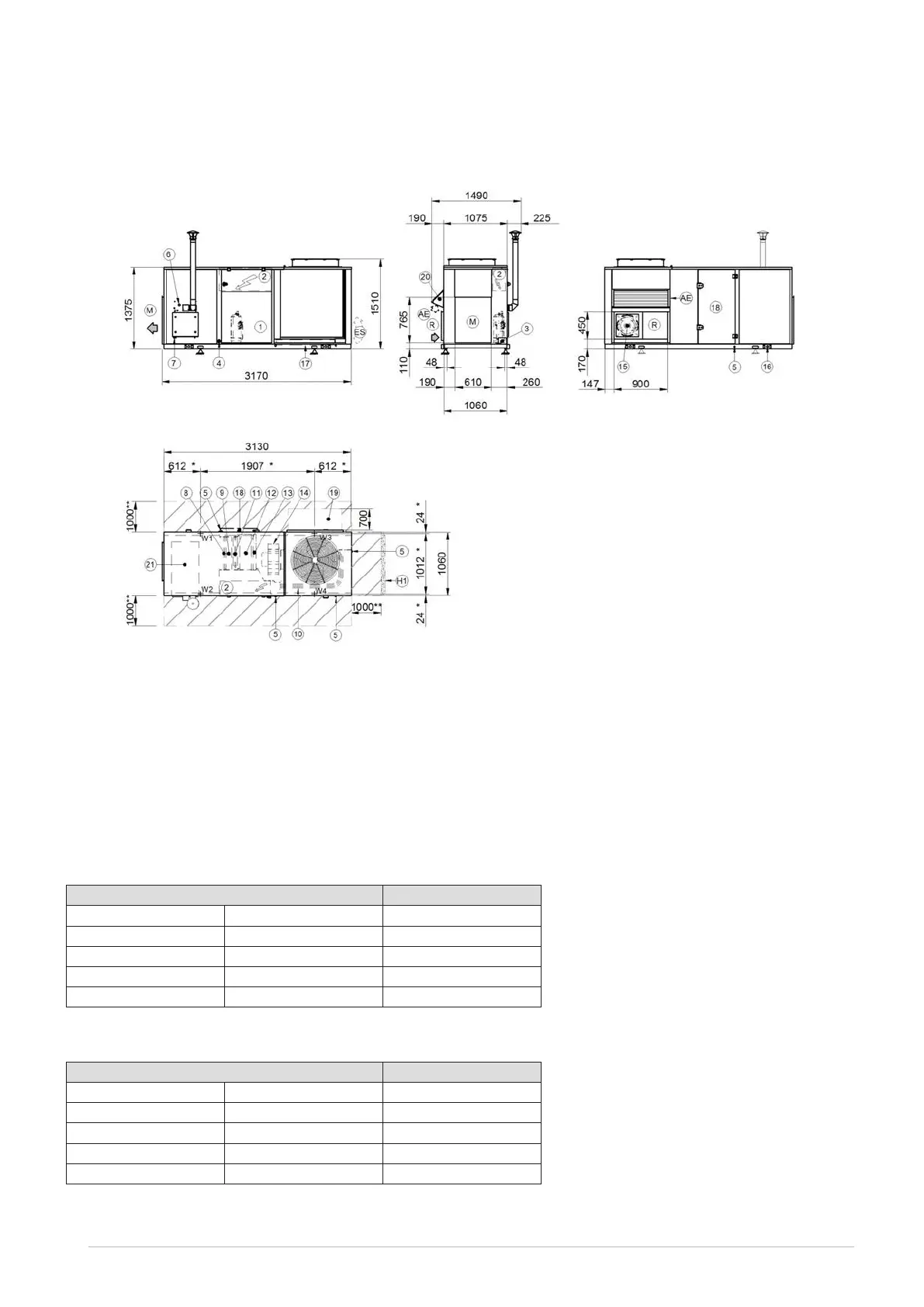

Dimensional drawings
Size 10.1 - Version CAK/CBK/CCK - Gas heating module 35/53 kW
Weight distribution of full re-circulation (CAK) / Recirculation and renewal air (CBK) conguration
Size 10.1
W1 Supporting Point kg 180
W2 Supporting Point kg 148
W3 Supporting Point kg 173
W4 Supporting Point kg 168
Shipping weight kg 705
Weight distribution of full re-circulation, renewal air and exhaust (CCK) conguration
Size 10.1
W1 Supporting Point kg 186
W2 Supporting Point kg 154
W3 Supporting Point kg 179
W4 Supporting Point kg 174
Shipping weight kg 729
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
1. Compressor compartment
2. Electrical panel
3. Power input
4. Humidier connections
5. Condensate drain
6. Gas connection
7. Condensate drain (only for condensation gas heating module)
8. Re-heating coil (optional)
9. Internal exchanger
10. External exchanger
11. Resistenze elettriche (optional)
12. Electrostatic lters or F7 (optional)
13. G4 air lters (standard)
14. Electric fan (supply-return)
15. Exhaust electric fan (version CCK only)
16. Lifting brackets (removable)
17. Over pressure damper exhaust (version CCK only)
18. Access for inspection coil, lters, hesting elements
19. Duct section removable for maintenance provided by the customer
20. Fresh air intake cap (only version CBK-CCK)
21. Gas module
(R) Air return
(M) Air supply
(AE) Fresh air intake
(ES) Air exhaust (only version CCK)
(H1) Wall with same height as unit on a maximun of three side
(**) Minimun suggested clearance
(*) Vibration mounts position
DAA6K0005_10.1_GC01_GD13_0 REV00
Data/Date 06/11/2017
6
CKN-XHE2i 7.1-14.2 M06K10A18-00
