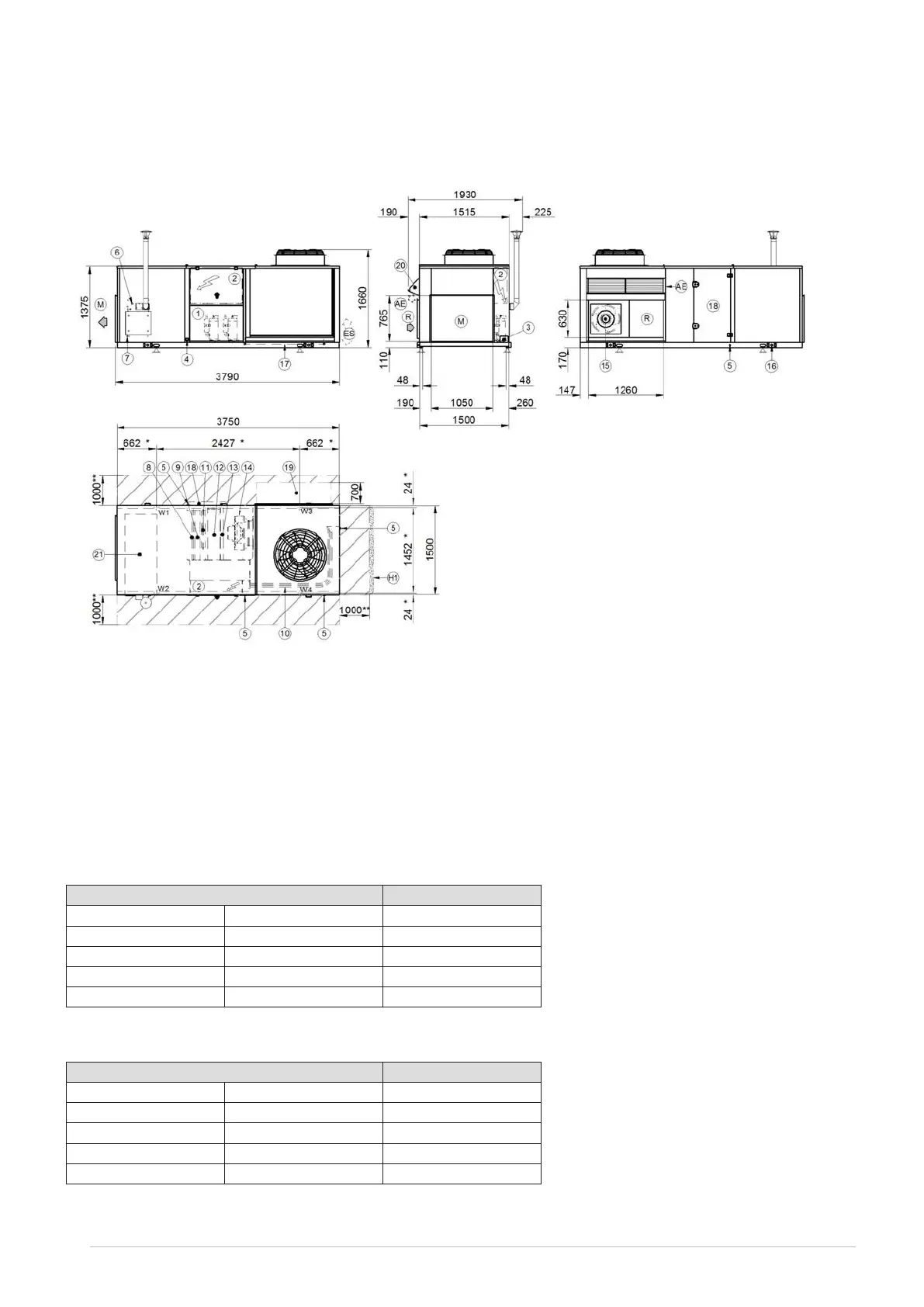

Dimensional drawings
Size 14.2 - Version CAK/CBK/CCK - Gas heating module 35/100 kW
Weight distribution of full re-circulation (CAK) / Recirculation and renewal air (CBK) conguration
Size 14.2
W1 Supporting Point kg 249
W2 Supporting Point kg 191
W3 Supporting Point kg 235
W4 Supporting Point kg 226
Shipping weight kg 951
Weight distribution of full re-circulation, renewal air and exhaust (CCK) conguration
Size 14.2
W1 Supporting Point kg 258
W2 Supporting Point kg 200
W3 Supporting Point kg 243
W4 Supporting Point kg 235
Shipping weight kg 986
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
1. Compressor compartment
2. Electrical panel
3. Power input
4. Humidier connections
5. Condensate drain
6. Gas connection
7. Condensate drain (only for condensation gas heating module)
8. Re-heating coil (optional)
9. Internal exchanger
10. External exchanger
11. Resistenze elettriche (optional)
12. Electrostatic lters or F7 (optional)
13. G4 air lters (standard)
14. Electric fan (supply-return)
15. Exhaust electric fan (version CCK only)
16. Lifting brackets (removable)
17. Over pressure damper exhaust (version CCK only)
18. Access for inspection coil, lters, hesting elements
19. Duct section removable for maintenance provided by the customer
20. Fresh air intake cap (only version CBK-CCK)
21. Gas module
(R) Air return
(M) Air supply
(AE) Fresh air intake
(ES) Air exhaust (only version CCK)
(H1) Wall with same height as unit on a maximun of three side
(**) Minimun suggested clearance
(*) Vibration mounts position
