29
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03
5 WATER CONNECTIONS

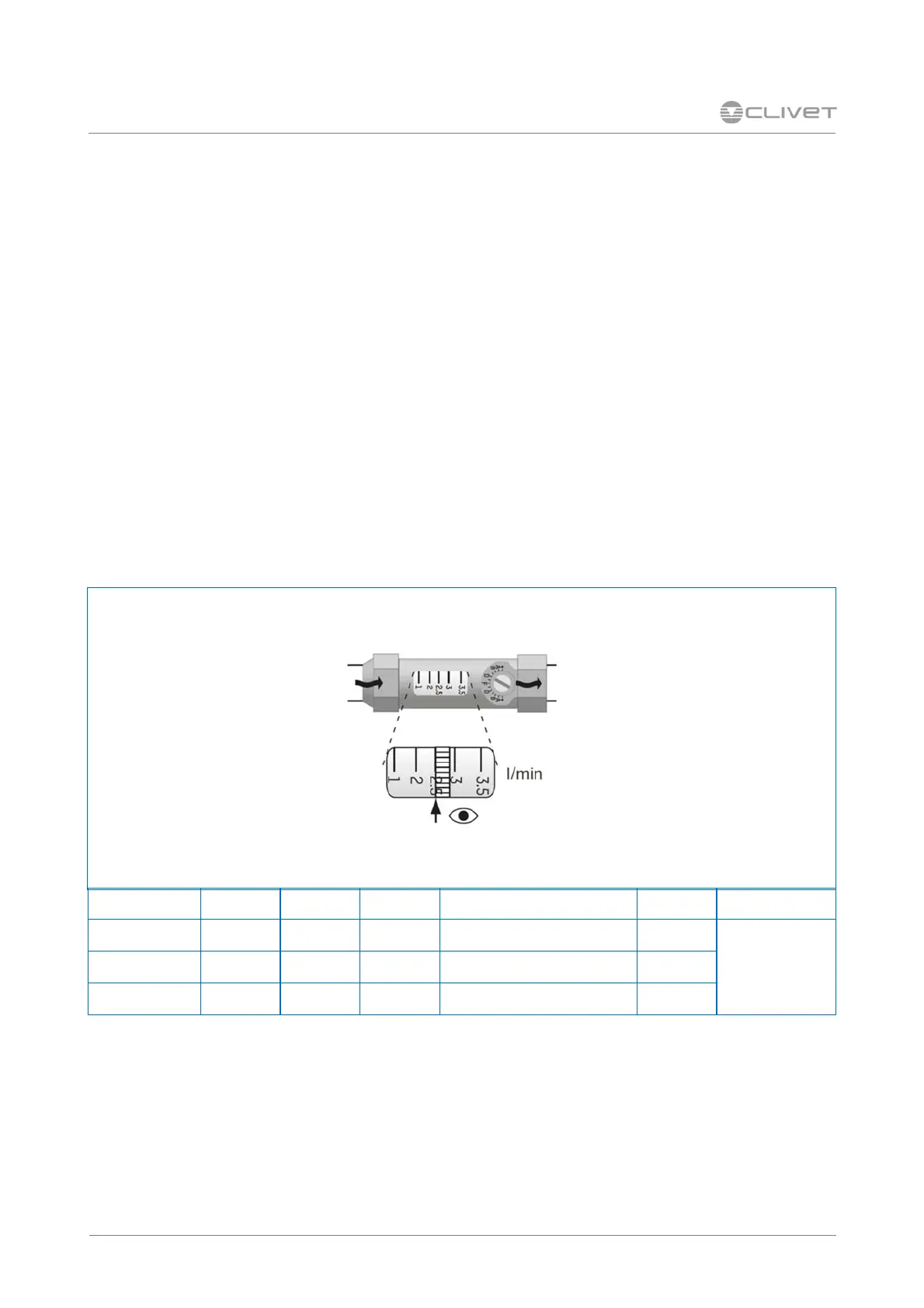

• Balancing valve
Water connections
Warning
Kit composition
Size DN Rp fittings Field flow control [l/min] kvs Max p [bar]
2.1-3.1 20 1” MM 10-40 5
5.1-7.1 25 1” MM 20-90 17
10.1-12.1 40 1”1/2 FF 30-120 30
10
Assemble and perform the hydraulic connections first.
Install the valve near to the unit.
Follow the direction of flow indicated on the valve body.
Adjust the valve to the desired flow rate within the limits allowed by the unit
Use a sealant to ensure tightness of the fittings.
If in doubt, refer to the component manufacturer’s instructions.
Manual balancing valve (option)
