CLIVET WiSAN-YME 1 S 2.1 Service Manual

9

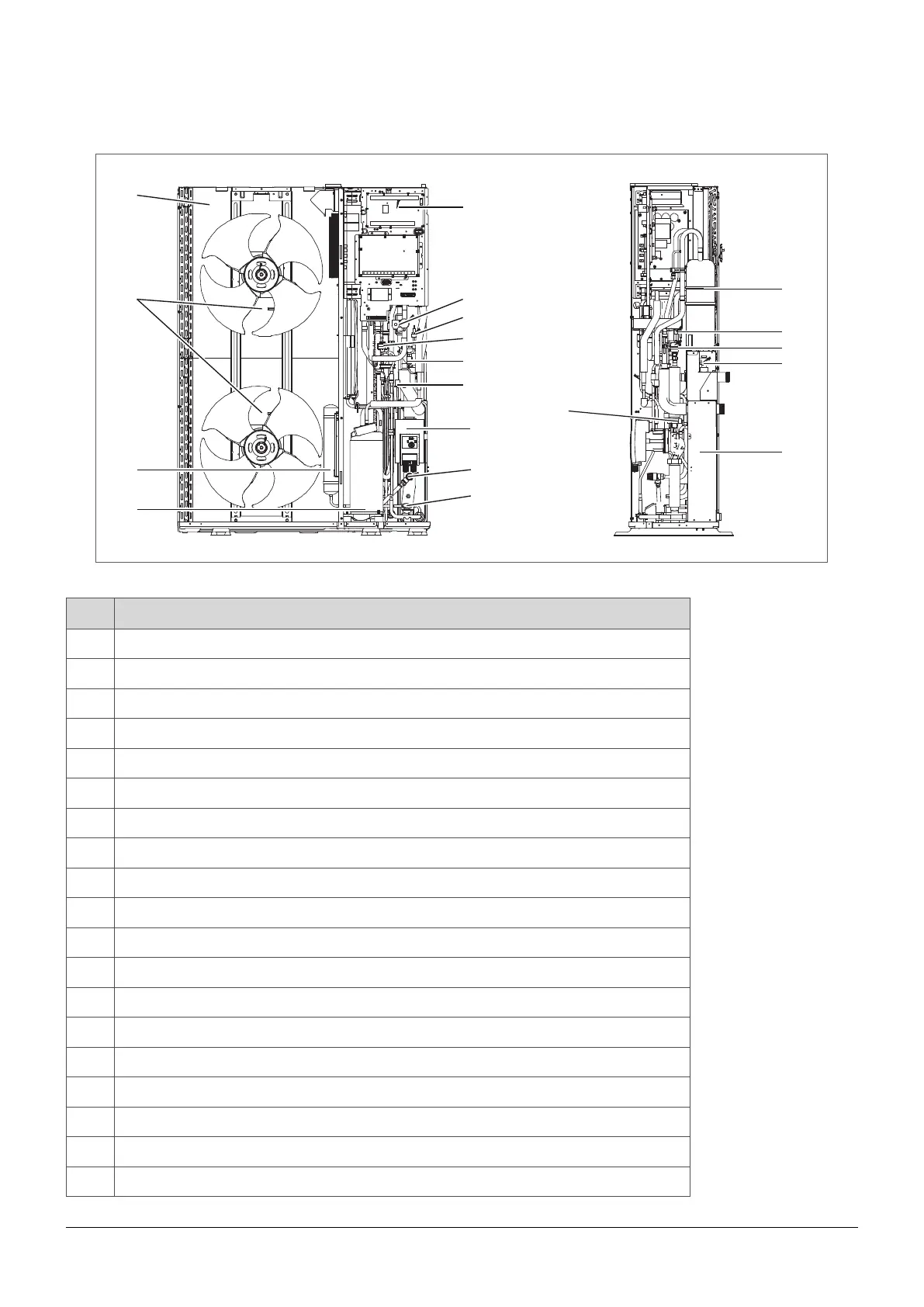

LAYOUT OF COMPONENTS
2.4 Sizes 9.1 - 10.1 - 12.1 - 14.1
13
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
N° Component
1
Main board
2
4-way valve
3
Pressure sensor
4
Electronic expansion valve
5
High pressure switch
6
Low pressure switch
7
Water circulator
8
Water pressure relief valve
9
Pressure gauge
10
Compressor inverter
11
Gas-suction separator
12
Fan motor
13
Source exchanger: Finned coil
14
Liquid receiver
15
Non return valve
16
Air relief valve
17
Water flow switch
18
Water side heat exchanger
19
Expansion vessel
