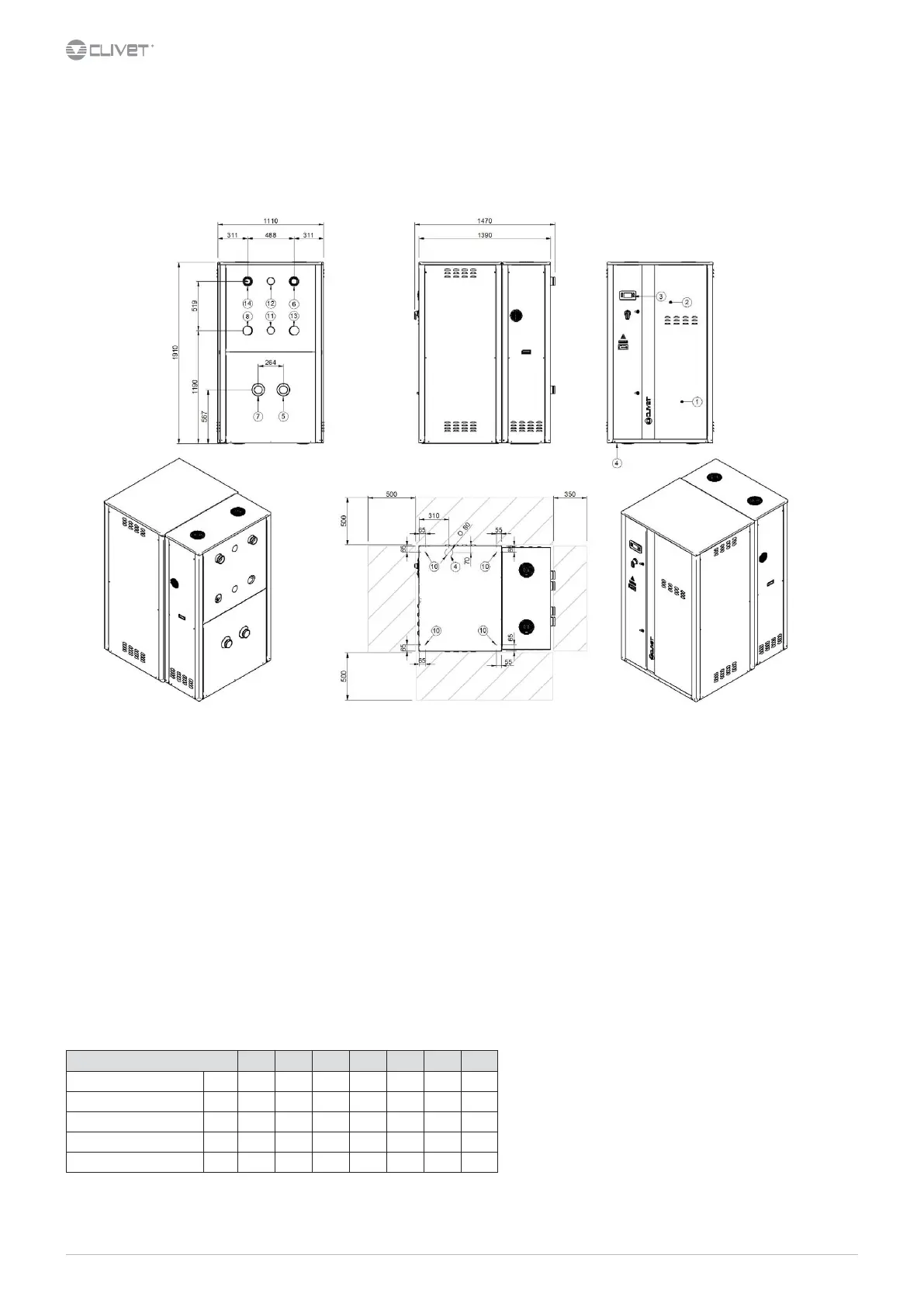

Dimensional - Geothermic version with hydronic unit option and
oversize enclosure (MOBMAG)
Size 27.2 - 50.2
1. Compressor compartment
2. Electrical panel
3. Unit control keypad
4. Power input
5. Hot side water return (3” Victaulic)
6. Hot side water supply (3” Victaulic)
7. Cold side water return (3” Victaulic)
8. Cold side water supply (3” Victaulic)
9. Functional spaces
10. Vibration damper mounts Ø 12,5
11. Partial recovery water return (2” Victaulic)
12. Partial recovery water supply (2” Victaulic)
13. Hot side water return without pumps (3” Victaulic)
14. Cold side water return without pumps (3” Victaulic)
Size 27.2 30.2 35.2 40.2 43.2 45.2 50.2
Length mm 1110 1110 1110 1110 1110 1110 1110
Height mm 1910 1910 1910 1910 1910 1910 1910
Depth mm 1390 1390 1390 1390 1390 1390 1390
Operating weight kg 597 600 675 747 829 778 875
Shipping weight kg 558 561 636 700 767 712 805
The weights refer to the unit equipped with the following options: cold side hydronic unit VARYFLOW+ (VARYC), hot side hydronic unit VARYFLOW+ (VARYH), oversize enclosure (MOBMAG)
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DAA8P27 2_50 2 MAG_GEO REV01
