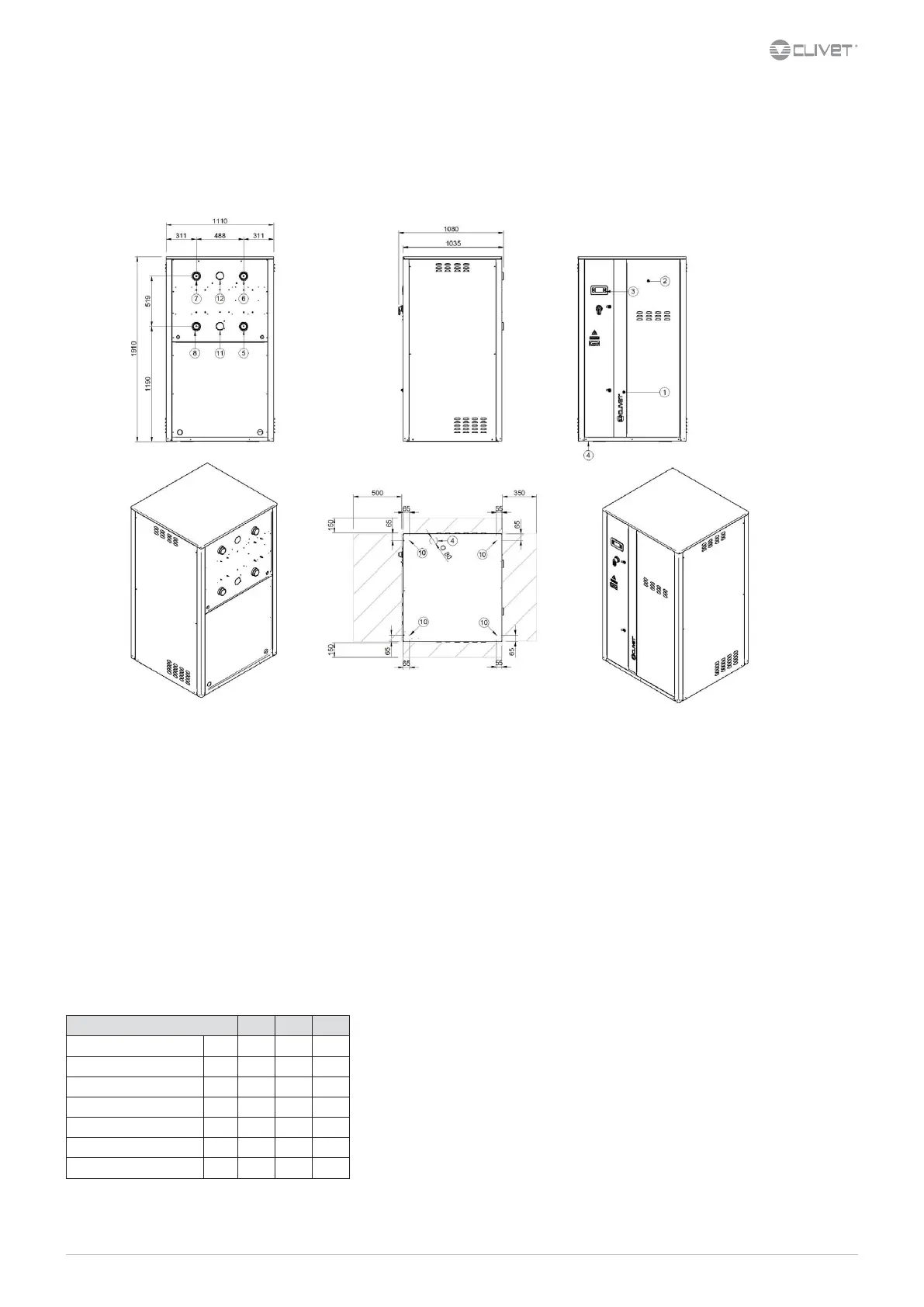

Dimensional - Version standard and geothermic without hydronic unit
Size 70.2 - 90.2
1. Compressor compartment
2. Electrical panel
3. Unit control keypad
4. Power input
5. Hot side water return (2” 1/2 Victaulic)
6. Hot side water supply (2” 1/2 Victaulic)
7. Cold side water return (2” 1/2 Victaulic)
8. Cold side water supply (2” 1/2 Victaulic)
9. Functional spaces
10. Vibration damper mounts Ø 12,5
11. Partial recovery water return (2” Victaulic)
12. Partial recovery water supply (2” Victaulic)
Size 70.2 80.2 90.2
Length mm 1110 1110 1110
Height mm 1910 1910 1910
Depth mm 1035 1035 1035
Operating weight - standard kg 771 809 890
Shipping weight - standard kg 749 781 860
Operating weight - Geothermic kg 829 841 922
Shipping weight - Geothermic kg 794 806 885
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
