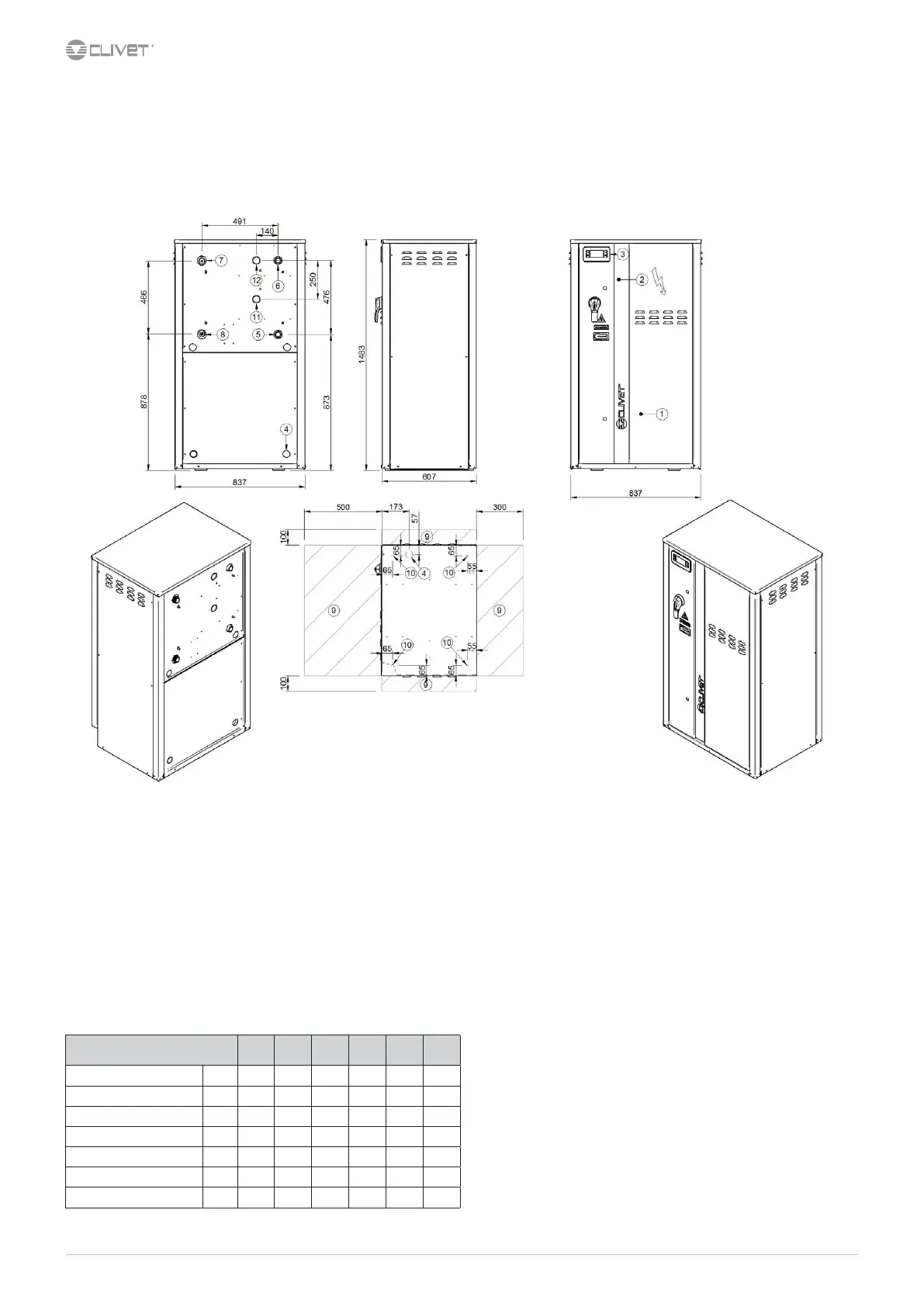

Dimensional - Standard and Geothermic version without hydronic unit
Sizes 10.2 - 22.2
1. Compressor compartment
2. Electrical panel
3. Unit control keypad
4. Power input
5. Hot side water return (1” 1/4 GAS)
6. Hot side water supply (1” 1/4 GAS)
7. Cold side water return (1” 1/4 GAS)
8. Cold side water supply (1” 1/4 GAS)
9. Functional spaces
10. Vibration damper mounts Ø 12,5
11. Partial recovery water return (1” 1/4 Victaulic)
12. Partial recovery water supply (1” 1/4 Victaulic)
Size 10.2 12.2 14.2 16.2 19.2 22.2
Length mm 837 837 837 837 837 837
Height mm 1483 1483 1483 1483 1483 1483
Depth mm 607 607 607 607 607 607
Operating weight - standard kg 212 212 225 276 295 308
Shipping weight - standard kg 206 206 216 263 277 295
Operating weight - Geothermic kg 218 218 225 287 302 315
Shipping weight - Geothermic kg 210 210 216 270 282 300
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DAA8P10 2_22 2 STD REV00
