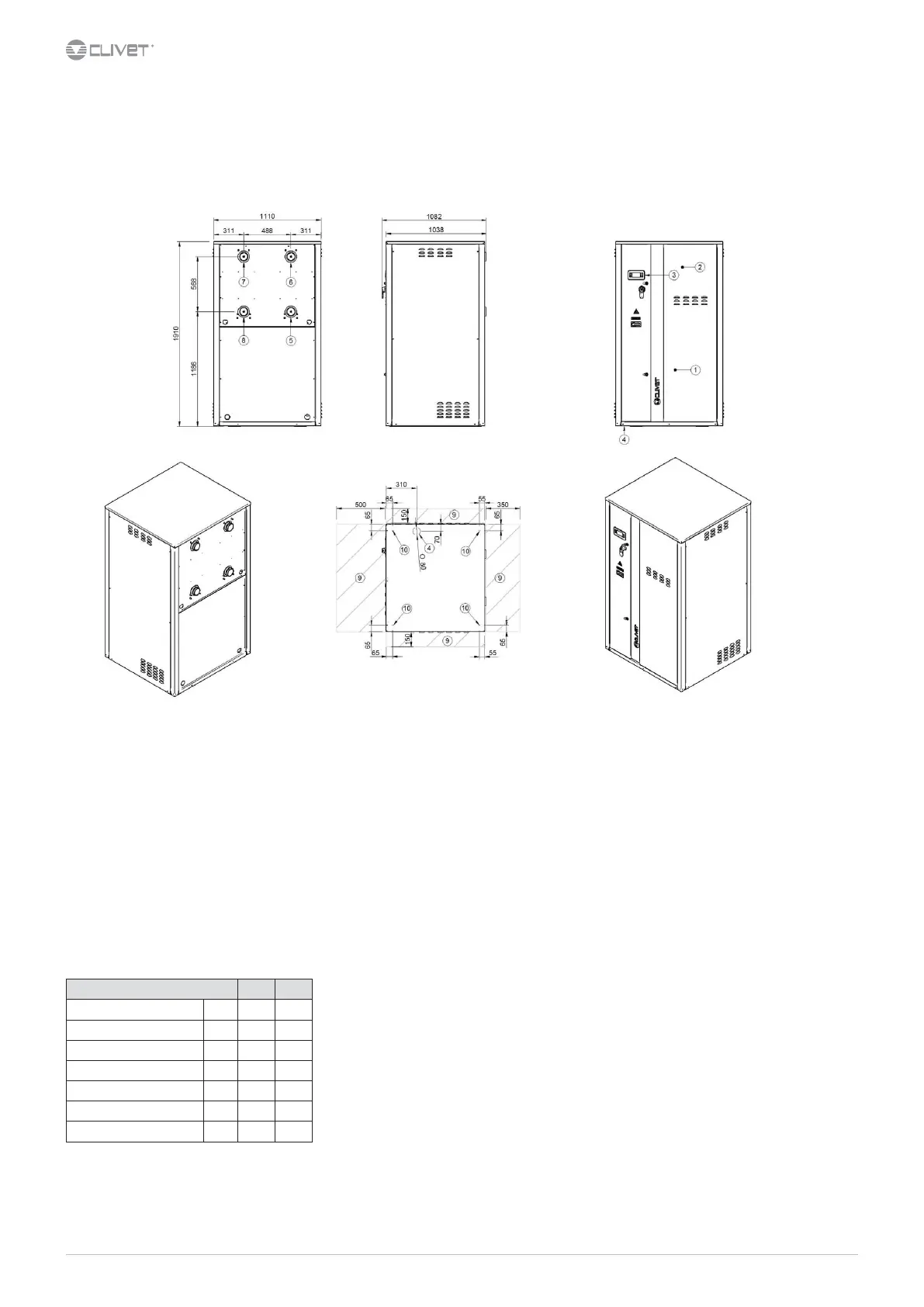

Dimensional - Version standard and geothermic without hydronic unit
Size 100.2 - 120.2
1. Compressor compartment
2. Electrical panel
3. Unit control keypad
4. Power input
5. Hot side water return (3” Victaulic)
6. Hot side water supply (3” Victaulic)
7. Cold side water return (3” Victaulic)
8. Cold side water supply (3” Victaulic)
9. Functional spaces
10. Vibration damper mounts Ø 12,5
Size 100.2 120.2
Length mm 1110 1110
Height mm 1910 1910
Depth mm 1038 1038
Operating weight - standard kg 1085 1205
Shipping weight - standard kg 1017 1131
Operating weight - Geothermic kg 1129 1271
Shipping weight - Geothermic kg 1050 1182
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DAA8P100 2_120 2 STD REV00

