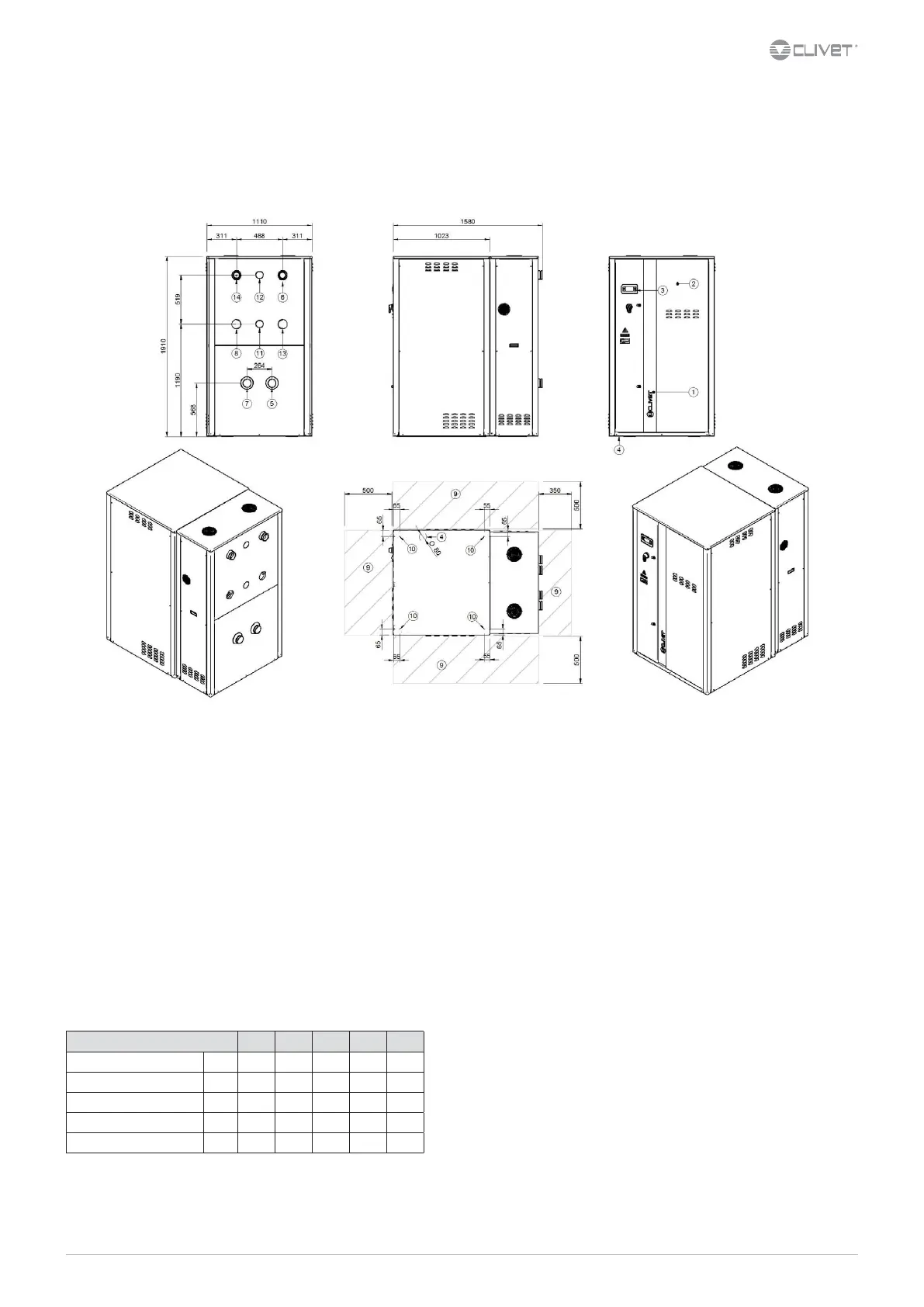

Dimensional - Geothermic version with hydronic unit option and
oversize enclosure (MOBMAG)
Size 55.2 - 90.2
1. Compressor compartment
2. Electrical panel
3. Unit control keypad
4. Power input
5. Hot side water return (3” Victaulic)
6. Hot side water supply (3” Victaulic)
7. Cold side water return (3” Victaulic)
8. Cold side water supply (3” Victaulic)
9. Functional spaces
10. Vibration damper mounts Ø 12,5
11. Partial recovery water return (2” Victaulic)
12. Partial recovery water supply (2” Victaulic)
13. Hot side water return without pumps (3” Victaulic)
14. Cold side water return without pumps (3” Victaulic)
Size 55.2 60.2 70.2 80.2 90.2
Length mm 1110 1110 1110 1110 1110
Height mm 1910 1910 1910 1910 1910
Depth mm 1580 1580 1580 1580 1580
Operating weight kg 935 950 1013 1025 1134
Shipping weight kg 861 881 933 945 1027
The weights refer to the unit equipped with the following options: cold side hydronic unit VARYFLOW+ (VARYC), hot side hydronic unit VARYFLOW+ (VARYH), oversize enclosure (MOBMAG)
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DAA8P55 2_90 2 MAG_GEO REV00
