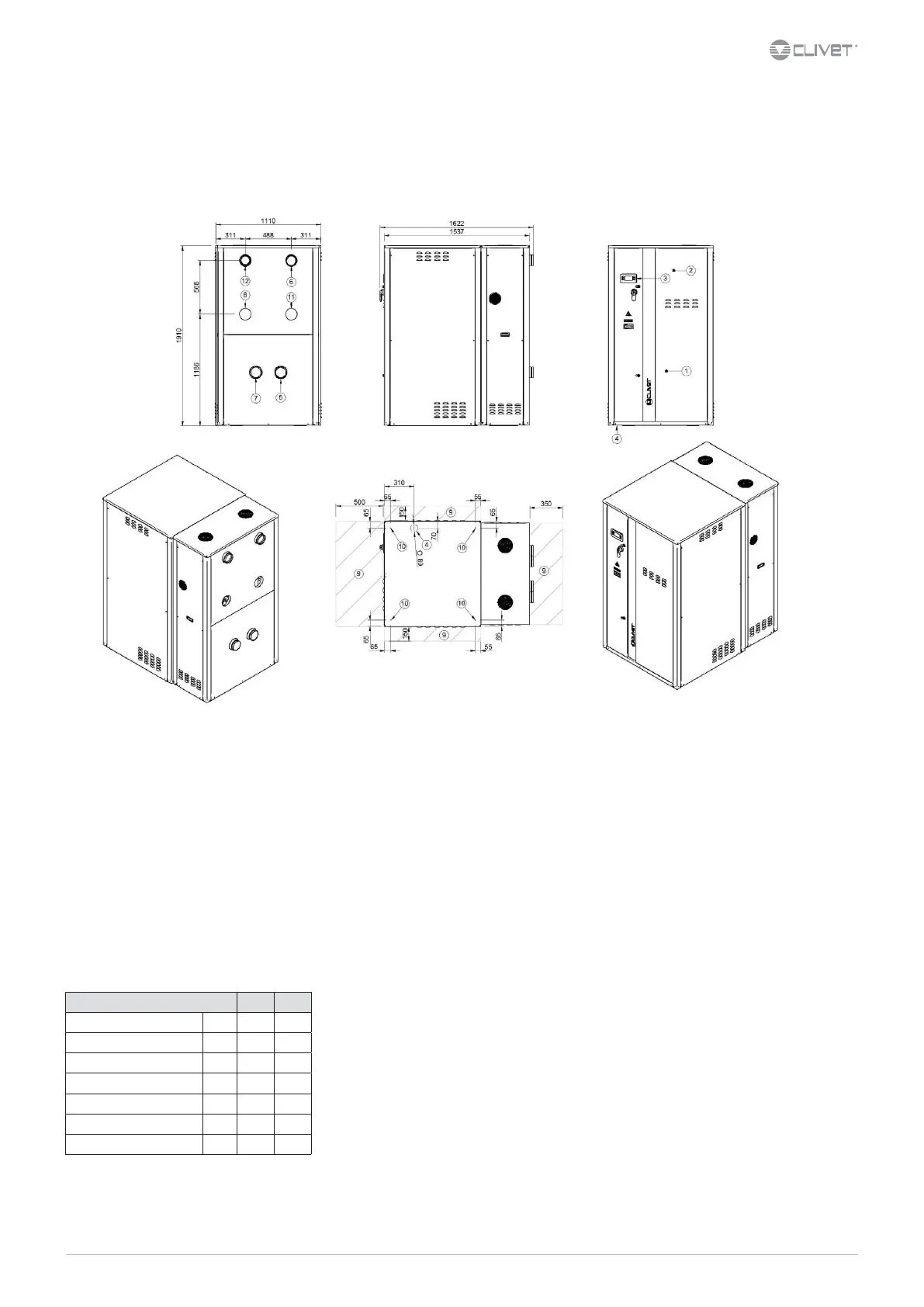

Dimensional - Version standard and geothermic with hydronic unit
option and oversize enclosure (MOBMAG)
Size 100.2 - 120.2
1. Compressor compartment
2. Electrical panel
3. Unit control keypad
4. Power input
5. Hot side water return (4” Victaulic)
6. Hot side water supply (4” Victaulic)
7. Cold side water return (4” Victaulic)
8. Cold side water supply (4” Victaulic)
9. Functional spaces
10. Vibration damper mounts Ø 12,5
11. Hot side water return without pumps (4” Victaulic)
12. Cold side water return without pumps (4” Victaulic)
Size 100.2 120.2
Length mm 1110 1110
Height mm 1910 1910
Depth mm 1537 1537
Operating weight - standard kg 1302 1422
Shipping weight - standard kg 1163 1277
Operating weight - Geothermic kg 1346 1488
Shipping weight - Geothermic kg 1196 1328
The weights refer to the unit equipped with the following options: cold side hydronic unit VARYFLOW+ (VARYC), hot side hydronic unit VARYFLOW+ (VARYH), oversize enclosure (MOBMAG)
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DAA8P100 2_120 2 MAG REV00
