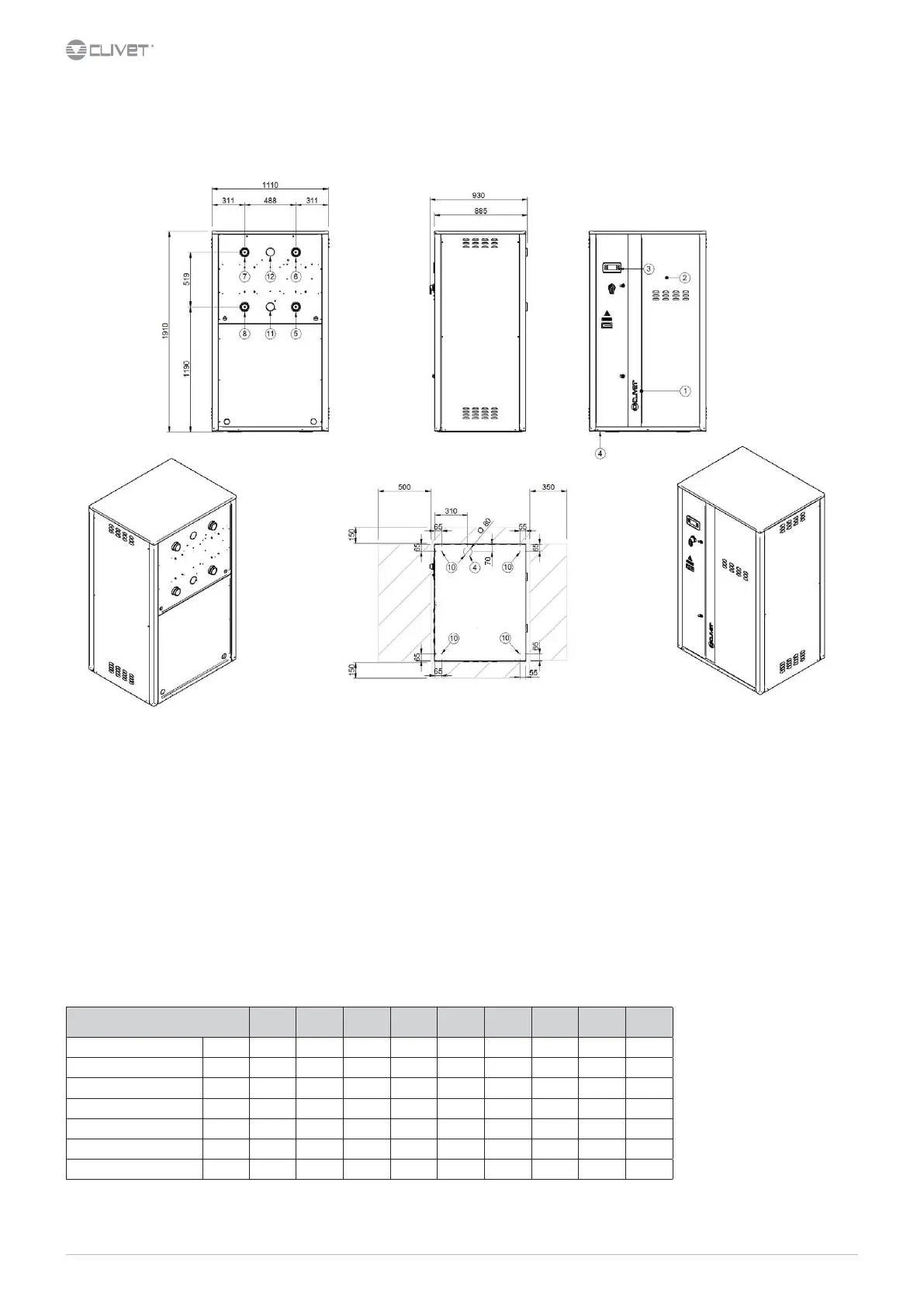

Dimensional - Standard and Geothermic version without hydronic unit
Sizes 27.2 - 60.2
1. Compressor compartment
2. Electrical panel
3. Unit control keypad
4. Power input
5. Hot side water return (2” 1/2 Victaulic)
6. Hot side water supply (2” 1/2 Victaulic)
7. Cold side water return (2” 1/2 Victaulic)
8. Cold side water supply (2” 1/2 Victaulic)
9. Functional spaces
10. Vibration damper mounts Ø 12,5
11. Partial recovery water return (2” Victaulic)
12. Partial recovery water supply (2” Victaulic)
Size 27.2 30.2 35.2 40.2 43.2 45.2 50.2 55.2 60.2
Length mm 1110 1110 1110 1110 1110 1110 1110 1110 1110
Height mm 1910 1910 1910 1910 1910 1910 1910 1910 1910
Depth mm 885 885 885 885 885 885 885 885 885
Operating weight - standard kg 421 424 510 557 622 572 670 700 733
Shipping weight - standard kg 418 421 505 548 613 560 653 683 717
Operating weight - Geothermic kg 452 455 529 594 659 607 705 757 772
Shipping weight - Geothermic kg 442 445 520 576 642 587 680 728 748
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DAA8P27 2_60 2 STD REV01
