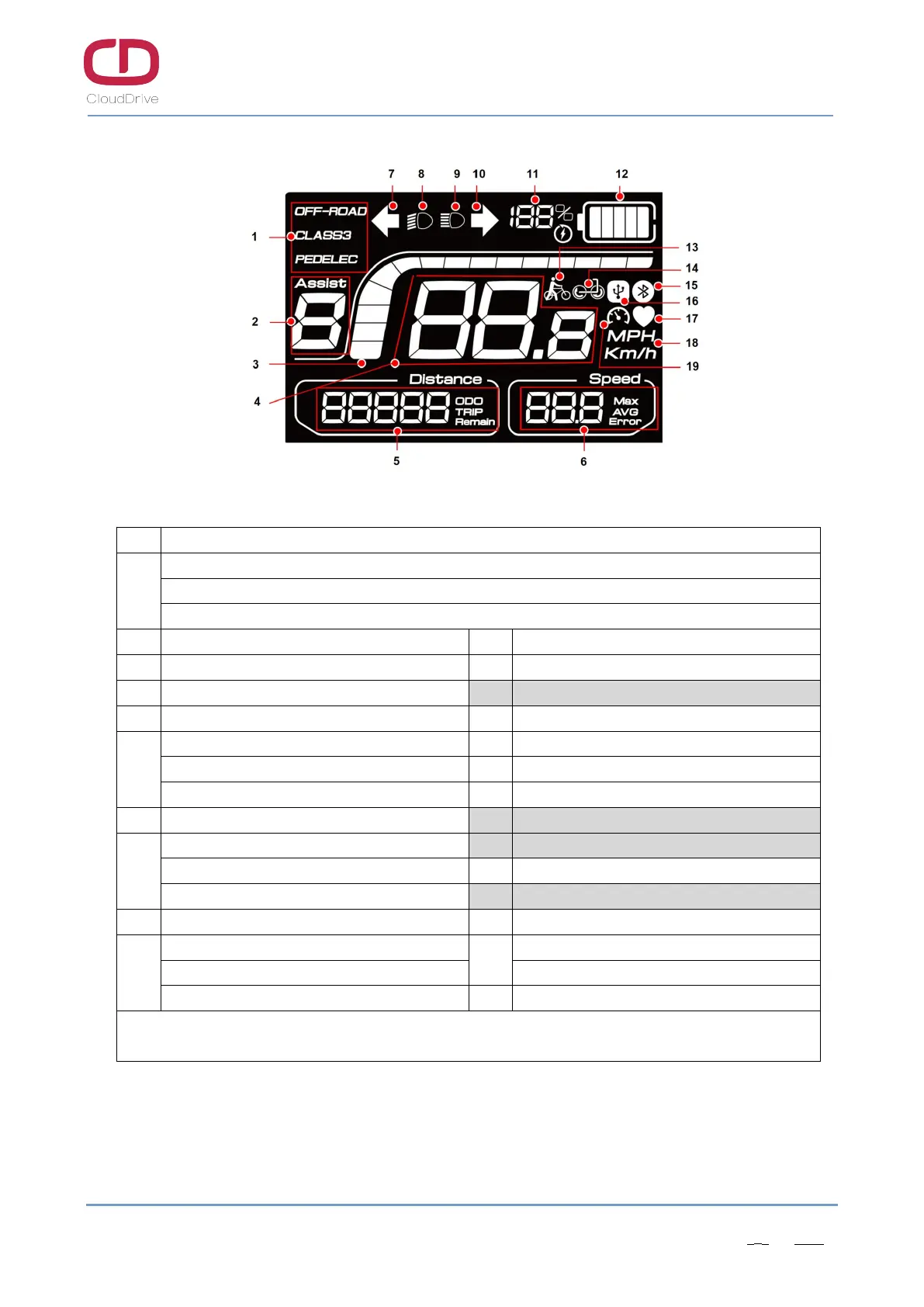

Figure6-1 Functional icons with mark number
1. Cycling Modes
PEDELEC: Max. Throttle speed limit 32Km/h, Max. PAS speed limit 25Km/h
CLASS3: Max. Throttle speed limit 32Km/h, Max. PAS speed limit 45Km/h
OFF-ROAD: Max. Throttle speed limit 52Km/h, Max. PAS speed limit 52Km/h
2. PAS Level 7. Left-turn Indicator
Level 0 to level 5 8. *Low Beam
3. Real-time Motor Output Power 9. *High Beam
4. Information Indicated Area 10. Right-turn Indicator
Real-time speed indication 11. Battery Percentage Indication
Wheel size setting indication 12. Battery Capacity Indication
Version information indication 13. 6Km/h Walk Assistance
5. Distance Data Indicated Area 14. *Dual Driving Function
ODO: Total distance data 15. *Bluetooth Function
TRIP: Single-time distance data 16. USB Charging Function
Remain: Remained distance data 17. *Heartbeat Monitor
6. Speed & Error Indicated Area 18. Speed Unit
Max: Maximum speed data MPH: Mile per hour
AVG: Average speed data Km/h: Kilometer per hour
Error: Error codes 19. Cruise Mode
REMARK: a. Low beam is used as headlight in this version;
b. The functions of item 9,14,15,17 etc, are not available in this version.
Table3 Functional icons definition
