25.2 DM-1 Dual Microphone Input Module
The Cloud DM-1 is a remotely located active module with two balanced microphone inputs
via 3 pin female XLR connectors. Each input has a level control and overall equalisation is
provided by tamperproof treble and bass controls. A ‘music ducking’ switch provides priority
over the main system music if required. Modules can be linked when wired in a ‘daisy chain’
format (see section 24.3). Use 8 core screened cable to link the DM-1 to the facility input and
6 core screened cable when wiring more modules in the ‘daisy chain’ format.
Important note: Refer to Section 19 before installing a DM-1

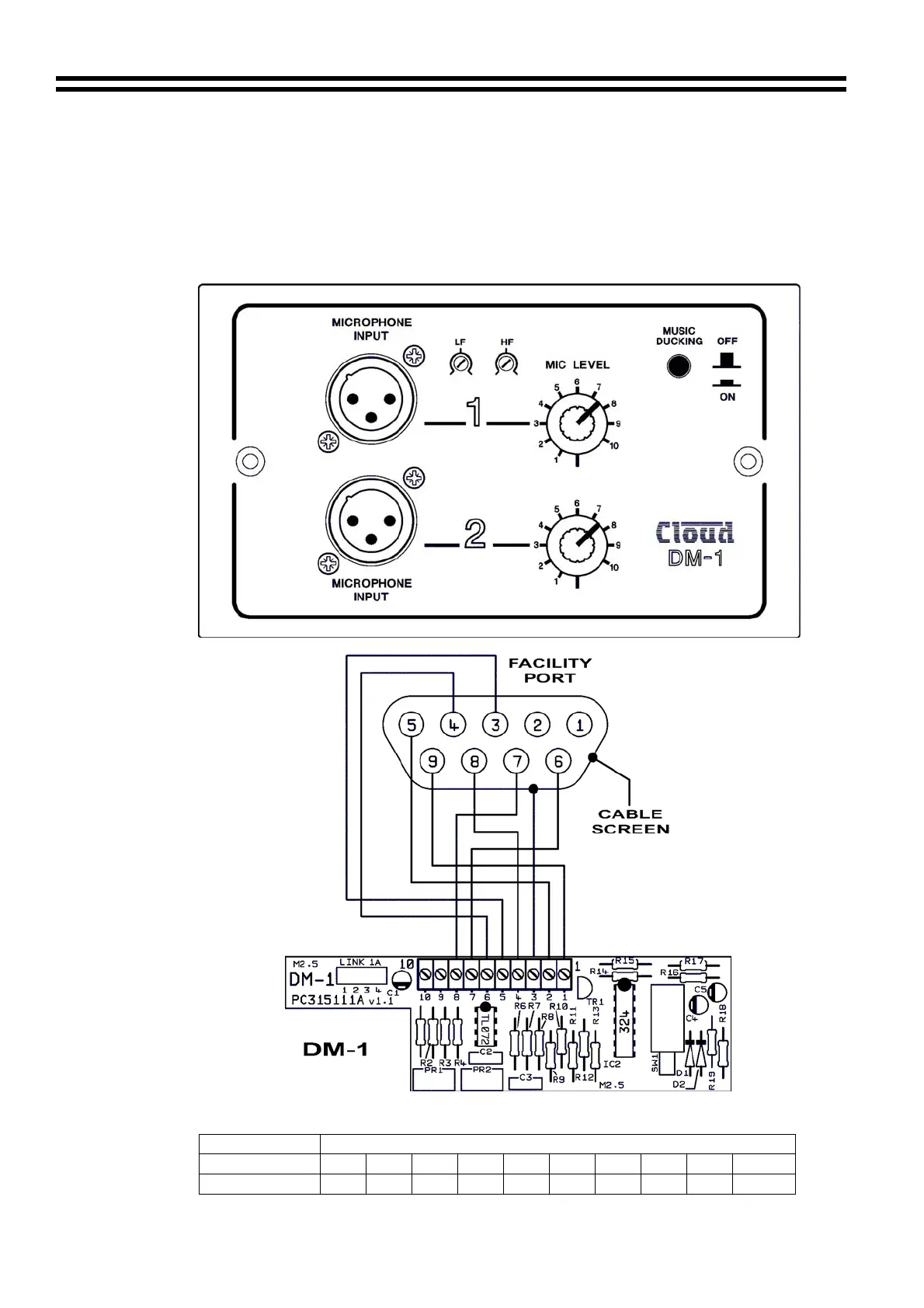

DM-1 CONNECTION TABLE
CONNECTOR PIN NUMBER
9 PIN SUB D 1 2 3 4 5 6 7 8 9 SHELL
DM-1 Terminals N/C N/C 5 6 2 7 8 4 1 3
