C.M.C. n.v. -
Airmaster R1 installation guide – base
unit – V1.1 – MANY0317A.00
Page 6 of
41

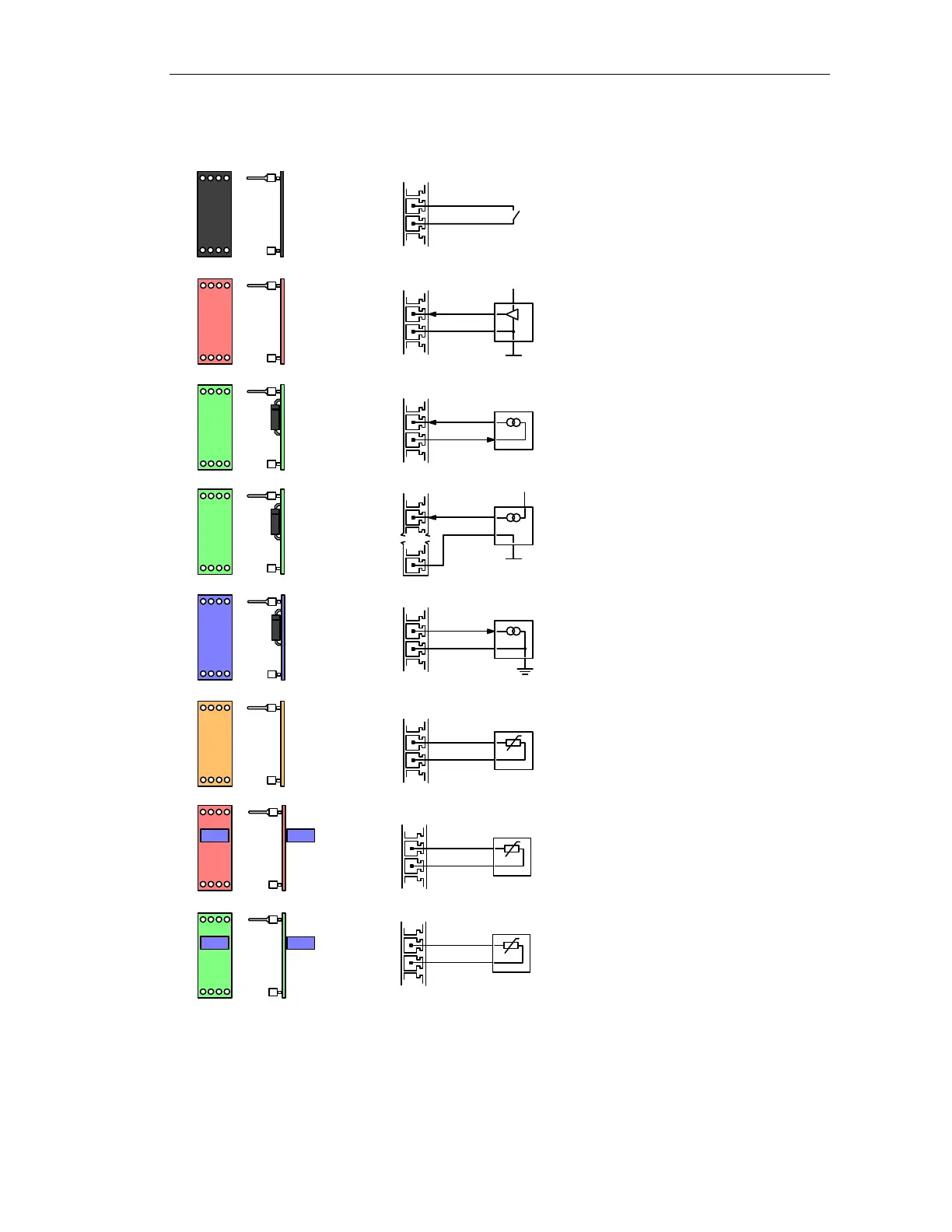

2.2 Analog conditioning modules
1
black
Digital
2
red
Voltage
0-10Vdc
3
green
4-20mA
Loop Pow
ered
4
blue
4-20mA
Earth Referenced
5
copper
KTY Temperature
-10°
C to +132°
C
6
red
PT100 Temperature
-50°
C to +250°
C
7
green
PT1000 Temperature
-50°
C to +250°
C
3
green
4-20mA
Self Powered
AI
C
AI
C
+V
+V
AI
C
signal
+24Vdc
AI
A GND
10-32
Vdc
signal
AI
C
signal
GND
AI
C
AI
C
AI
C
X01-16
+
-
+
-
+
-
A GND
A GND
A GND
A GND
A GND
5
7
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
4
2 Models
5
Basic Versions
5
Analog Conditioning Modules
6
Option Modules
7
3 Technical Specifications
8
General Technical Data
8
Temperature Range
8
Resistance to Vibration and Shock
9
Protection Degree
9
4 Safety
9
5 Electromagnetic Compatibility
10
6 Installation
12
Cable Connector Types
12
Power Supply and Fusing
12
General
13
For the American Market (UL)
13
For the European Market (CE)
14
Analogue Inputs
15
ACM Type 1: Digital Input on Analogue Connector
15
ACM Type 2: 0-10Vdc Voltage Input
15
ACM Type 3: 4-20Ma Input (Standard)
16
ACM Type 4: 4-20Ma Earth Referenced (Special Type)
16
ACM Type 5: KTY Temperature Sensor (-10
17
ACM Type 6: PT100 Temperature Sensor (-50
17
ACM Type 7: PT1000 Temperature Sensor (-50
18
Digital Inputs
19
The Emergency Stop Contact Input
20
The Contact Inputs
20
The PTC Inputs
20
Relay Outputs
21
Analog Outputs
23
Communication
23
RS485 Port1 (Standard)
23
RS485 Port2 (Option)
23
CAN™ Port (Option)
24
RS232 Port (Option)
24
RS-485 Communication with a Standard HMI
25
7 Mounting of the Base Unit
27
8 Putting into Operation
28
9 Configuration
28
10 Trouble Shouting
28
Appendix 1: Dimensions and Mounting of Base Unit
29
Appendix 2 : Connectors for Machine Wiring
35
Connector X01: HMI + Analogue Inputs + Analogue Outputs
36
Connector X02: Relays
36
Connector X03: Digital Inputs
37
Connector X04: RS232 (Optional)
38
Connector X05: CAN (Optional)
38
Connectors X06 and X07: RS485 (1)
38
Connector X08: RS485 (2) (Optional)
38
Connector X10: Supply
39
Appendix 3 : UL508 RATINGS / CONDITIONS
40
