1.12 Figures of Critical Parameters

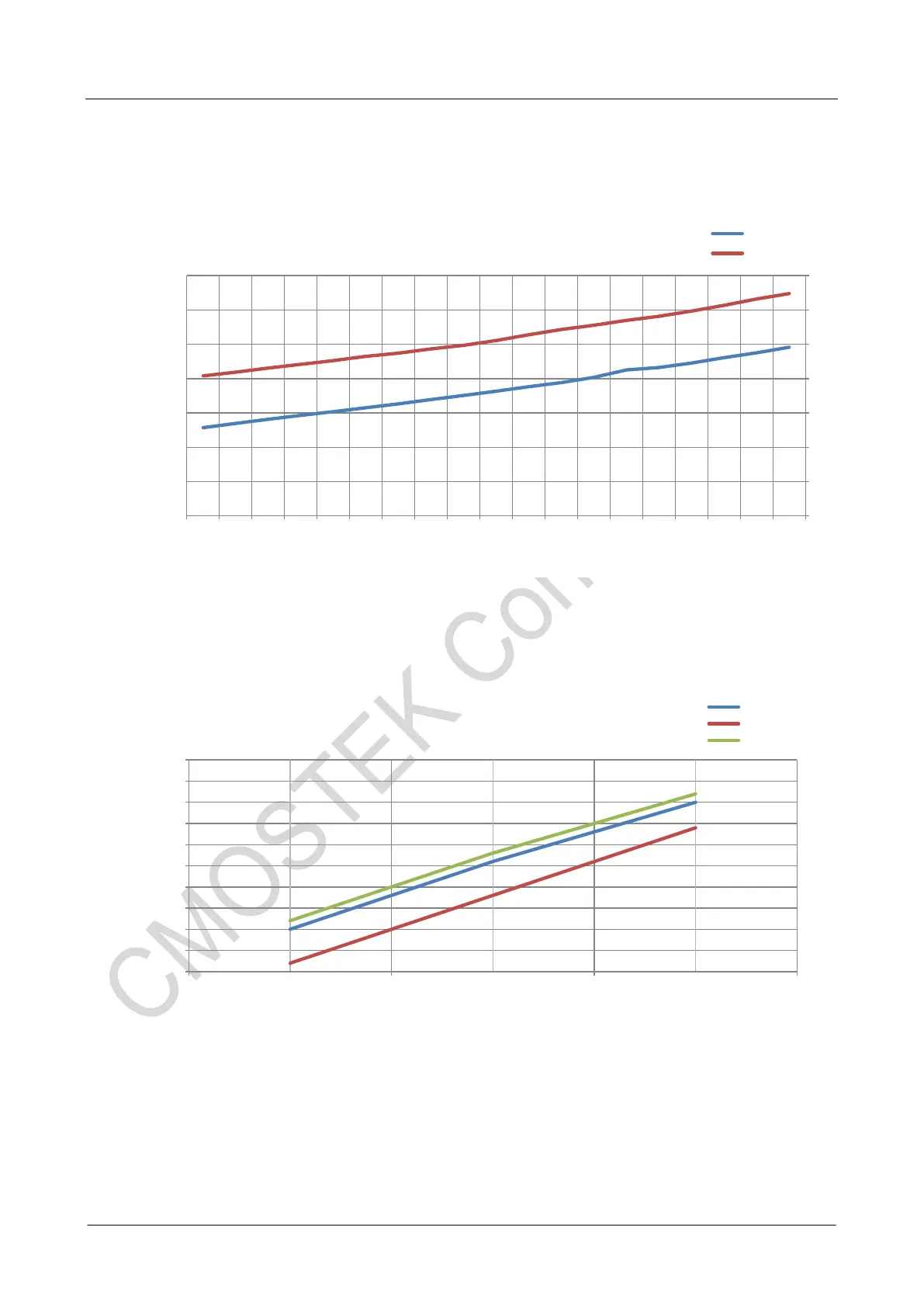

1.12.1 Rx Current VS. Supply Voltage
Testing Condition: Freq = 434MHz / 868MHz, Fdev = 10KHz, BR = 10Kbps
1.12.2 Rx Current VS. Voltage Temperature
Test Condition: Freq = 434MHz,Fdev = 10KHz, BR = 10Kbps
7.40
7.60
7.80
8.00
8.20
8.40
8.60
8.80
3.6
3.5
3.4
3.3
3.2
3.1
3.0
2.9
2.8
2.7
2.6
2.5
2.4
2.3
2.2
2.1
2.0
1.9
1.8
Current Comsumption(mA)
Supply Voltage(V)
Rx Current vs. Supply Voltage
434MHz
868MHz
7.0
7.3
7.5
7.8
8.0
8.3
8.5
8.8
9.0
9.3
9.5
-40
25
85
Current Consumption(mA)
Temperature(℃)
Rx Current vs. Volt-Temp
3.3V
1.8V
3.6V
