3.2 RF Switch Type Schematic

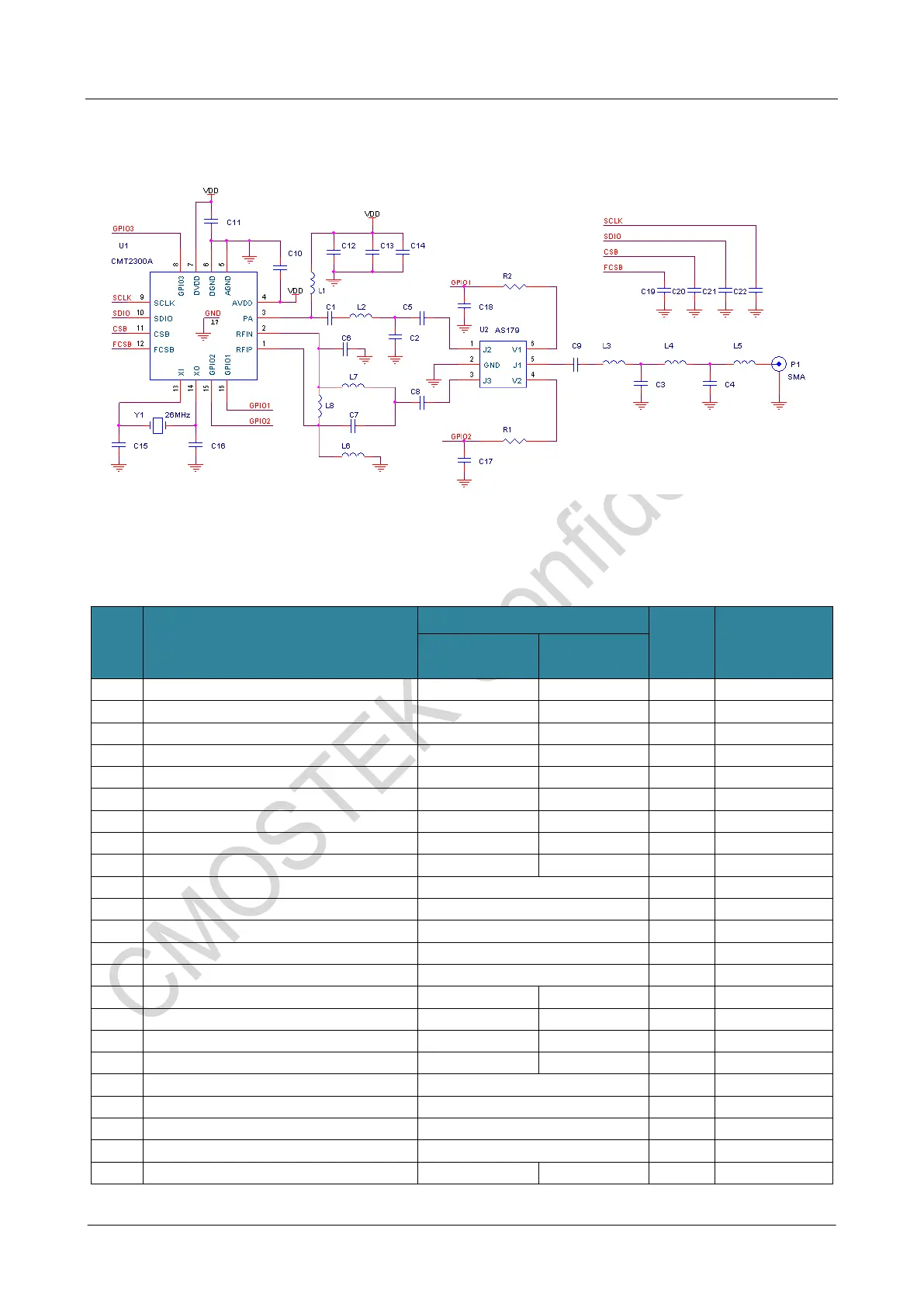

Figure 3. RF switch type application schematic diagram
Table 15. RF switch type application BOM
No.
Descriptions
Values
Unit
Supplier
434 MHz
+20 dBm
868 /915 MHz
+20 dBm
C1
±5%, 0402 NP0, 50 V
15
15
pF
C2
±5%, 0402 NP0, 50 V
10
3.9
pF
C3
±5%, 0402 NP0, 50 V
8.2
2.7
pF
C4
±5%, 0402 NP0, 50 V
8.2
2.7
pF
C5
±5%, 0402 NP0, 50 V
18nH
220
pF
C6
±5%, 0402 NP0, 50 V
4.7
2
pF
C7
±5%, 0402 NP0, 50 V
4.7
2
pF
C8
±5%, 0402 NP0, 50 V
220
220
uF
C9
±5%, 0402 NP0, 50 V
220
220
pF
C10
±5%, 0402 NP0, 50 V
0.1
0.1
uF
C11
±5%, 0402 NP0, 50 V
0.1
0.1
uF
C12
±5%, 0402 NP0, 50 V
470
470
pF
C13
±5%, 0402 NP0, 50 V
2200
2200
pF
C14
±5%, 0402 NP0, 50 V
4.7
4.7
uF
C15
±5%, 0402 NP0, 50 V
24
24
pF
C16
±5%, 0402 NP0, 50 V
24
24
pF
C17
±5%, 0402 NP0, 50 V
10
10
pF
C18
±5%, 0402 NP0, 50 V
10
10
pF
C19
±5%, 0402 NP0, 50 V
27
pF
C20
±5%, 0402 NP0, 50 V
27
pF
C21
±5%, 0402 NP0, 50 V
27
pF
C22
±5%, 0402 NP0, 50 V
27
pF
L1
±5%, 0603 Multilayer chip inductor
180
100
nH
Sunlord SDCL
