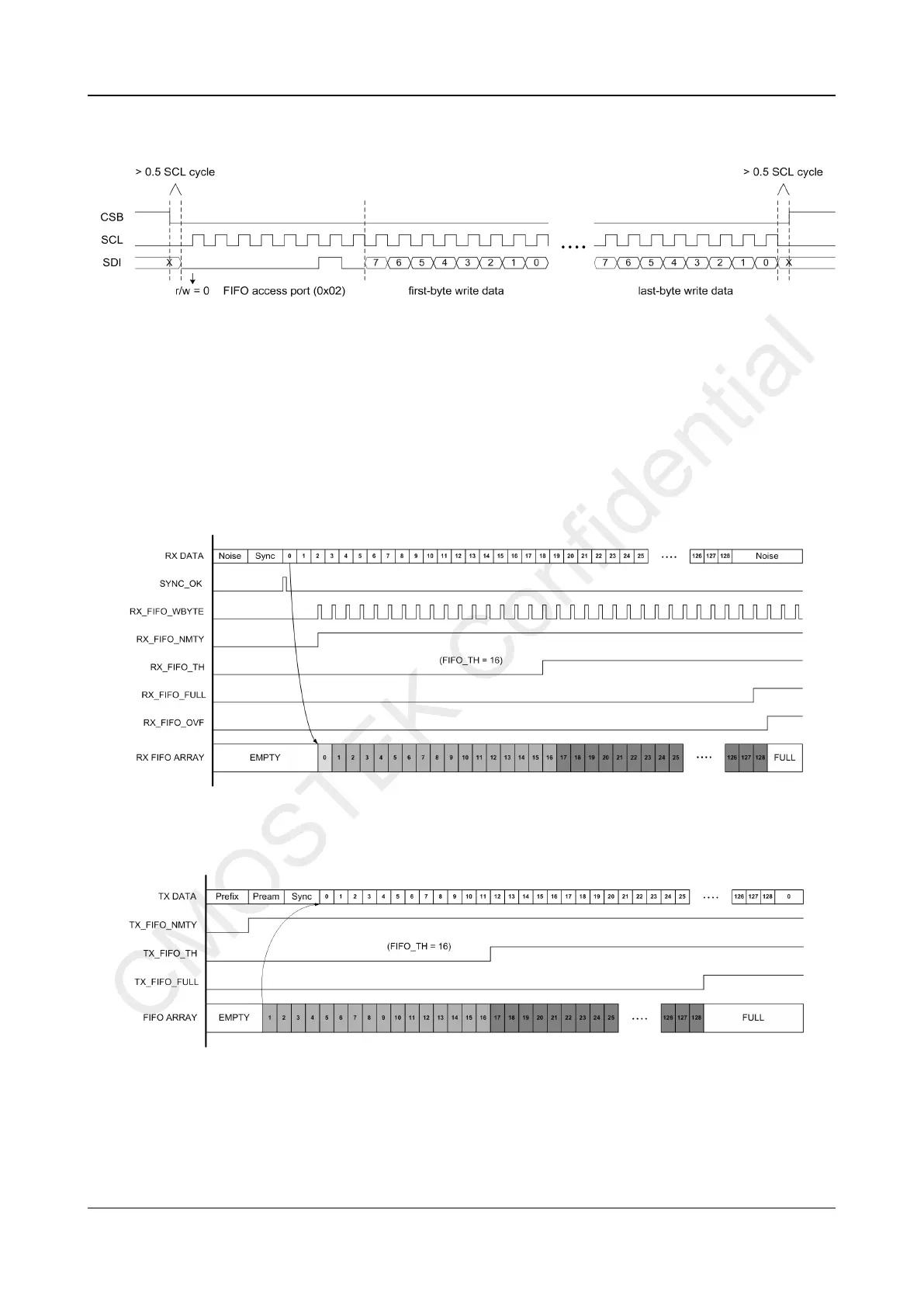

Figure 20. SPI (3-wire) Write FIFO Timing
5.2.2 FIFO Associated Interrupt
CMT2310A provides comprehensive interrupt sources associated with the FIFO. The interrupt timing of Tx and Rx FIFO is shown
in the figures below.
Figure 21. CMT 2310A RX FIFO Interrupt Timing
Figure 22. CMT 2310A TX FIFO Interrupt Timing
