Section 4 Maintenance & Service
4D-4Re-installingtheUVLamp(s)
NOTE: Make sure to handle the UV lamp as described in SECTION 4D-1.
1. TURN OFF YOUR PUMP IF YOU HAVE NOT DONE SO.
2. Slowly press the UV Lamp fully past the Lamp Retainer tabs and
into the Quartz Tube until it is seated on the Lamp Cushion in the
bottom of the tube.
3. Connect the Lamp Connector to the connector on the Ballast
NOTE: To replace a UV Lamp, follow only SECTIONS 4D-1 and 4D-4.
ENVIRONMENTAL NOTICE: Hg-Lamp CONTAINS MERCURY.
Manage in accordance with disposal laws. See: www.lamprecycle.org

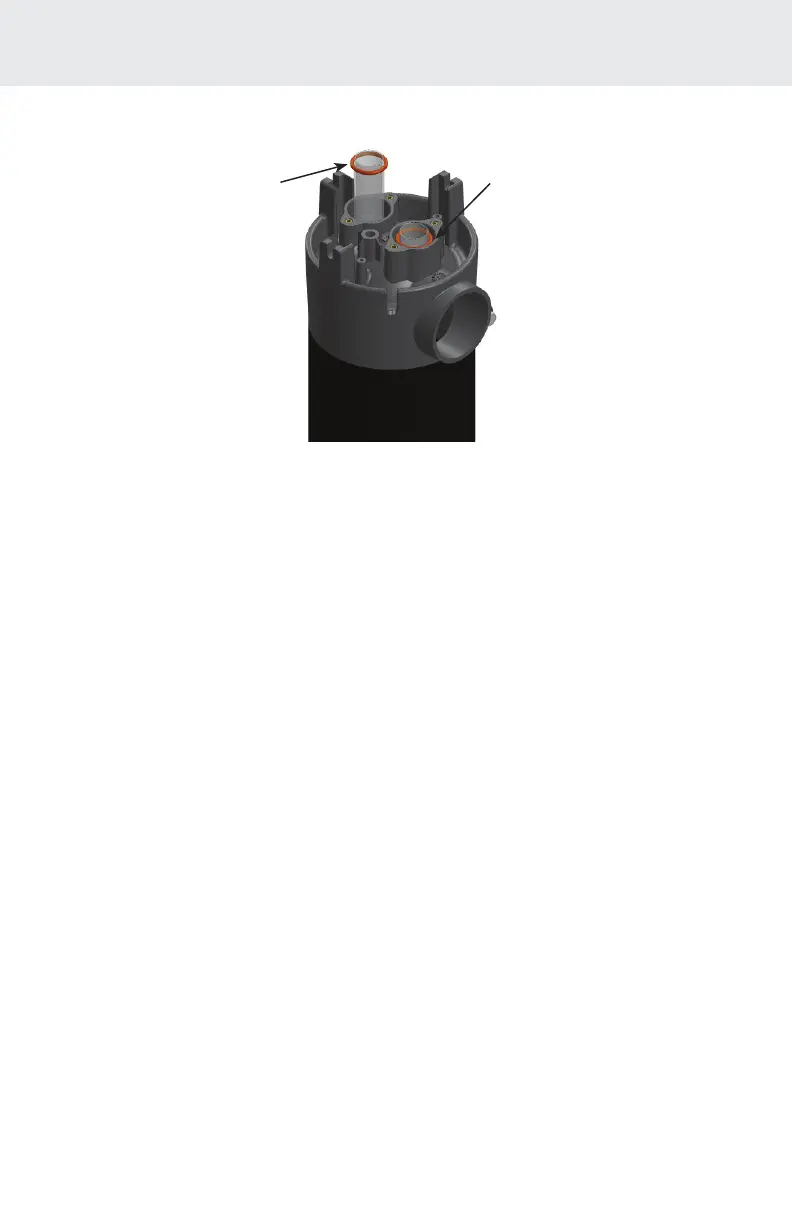

Figure8:UVQuartzTubeInstallation
IMPROPERLY
SEATED QUARTZ
TUBE
PROPERLY
SEATED QUARTZ
TUBE
