C32 (Rev. 5) User Manual
___________________________________________________________________________
User’s Manual Page 13

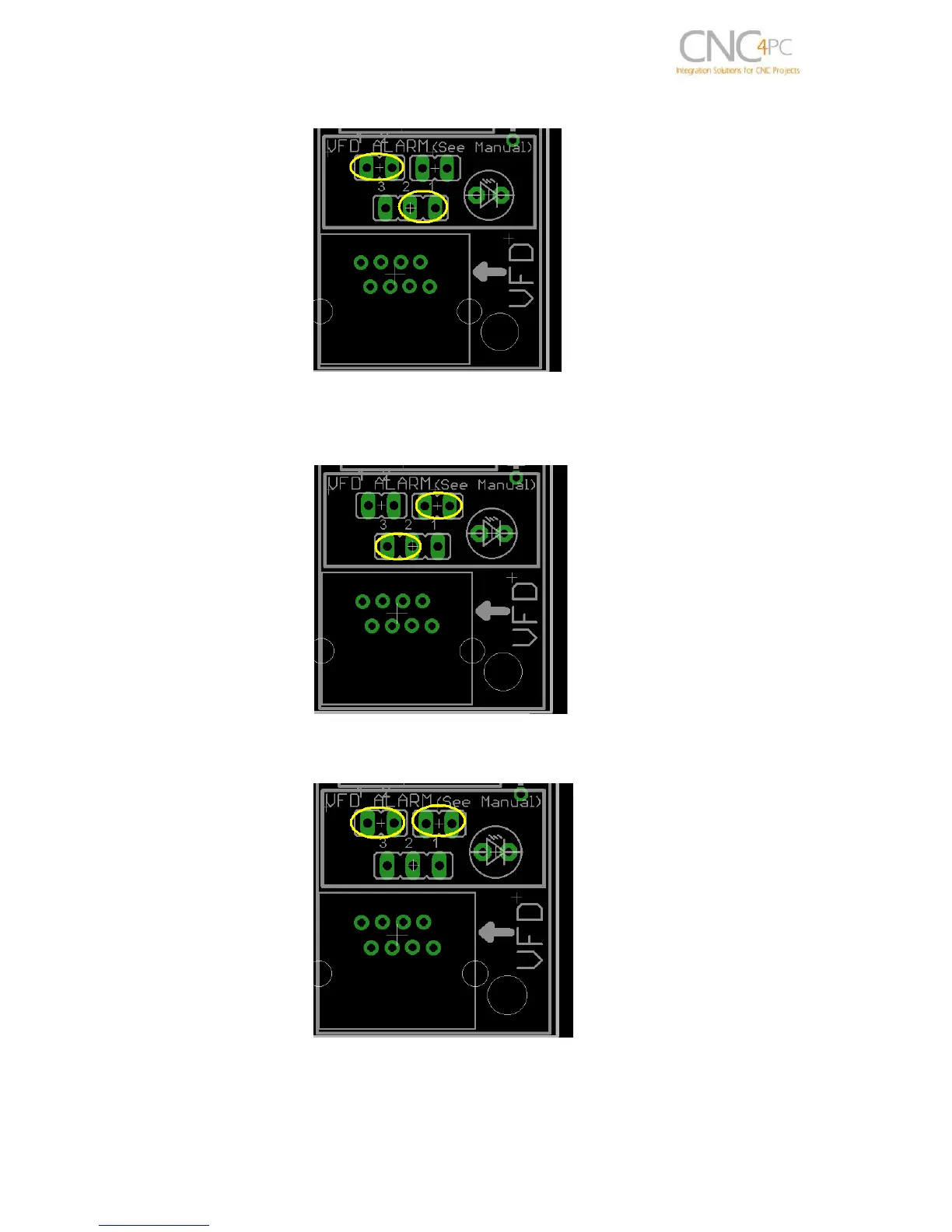

When the used alarm signal is a positive voltage referenced to “analog GND”, set
jumper as shown below
If the VFD alarm monitoring function is not performed, set jumper as shown below
