User’s Manual Page 22
For a 24V or 12V sensor, the recommended value for the external resistor R1 is 4.7K
Ohm.

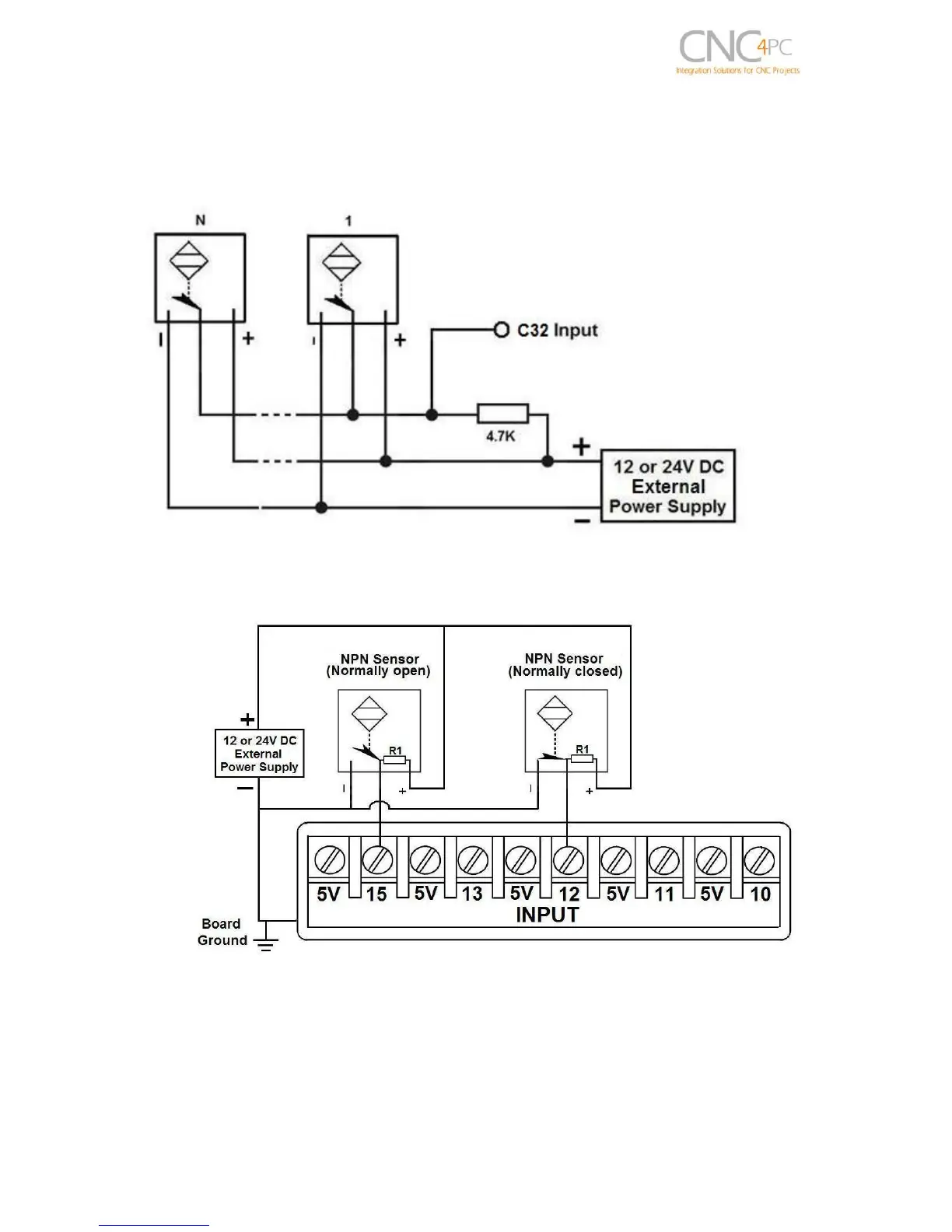

Wiring diagram to connect in parallel NPN open collector proximity sensors
Wiring diagram to connect NPN proximity sensors with internal pull up resistor
